SDCS-PIN-51-COAT 3ADT220090R0006 ABB Measuring Card REV J for DCS800
SDCS-PIN-51-COAT 3ADT220090R0006 ABB Measuring Card REV J for DCS800
The ABB SDCS-PIN-51-COAT, with official product code 3ADT220090R0006, is a conformal-coated interface printed circuit board (PCB) designed for use in ABB’s AC 800M programmable automation controllers (PACs) and System 800xA distributed control systems (DCS). This specialized module serves as a critical communication and signal routing interface between the controller CPU and I/O modules, field devices, or remote racks—ensuring reliable data exchange in electrically noisy or harsh industrial environments such as power plants, oil & gas facilities, mining operations, and heavy manufacturing.
The “COAT” suffix indicates that the board is factory-treated with a protective conformal coating, which significantly enhances resistance to moisture, dust, chemical vapors, and conductive contaminants—making it ideal for applications requiring extended reliability in high-humidity, corrosive, or washdown-prone settings.
Product Overview: ABB SDCS-PIN-51-COAT (3ADT220090R0006)
| Manufacturer | ABB Process Automation / Measurement & Analytics |
| Product Family | AC 800M Controller Hardware / System 800xA |
| Module Name | Interface Board – SDCS-PIN-51 with Conformal Coating |
| ABB Order Code | 3ADT220090R0006 |
| ABB Legacy Part Number | SDCS-PIN-51-COAT |

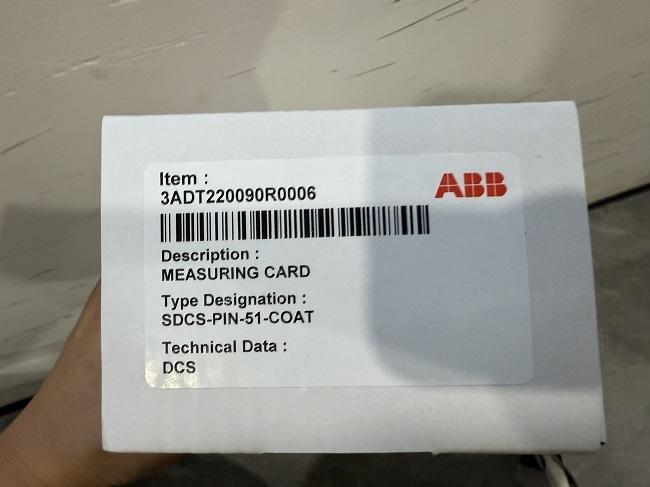

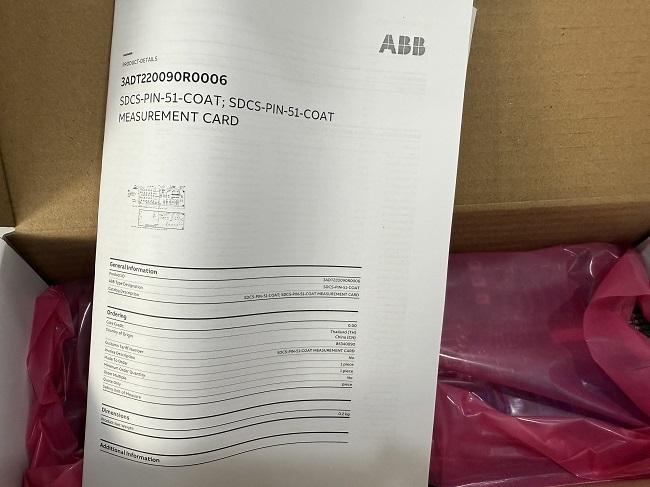

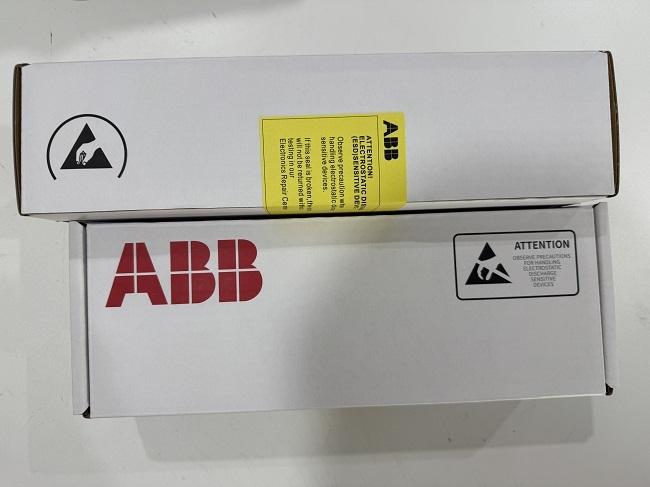

Product Images
