3500/05-01-02-02-00-01 Bently Nevada 19 inch 3500/05 System Rack Full-Size for EIA Rack
3500/05-01-02-02-00-01 Bently Nevada 19 inch 3500/05 System Rack Full-Size for EIA Rack
The Bently Nevada 3500/05-01-02-02-00-01 is a Transient Data Interface (TDI) module designed for the 3500 Rack-based Machinery Protection System, enabling high-speed capture, storage, and transmission of dynamic vibration and process data during critical machinery events such as startups, shutdowns, trips, or alarms. As part of Bently Nevada’s industry-leading condition monitoring platform, this intelligent module plays a vital role in root cause analysis, forensic diagnostics, and predictive maintenance for turbines, compressors, pumps, and other critical rotating equipment across oil & gas, power generation, and heavy industrial sectors.
Unlike standard monitoring modules that provide averaged or trended data, the 3500/05 TDI captures waveform-level transient data at up to 102.4 kS/s per channel, preserving the true dynamic behavior of machinery during rapid changes. This capability is essential for identifying subtle faults like rubs, cracks, fluid-induced instabilities, or resonance crossings that may be missed by conventional protection systems.
Product Overview: Bently Nevada 3500/05-01-02-02-00-01
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Module Type | Transient Data Interface (TDI) |
| Full Model Number | 3500/05-01-02-02-00-01 |
| Function | Captures and buffers high-resolution waveform data during triggered events |

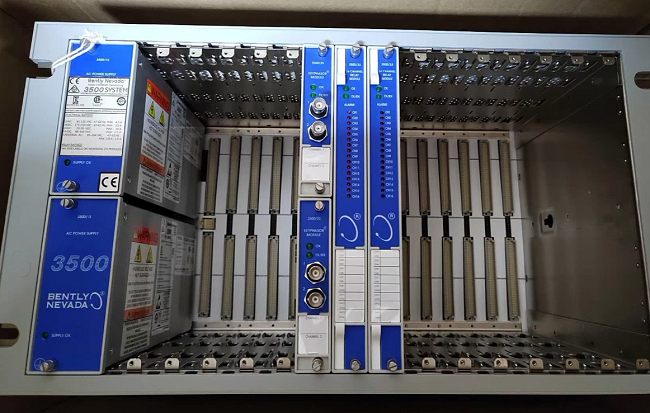

Product Images
