GVAD0110 Schneider Electric TeSys Deca - auxiliary contact - 1 NO + 1 NC
GVAD0110 Schneider Electric TeSys Deca - auxiliary contact - 1 NO + 1 NC
The Schneider Electric GVAD0110 is a high-performance adjustable auxiliary contact block designed for use with GV2, GV3, and GV7 motor protection circuit breakers (MPCBs) in the TeSys Giga family. This versatile add-on module provides customizable signaling functionality, allowing users to configure contact operation based on breaker position—ideal for advanced control logic, remote monitoring, and safety interlocks in industrial automation systems.
Unlike standard fixed-contact blocks, the GVAD0110 features an adjustable trip indication point, enabling precise alignment with specific operational or maintenance requirements.
Technical Specifications
| Model | GVAD0110 |
| Brand | Schneider Electric/TeSys Deca |
| Function | 1NO+1NC (1 normally open +1 normally closed) fault signal contact, side-mounted on GV2/GV3 motor circuit breakers |
| Rated current | 2.5A (AC-15/DC-13) |
| Rated voltage | 690 V AC / 240 V DC |
| Terminal | Screw crimping, 1×0.5- 2.5mm ², with anti-loosening washer |
| Installation | Side snap-on, no tools required, completed in 3 seconds. The GVAE series can be superimposed on the front, with up to 4 layers of expansion |
| Mechanical life | 30 million cycles |
| Electrical life | 1 million cycles (690 V/2 A) |
| Certifications | CE, UL, CSA, CCC, EAC, RoHS & REACH Green Premium |
Typical applications
Motor Control Center (MCC) Fault feedback
Remote alarm for pump/fan/compressor tripping
PLC input for safety chains of machine tools and injection molding machines
Power distribution monitoring for cooling towers in data centers
Fault indication on the DC side of the new energy storage cabinet

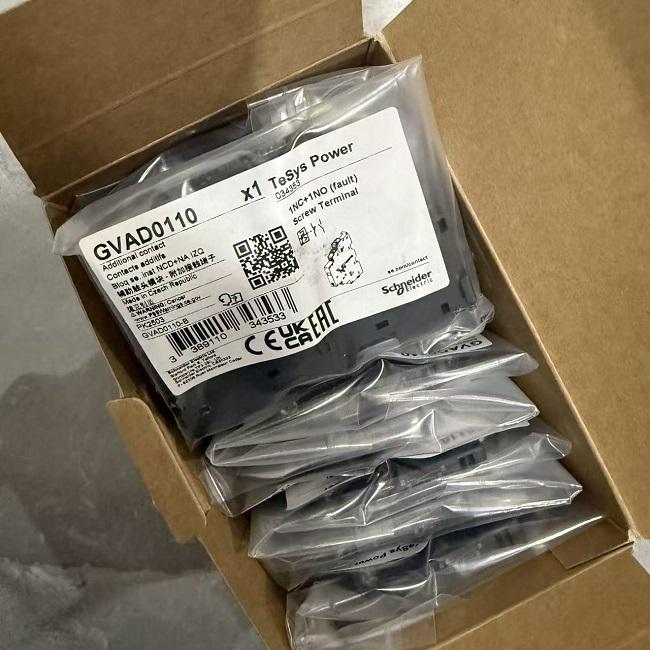

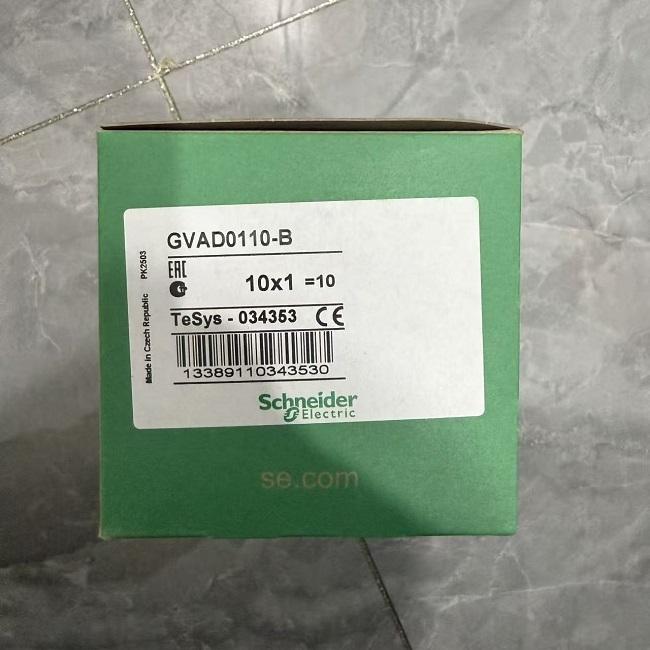

Product details pictures
