GV2ME20 Schneider Electric TeSys GV2-Circuit breaker-thermal-magnetic - 13...18 A
GV2ME20 Schneider Electric TeSys GV2-Circuit breaker-thermal-magnetic - 13...18 A
The Schneider Electric GV2ME20 is a robust, manually operated motor protection circuit breaker (MPCB) from the globally trusted TeSys Giga series. Designed for reliable short-circuit and overload protection of three-phase motors up to 10 kW (at 400 V), this compact device combines high performance, easy installation, and long service life—making it ideal for industrial control panels, HVAC systems, pumps, compressors, and conveyor applications.
With its rotary handle operation, adjustable thermal setting, and high breaking capacity, the GV2ME20 delivers dependable motor protection while reducing downtime and maintenance costs.
Technical Specifications
| Model | GV2ME20 |
| Series | TeSys GV2 Deca |
| Pole number | 3P |
| Current range | 13-18 A (Adjustable by knob, 0.5A per division on the scale |
| Power coverage | 7.5kW @ 400V; 10hp @ 480V |
| Rated voltage | 690 V AC (50/60 Hz) |
| Breaking capacity | 100 kA @ 400 V (IEC 60947-2) |
| Tripping characteristics | Thermal magnetic type - Thermal tripping is adjustable from 13 to 18 A, and magnetic tripping is fixed at 11×In (=198 A) |
| Control method | Green RUN/red STOP push button on the front, with a contact position indicator window |
| Terminal | EverLink stainless steel pressure plate, screw clamping 1-25mm ², torque 1.7N ·m |
| Dimensions | 45mm wide × 89mm high × 78.5mm deep |
| Service life | 100,000 electrical cycles of AC-3 and 3 million mechanical cycles |
Accessories (Purchase all at once from the same counter)
GVAE11 (1NO+1NC positive signal)
GVAD0110 (1NO+1NC side fault)
GV2AF01 / GV2AF3 (Mechanically interlocked with LC1D contactor)
GV2MC01 (Transparent IP55 housing, for outdoor use/water pumps)
GV2G454 (4P 54mm busbar, up to 12 units connected in parallel

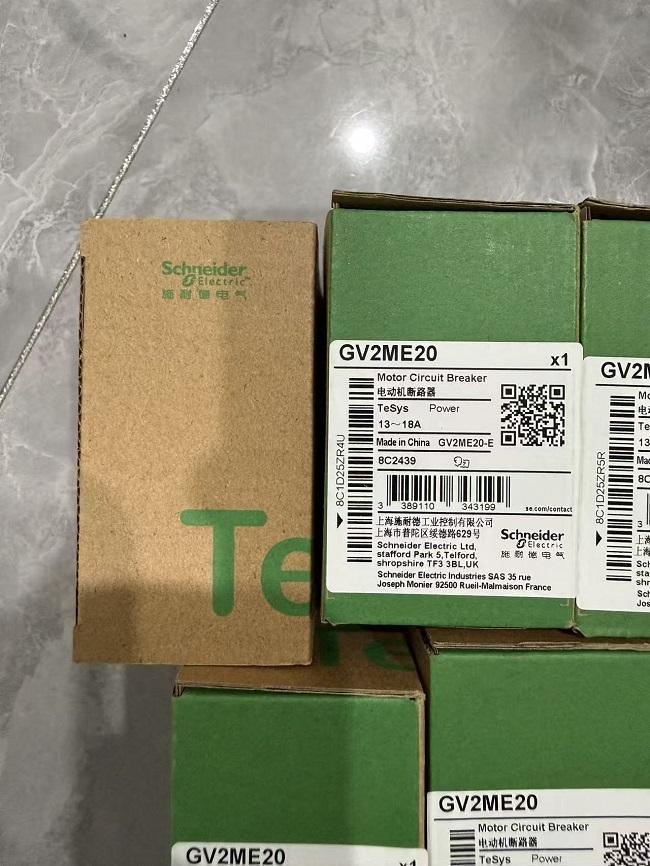

Product details pictures
