AO810V2 3BSE038415R1 ABB digital input module High precision 4 channels Compatible with AC 800M control systems
AO810V2 3BSE038415R1 ABB digital input module High precision 4 channels Compatible with AC 800M control systems
The ABB AO810V2 (Order Code: 3BSE038415R1) is a high-precision, 8-channel analog output module engineered for the ABB AC 800M programmable automation controller (PAC) within the System 800xA distributed control system (DCS). Designed for demanding process and industrial applications, the AO810V2 delivers reliable, isolated analog signals—supporting both current (0/4–20 mA) and voltage (0–10 V, ±10 V) outputs per channel—with 16-bit resolution, advanced diagnostics, and seamless integration into ABB’s unified engineering environment. It is ideal for driving control valves, variable frequency drives (VFDs), actuators, and other analog field devices in power, oil & gas, water, chemical, and mining industries.
Product Overview: ABB AO810V2 (3BSE038415R1)
| Manufacturer | ABB Automation |
| Module Type | Analog Output Module (Version 2) |
| Part Number / Order Code | 3BSE038415R1 |
| Compatible Systems | AC 800M Controller, System 800xA DCS |
| Number of Output Channels | 8 independent channels |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale (typical at 25°C) |
| Galvanic Isolation | Yes – between backplane logic and field outputs (>500 V RMS) |
| Overload & Short-Circuit Protection | Built-in per channel with automatic recovery |
| Connection Type | Removable screw terminal block (supports 20–14 AWG wires) |
| Power Supply | Powered via AC 800M backplane – no external supply required for electronics |
| Mounting | Installed on standard AC 800M I/O rail (DIN rail compatible) |
| Certifications | CE, UL, CSA, IEC 61000-6-2/6-4 (EMC), RoHS compliant |

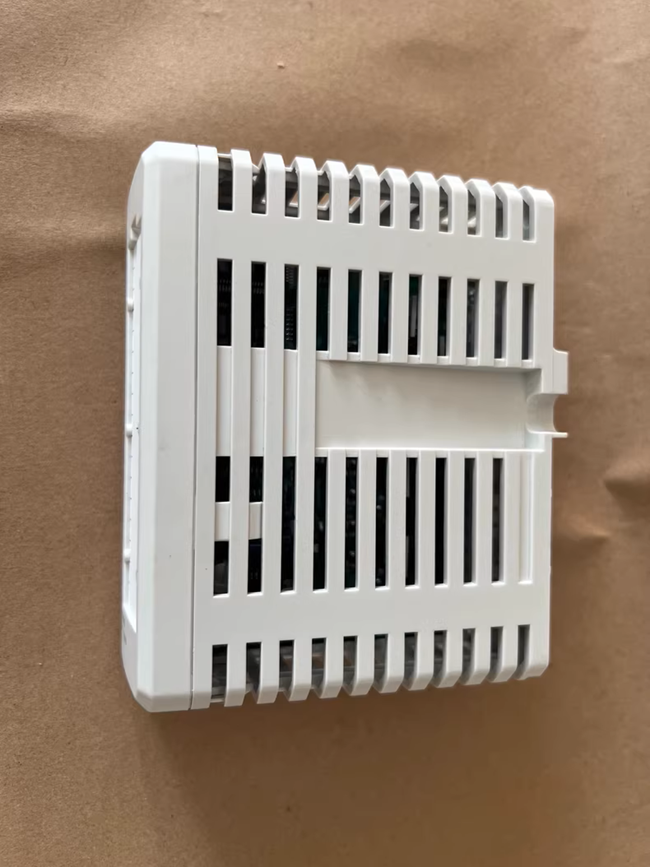

Product Images
