TU830V1 3BSE013234R1 ABB Electronic rack AC 800M S800 I O Supports 8 I O modules
Price:
$58
MOQ:
1 pc
Delivery Time:
3-5 days
Brand:
ABB
Product Description
TU830V1 3BSE013234R1 ABB Electronic rack AC 800M S800 I O Supports 8 I O modules
The ABB TU830V1 is a 12-slot I/O electronic rack (base plate) specially designed for S800 I/O systems, supporting horizontal installation. It can accommodate up to 12 S800 I/O modules (such as DI801, DO810, AI810, AO810, etc.) and provide power distribution and high-speed data communication channels through the built-in ModuleBus bus. The TU830V1 is mainly used to integrate multiple I/O modules into a compact unit and connect to the AC 800M controller or System 800xA system via the CI801 or CI854A communication interface module.
Technical Specifications
| Model | TU830V1 |
| ABB Ordering Code | 3BSE013234R1 |
| Product Family | ABB S800 I/O System |
| Compatible Controllers | AC 800M (PM860, PM861, PM864, PM865, etc.) |
| Compatible I/O Modules | AI810, AO810, DI810, DO810, TU810-based modules |
| Mounting | 35 mm DIN rail per EN 60715 |
| Field Wiring | Push-in spring terminals, 0.14–2.5 mm² |
| Isolation Voltage | 500 V AC RMS (field-to-system) |
| Backplane Interface | ModuleBus (proprietary ABB bus) |
| Power Supply | Via backplane from I/O termination board |
| LED Indicators | Power OK, ModuleBus Comm, Fault |
| Hot Swap Support | Yes (with compatible modules) |
| Operating Temperature | 0°C to +60°C |
| Certifications | CE, UL, CSA, IEC 61010-1, IEC 61326, RoHS |

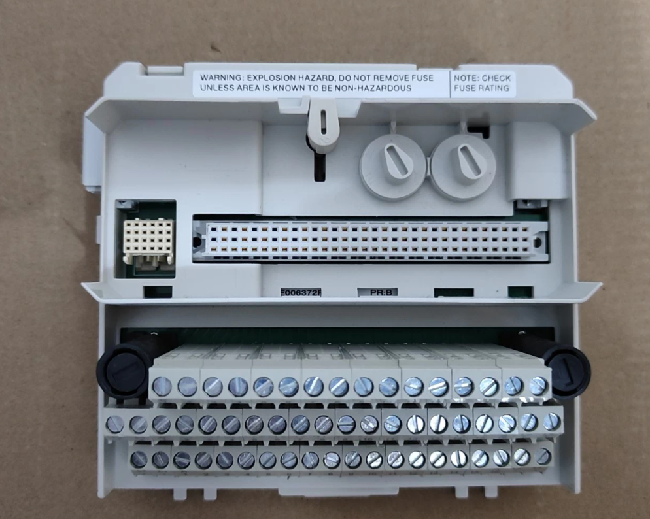

Product Images
