CA5X-31M ABB Thermal overload relay Thermal overload protection small medium sized motors
CA5X-31M ABB Thermal overload relay Thermal overload protection small medium sized motors
The ABB CA5X-31M is a highly efficient and reliable thermal overload relay, specifically designed to protect small and medium-sized three-phase asynchronous motors from overload and phase loss faults. This model supports 1 normally open auxiliary contact and 1 normally closed auxiliary contact. It features a compact design and high reliability, and is widely used in industrial automation, building automation and infrastructure projects. It can be used in conjunction with contactors to provide a comprehensive motor protection solution.
Typical application scenarios
Industrial automation
It is used for the starting, stopping and protection of medium-voltage motors, such as water pumps, fans, compressors and other equipment.
Power transmission and distribution
Load switching and protection in scenarios such as medium-voltage switch cabinets and substations.
Energy and infrastructure
Auxiliary control of photovoltaic inverters, pumping stations of water treatment plants, and backup power switching systems.
OEM equipment integration
As a standard component embedded in the OEM control cabinet, it enhances the reliability of the entire machine.
Basic parameters
| Model | CA5X-31M |
| Series | ABB CA series thermal overload relays |
| Number of poles | 3P (main contact), 1NO + 1NC (auxiliary contact) |
| Rated working current range | 0.1-32 A |
| Rated insulation voltage Ui | 690 V AC |
| Rated working voltage Ue | 230/400/690 V AC (50/60 Hz) |

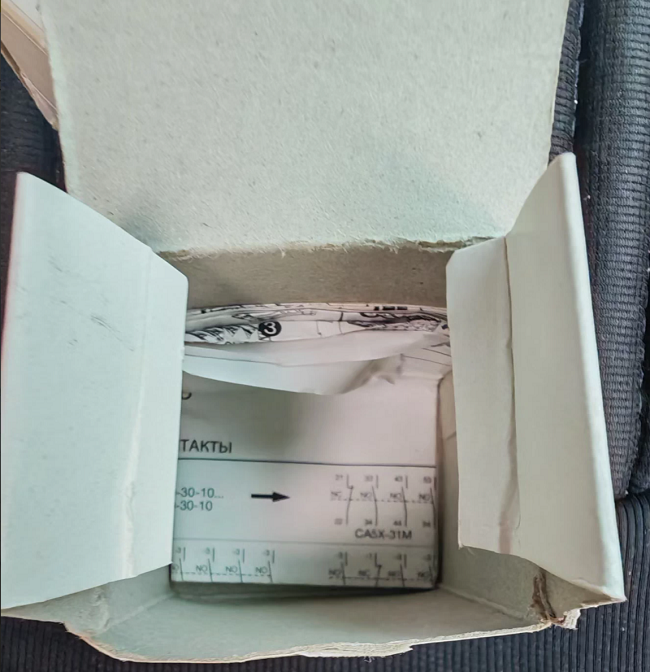

Product Images
