ABB SH202 is a 2-pole Miniature Circuit Breaker (MCB) in the ABB S200 series, specifically designed for overload and short-circuit protection in residential, commercial and light industrial power distribution systems. This product adopts mature thermomagnetic tripping technology, featuring high breaking capacity, compact structure and excellent electrical performance. It is widely used in single-phase circuits (L+N), control power supplies, socket lines and terminal distribution boxes, providing efficient and reliable electrical safety guarantees for personnel and equipment.
Basic parameters
| Model | SH202 |
| Series | ABB S200 series miniature circuit breakers |
| Rated current (In) | 0.5-63A (Common specifications 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A) |
| Rated operating voltage (Ue) | 230/400 V AC (50/60 Hz) |
| Rated insulation voltage (Ui) | 500 V AC |
| The mechanical life | ≥ 20,000 operations |
| Electrical life | ≥ 10,000 times (at rated current) |
| Installation method | 35mm DIN rail (compliant with EN 60715) |
| Operating temperature range | -25°C to +55°C |
| Dimensions (width × height × depth) | 36mm × 82mm × 77mm |

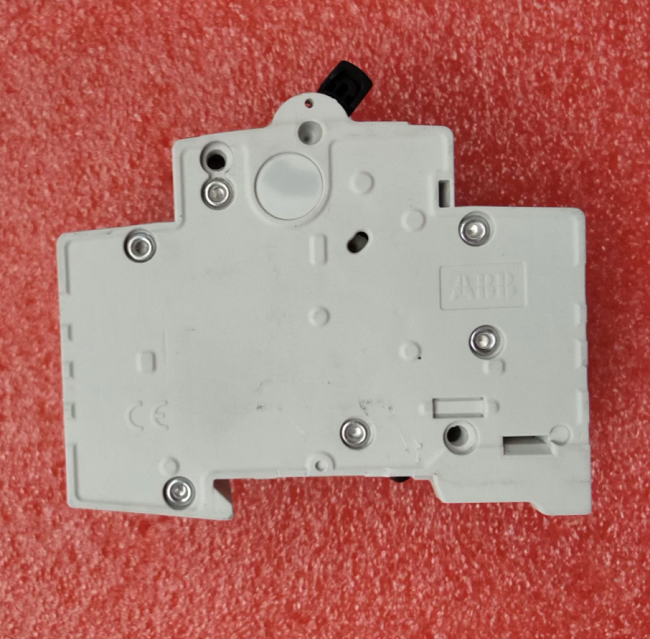

Product Images
