CDP-312R & CABLE ABB 68245508 Control Panel ACS800 Drive Operator Interface with ACT/PAR/FUNC/DRIVE Modes
Price:
$120
MOQ:
1 pc
Delivery Time:
3-5 days
Brand:
ABB
Product Description
CDP-312R & CABLE ABB 68245508 Control Panel ACS800 Drive Operator Interface with ACT/PAR/FUNC/DRIVE Modes
The ABB CDP-312R & CABLE 68245508 is a complete control panel kit designed for ABB ACS800 series AC drives, providing essential operator interface functionality for drive monitoring, parameter configuration, and control operations. This comprehensive kit includes both the CDP-312R control panel and the connecting cable, ensuring immediate installation and operation.
Engineered with ABB's proven reliability, the CDP-312R features four distinct operating modes: Actual Signal Display (ACT), Parameter Mode (PAR), Function Mode (FUNC), and Drive Selection Mode (DRIVE), enabling comprehensive drive management and diagnostics. The control panel's intuitive interface allows operators to monitor real-time drive parameters, adjust settings, and execute control functions with ease.
The 68245508 cable assembly provides reliable connection between the control panel and drive unit, featuring robust connectors and shielded construction to ensure signal integrity and electromagnetic compatibility in industrial environments. The complete kit supports plug-and-play installation, minimizing setup time and ensuring maximum operational efficiency.
Product Specifications: ABB CDP-312R & CABLE
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Number | CDP-312R |
| Part Number | 68245508 |
| Type | Control Panel with Cable Kit |
| Compatible Series | ACS800 AC Drives |
| Function | Drive operator interface and control |

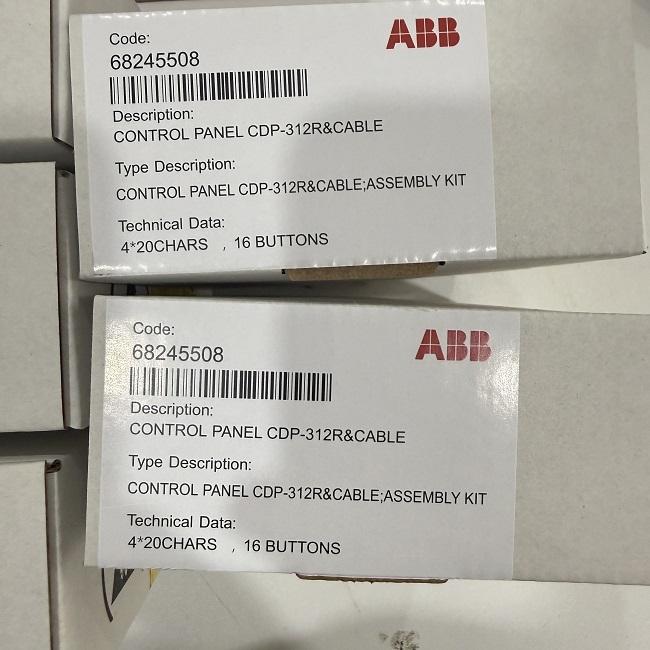

Product Images
Related Products
| CDP-315R | CDP-317R |
| CDP-318R | CDP-319R |
| CDP-320R | CDP-321R |
| CDP-322R | CDP-323R |
| CDP-324R | CDP-325R |
| CDP-326R | CDP-327R |
| CDP-328R | CDP-329R |
| CDP-330R | CDP-331R |
| CDP-332R | CDP-333R |
| CDP-334R | CDP-335R |
FAQ
Q1: CDP-312R still available?
A: Yes, this is an active ABB spare part.
A: Yes, this is an active ABB spare part.
Q2: Compatible drives?
A: ACS800 series AC drives.
A: ACS800 series AC drives.
Q3: Operating modes?
A: ACT, PAR, FUNC, DRIVE modes.
A: ACT, PAR, FUNC, DRIVE modes.
