CM600HA-24H Mitsubishi Single IGBT Module 600A 1200V High-Power Semiconductor for Industrial Applications
Price:
$30
MOQ:
1
Delivery Time:
3-5 days
Brand:
Mitsubishi
Product Description
CM600HA-24H Mitsubishi Single IGBT Module 600A 1200V High-Power Semiconductor for Industrial Applications
The Mitsubishi CM600HA-24H is a high-performance single IGBT module engineered for reliable high-power switching applications across industrial motor drives, uninterruptible power supplies, welding equipment, and renewable energy systems. This advanced 600A 1200V power semiconductor delivers exceptional switching performance and thermal efficiency for demanding industrial power electronics environments.
Featuring high-speed switching technology, the CM600HA-24H provides rapid turn-on and turn-off capabilities with minimal switching losses, enabling efficient power conversion in high-frequency applications. The module's low inductance design minimizes voltage spikes and electromagnetic interference, ensuring stable operation and protecting connected equipment from transient damage.
The IGBT module incorporates robust ceramic substrate construction with direct copper bonding technology ensuring excellent thermal conductivity and mechanical stability. Its isolated package design provides electrical isolation between the semiconductor die and mounting base, enabling safe operation in high-voltage applications. The low VCE(sat) characteristics minimize conduction losses during normal operation, improving overall system efficiency and reducing heat generation.
Product Overview: Mitsubishi CM600HA-24H
| Parameter | Specification |
|---|---|
| Brand | Mitsubishi Electric |
| Model Number | CM600HA-24H |
| Type | Single IGBT Module |
| Package Type | Single package |
| Collector-Emitter Voltage (VCEO) | 1200V |
| Collector Current (IC) | 600A |
| Collector Current (ICM) | 1200A |
| Gate-Emitter Voltage (VGE) | ±20V |

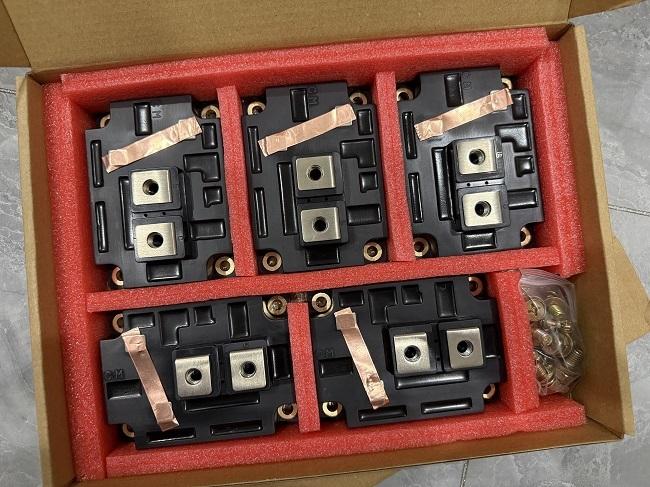

Product details pictures
Related products
| CM300HA-24H | CM400HA-24H |
| CM600HA-12H | CM300HA-12H |
| CM400HA-12H | CM200HA-24H |
| CM300HA-24A | CM600HA-24A |
| CM400HA-24A | CM300HA-12A |
| CM600HA-12A | CM400HA-12A |
| CM600HU-24H | CM400HU-24H |
| CM600DY-24H | CM400DY-24H |
| CM600DU-24H | CM400DU-24H |
| CM600HA-28H | CM400HA-28H |
FAQ
Q1: CM600HA-24H still available?
A: Yes, Active lifecycle status.
A: Yes, Active lifecycle status.
Q2: Maximum collector current rating?
A: 600A continuous, 1200A peak.
A: 600A continuous, 1200A peak.
Q3: Heat sink required?
A: Yes, external heat sink mandatory.
A: Yes, external heat sink mandatory.
