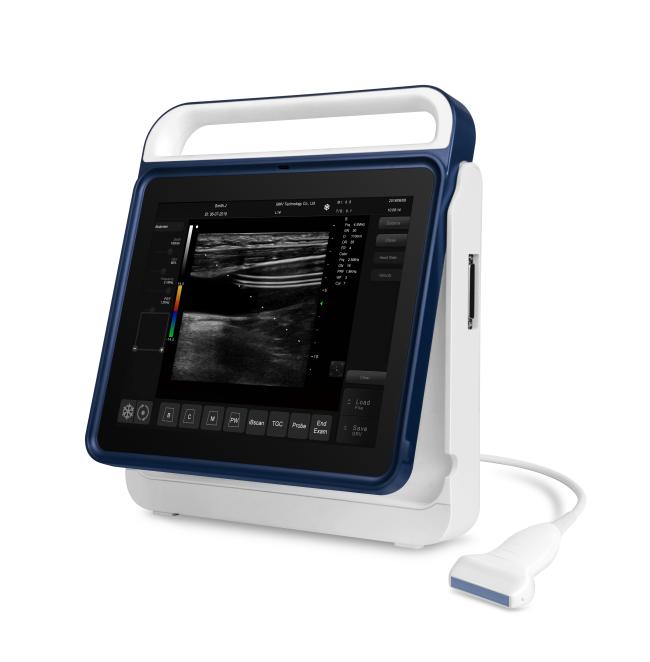

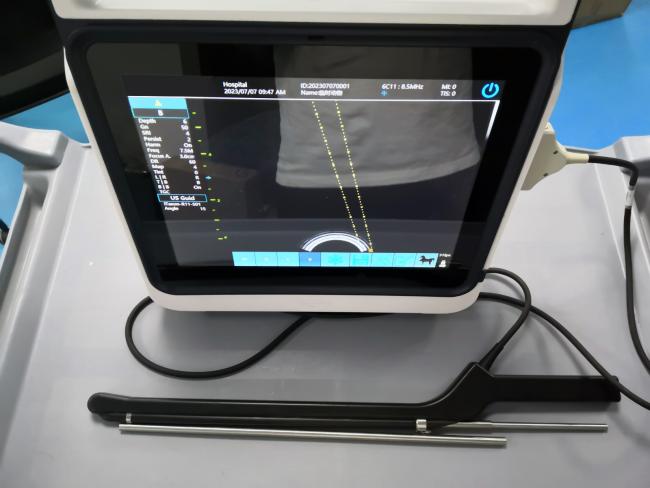

Portable Vet Ultrasound Machine Veterinary Ultrasound Ovum Pick-Up Egg Collection Ultrasound Scanner
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MSL
Product Description
Product Description

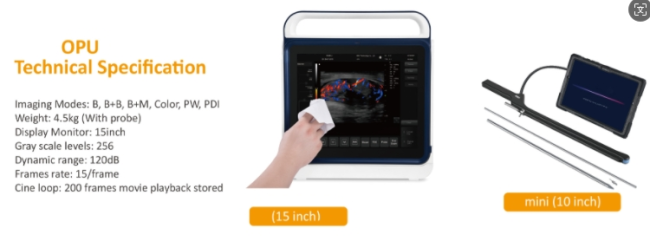

Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | MSL |
Model Number | MSLCU71 |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 3 years |
Quality Certification | CE |
Instrument classification | Class II |
Safety standard | GB/T18830-2009 |
Brand | Ovum Pick-Up Ultrasound System |
model | MSLCU71 |
Imaging Modes | B/C/D triplex mode Dual live: B/C,B/PW,B/M Dual split: B/C, B/M, B/PW |
Gray scale levels | 256 |
Transducer Type | Convex Array,Linear Array,Endocavity Array |
Transducer frequency | 2 to15 Mhz |
Scanning depth | up to 351mm |

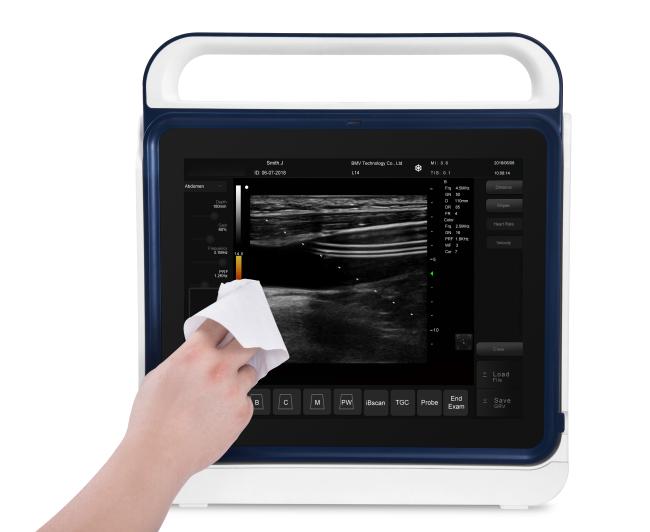

Monitor | 15' high resolution LCD monitor with tilting to view it freely |
Ultrasound platform | Based on Windows high speed hardware platform |
Transducer element | 128 |
More details
Standard Features:
Performance and features comparable to that of conventional cart‐based systems, PT60 point‐of‐care
color Doppler system, is a true simple smart in ultrasound, offers a new level of intuitive operation,
innovative productivity tools and powerful processing for empowering Point of Care(including
Anesthesiology),Emergency Medicine and General Imaging, Women's Health. The result is an all‐new
level of efficiency and image quality
Performance and features comparable to that of conventional cart‐based systems, PT60 point‐of‐care
color Doppler system, is a true simple smart in ultrasound, offers a new level of intuitive operation,
innovative productivity tools and powerful processing for empowering Point of Care(including
Anesthesiology),Emergency Medicine and General Imaging, Women's Health. The result is an all‐new
level of efficiency and image quality
Application scenarios:
* Applicable to different body scans, for example, Abdomen,Obstetrics,Gynecology,Cardiology,Small Parts,Urology,Kidney,MSK(Musculoskeletal);Carotid; Orthopedic; Vascular
* and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call, etc
* and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call, etc
Multi‐frequency probes:
Convex probes C3.5/R60/D‐3 color Doppler convex array transducer(standard configuration)
---Applications:ABD, Renal, ABD‐Vascular, Ped‐ABD, GYN, OB, Fetal Heart, Urology, Prostate
Frequency Bandwidth: 2.0‐5.0MHz
Central frequency: 3.5 MHz
Radius: 60 mm
View angle: 61 degrees
Scanning Depth: 36‐351 mm
Element: 128
Biopsy guide available
Frequency Bandwidth: 2.0‐5.0MHz
Central frequency: 3.5 MHz
Radius: 60 mm
View angle: 61 degrees
Scanning Depth: 36‐351 mm
Element: 128
Biopsy guide available
PV6.5/10/64D‐3 color Doppler Micro‐convex array transducer
---Applications:Pediatric, fetal heart
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available
EC6.5/10/64D‐3 color Doppler Trans‐vaginal probe
---Applications:Early OB, OB/GYN, Urology
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available
Frequency Bandwidth: 4.0‐9.0 MHz
Center frequency: 6.5 MHz
Radius: 10 mm
View angle: 150 degrees
Scanning Depth: 36~184 mm
Element: 128
Biopsy guide available
Linear probes HL10.0/25/64D‐3 High Frequency color Doppler Linear probe
---Applications: Vascular,Carotid,P‐Arterial,SMP,Thyroid,Breast,Testicle,SmEye,MSK, ABD
Frequency Bandwidth:6.0‐14.0 MHz
Center frequency: 10.0MHz
Scanning width: 25 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available
Frequency Bandwidth:6.0‐14.0 MHz
Center frequency: 10.0MHz
Scanning width: 25 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available
HL10.0/40‐64D‐3 color Doppler Linear probe
---Applications: Vascular,Carotid,P‐Arterial,SMP,Thyroid,Breast,Testicle,SmEye,MSK, ABD
Frequency Bandwidth: 5.0‐10.0 MHz
Center frequency: 7.5MHz
Scanning width: 40 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available
Frequency Bandwidth: 5.0‐10.0 MHz
Center frequency: 7.5MHz
Scanning width: 40 mm
Scanning Depth: 18~184 mm
Element: 128
Biopsy guide available
