24kV 1250A Vacuum Circuit Breaker Indoor ZN63A VS1 For Switchgear Power Systems
Price:
$800-$5000
MOQ:
1 pcs
Delivery Time:
15 days
Brand:
MacweyTek
Product Description
ZN63A VS1 24kV 1250A Indoor Vacuum Circuit Breaker
VS1-12 type indoor high voltage vacuum circuit breaker is designed for three-phase AC 50Hz systems with rated voltage for indoor switchgear 12KV power systems. It serves as protection for power equipment enterprises and functions as both a power equipment condition monitor and control unit. Suitable for frequent operation requirements in rated working current or multiple breaking short circuit current scenarios.
The circuit breaker features an integrated design combining the operating mechanism and breaker body. It can be installed as a fixed unit or equipped with a specialized propelling mechanism to function as a hand cart unit.
Key Advantages
- Simple structure design
- Ultra low resistance type vacuum interrupter
- Optimized modular spring operating mechanism
- Ideal for frequent operation requirements
- Maintenance-free with long service life
- High reliability performance
Environmental Conditions
- Ambient temperature: -10°C to +40°C (storage/transportation possible at -30°C)
- Altitude: ≤1000m
- Relative humidity: ≤95% daily average
- Saturated vapor pressure: ≤2.2 × 10-3MPa average
- Earthquake resistance: ≤8 intensity
- Not suitable for locations with fire, explosion hazards, severe pollution, chemical corrosion, or intense vibration
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Rated voltage | KV | 24 |
| 1 min power frequency withstand voltage | KV | 65 |
| Lightning impulse withstand voltage | KV | 125 |
| Rated frequency | Hz | 50 |
| Rated current | A | 630, 1250, 1600, 2000, 2500 |
| Rated short-time withstand current | KA | 20, 25, 31.5 |
| Rated withstand current (peak) | KA | 50, 63, 80 |
| Rated short-circuit opening current | KA | 20, 25, 31.5 |
| Rated short-circuit closing current | KA | 50, 63, 80 |
| Rated duration of short-circuit | S | 4 |
| Opening time | ms | ≤60 |
| Closing time | ms | ≤45 |
| Mechanical life | cycles | 10000 |

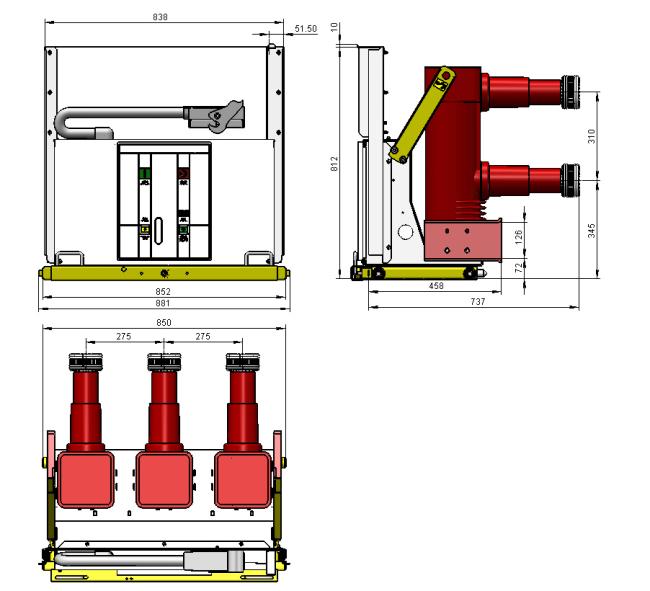

Product Drawings
