10A 220V DC Circuit Breaker Accessories 3NO / 2NO1NC Auxiliary Switch For MV Switchgear
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
GDF-3 Auxiliary Switch 3NO/2NO1NC 10A 220V DC for MV Switchgear
GDF Series Auxiliary Switches GDF-3
Product Introduction
This product is widely used in middle-positioned high voltage switchgear's handcart, vacuum contactor, vacuum load switch, and other high voltage switch equipment. It serves as an indicator or interlock for connecting, breaking, tripping, and signaling operations.
Specification
- 3 pairs of contacts
- 4 different structure models available: 3NO, 2NO1NC, 1NO2NC, 3NC
- Type(Ⅰ): Push rod with connecting piece (L)
- Type (Ⅱ): Push rod with buffering piece (H)
Basic Technical Data
| Parameter | Value |
|---|---|
| Rated voltage | DC220 | AC380 |
| Rated current | 10A | 15A |
| Rated breaking current | -3 e=22 | COS Φ=0.4 |
| Insulation voltage | 660V |
| Electric life | 20000 time (open/close) |
| Mechanical life | 30000 time (open/close) |
| Travel distance of push rod | 6.5-7mm |

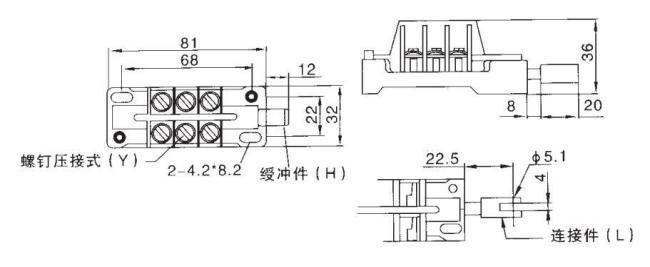

Outline Dimensions
