ANSI RMU Components High Voltage Switchgear SF6 Bushing With Gas Insulation
Price:
$10
MOQ:
1 pc
Delivery Time:
15 days
Brand:
MacweyTEK
Product Description
15kV ANSI SF6 Bushing with Gas Insulation for High Voltage Switchgear
12kV ANSI Switchgear Bushing SF6 Bushing Gas Insulation SF6 Switchgear Bushing
12KV Epoxy Resin Integrated Insulated Dead Break Bushing designed for cable branch cabinets with SF6 switches, ensuring reliable insulation in high voltage switchgear. Its umbrella skirt structure increases creepage distance, enhancing electrical performance and safety. Certified with CE, it ensures compliance with EU safety standards, providing market access assurance.
Supplier Highlights: Manufacturer and trader offering full customization options including design and sample customization. All products are certified with 100% customer satisfaction.
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 12 |
| Rated Current | 630A |

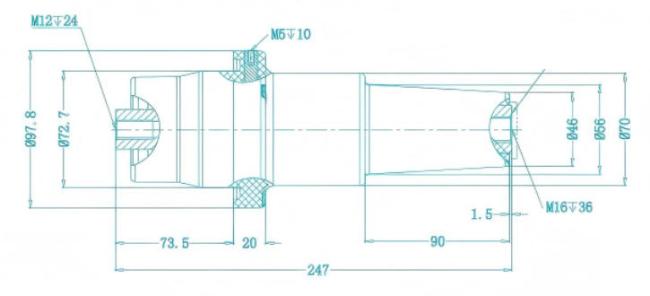

| Dimension | 247mm |
| Power-frequency Withstand Voltage | 48 kV/1min |
| Partial Discharge | ≤ 5 pC |
| Inductive Capacitance | 25+5 pF |
Key Features
- Designed for cable branch cabinets with SF6 switches
- Epoxy resin integrated insulation for high reliability
- Umbrella skirt structure for increased creepage distance
- Enhanced electrical performance and safety
- CE certified for EU market compliance
