Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor
Price:
$110
MOQ:
1 piece
Delivery Time:
20 days
Brand:
MacweyTEK
Product Description
MZZBJ9-35D Single Three Phase Current Transformer 10/33kV 5-1000A/5A 3kVA-50kVA for Indoor Outdoor Applications
10/33kV 5-1000A/5A 3kVA-50kVA Indoor & Outdoor Custom Current Transformer
Transformers are essential electrical components in power systems. While similar to power transformers in function, current transformers specifically serve measurement and monitoring purposes in circuits. Power transformers handle large capacity voltage/current changes, whereas current transformers manage smaller capacity with more precise changes.
In measurement circuits, current transformers supply electricity to current meters and relays, while voltage transformers serve voltage meters and relays.
Model Definition
The model composition consists of two parts: product model letter/design number and rated voltage grade with environment code.
Technical Specifications
| Type | Rated Primary Current | Accuracy Class Combination | Rated Secondary Output (VA) | 1s Thermal Current (kA) | Rated Dynamic Current (kA) |
|---|---|---|---|---|---|
| 0.2S 0.5S 0.2 0.5 5P10 5P15 5P20 | 10 | 0.2(S)/0.2(S) | 10 10 15 30 50 30 20 | 1.44 | 3.6 |
| 15 | 0.2(S)/0.5(S) | 2.1/2 | 5.25 | 7.1 375lin/2 | |
| 25,30 | 0.2(S)/5P | 2.82/2 | 30-100 | 0.5(S)/5P | |
| 150 | 5P/5P | 31.5 31.5/2 31.5/3 31.5/4 40/4 | 80 80 80 80 100 | 200,250 |

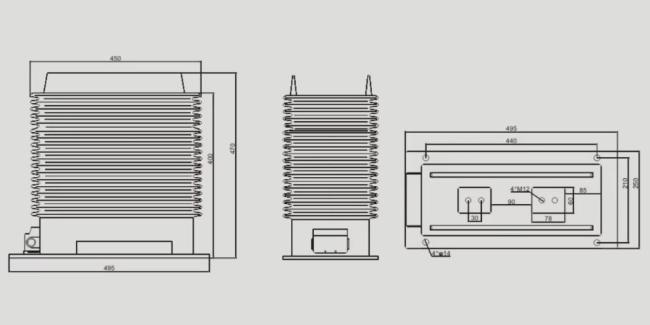

Overall Dimensions
