Epoxy Resin Insulated Current Transformer 10kV High Voltage Transformer
Price:
$120
MOQ:
1 piece
Delivery Time:
18 days
Brand:
MacweyTEK
Product Description
JDZW-10R Epoxy Resin Insulated Voltage Transformer for 10kV Power Systems with Outdoor Reliability
The JDZW-10R (New Casing Version) is an upgraded pillar-type, epoxy resin cast insulated outdoor voltage transformer designed for 10kV power systems (50Hz / 60Hz). This enhanced version features a protective housing that provides superior mechanical strength, weather resistance, and insulation safety compared to the standard model. Suitable for voltage measurement, energy metering, and relay protection in outdoor medium-voltage systems, it complies with IEC186 and GB1207-2006 standards for long-term reliable performance.
Key Features
- Protective Housing (Sheath Design): Enhanced anti-UV, anti-aging, and waterproof performance for extended service life in harsh outdoor conditions
- Epoxy Resin Insulation: Fully cast structure providing high durability, strong insulation, and safe operation
- Compact & Lightweight Design: Easy installation in any position
- Secondary Terminal Protection: Equipped with cover and anti-theft design for secure connections
- Outdoor Reliability: Resistant to arcing, UV rays, and environmental stressors
Service Conditions
| Ambient Temperature | -25°C to +40°C |
| Altitude | ≤2000m |
| Humidity | ≤95% RH |
| Pollution Class | Class II compliant |
| Vibration Resistance | Passed 0.4g vibration test |
Construction & Advantages
- New Protective Casing: Additional safety layer for better resistance to pollution, dust, and mechanical damage
- Steel Channel Base: Four mounting holes ensure easy and stable installation
- Extended Life Cycle: Improved resistance to weathering compared to standard version
- Compliance: Meets GB20840.3-2013, GB20840.1-2010 partial discharge standards
Technical Parameters
| Rated Voltage Ratio | 10,000V / 100V, 10,000V / 220V, or customized |
| Rated Secondary Output | 25VA - 300VA (depending on accuracy class) |
| Accuracy Classes | 0.2, 0.5, 1, 3, 6P |
| Rated Insulation Level | 12 / 42 / 75 kV |
| Limit Output | Up to 800VA |
| Partial Discharge | ≤20pC |
Customizable voltage ratios, outputs, and casing options are available to meet specific application requirements.

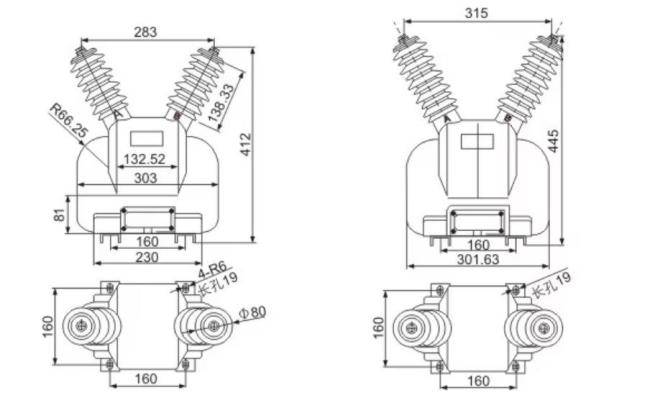

Product Dimensions
