3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration
Price:
$85
MOQ:
1 piece
Delivery Time:
20 days
Brand:
MacweyTEK
Product Description
JDZJ Series Epoxy Resin Voltage Transformer with Double-Winding Configuration for 3kV-10kV Systems
The JDZJ Series Voltage Transformers are single-phase, epoxy resin-cast insulated devices designed for voltage measurement, energy metering, and relay protection in AC 50Hz medium-voltage power systems.
Available Models
JDZJ-3(W), JDZJ-6(W), and JDZJ-10(W) models covering 3kV, 6kV, and 10kV systems respectively.
Key Features
- Double-winding configuration for higher accuracy
- Epoxy resin insulation for excellent durability and moisture resistance
- Superior protection against pollution and environmental factors
- Ideal for indoor and industrial applications requiring precision and reliability
- Encapsulated coil structure ensures high insulation strength and long service life
Service Conditions
- Altitude: ≤1000m
- Ambient temperature: -5°C to +40°C
- Relative humidity: ≤85% at 20°C
- Vibration resistance: Passed 0.4g test (equivalent to 9° earthquake intensity)
- Pollution resistance: Suitable for moderate pollution environments
Construction Details
- Epoxy resin cast insulation with piled ring core
- Primary & secondary windings concentrically wound on the same core
- Secondary terminals routed through embedded nuts at the base (marked a.x)
- Primary terminals routed through high-voltage posts (marked A.X)
Compliance Standards
Meets IEC60044-1 and GB1208-1997 standards

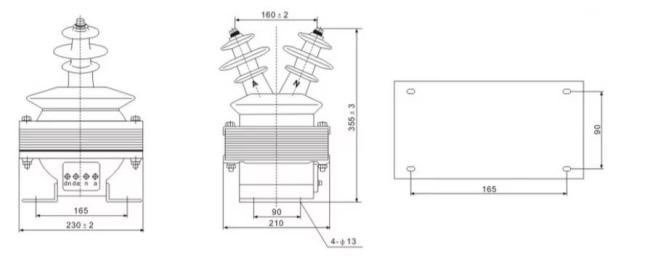

Outline & Dimensions
