Outdoor CT PT Transformer 35kV Epoxy Resin Current Transformer For High Voltage Power Systems
Price:
$1200
MOQ:
1 piece
Delivery Time:
20 days
Brand:
MacweyTEK
Product Description
35kV Outdoor Epoxy Resin Cast Current Transformer for High-Voltage Power Systems
Outdoor Epoxy Resin Cast Type | OEM Factory
The LZZW-35 Current Transformer is a fully enclosed, resin-cast post-type CT designed for 35kV outdoor power systems at 50Hz/60Hz. Suitable for energy metering, current measurement, and relay protection applications.
Service Conditions
- Installation: Outdoor, free from severe pollution & corrosive environments
- Ambient temperature: -25°C to +40°C (optional: -40°C on request)
- Altitude: ≤1000m
- Pollution class: IV (designed for polluted outdoor environments)
- Atmospheric conditions: No explosive gases, heavy steam, or dust that affect insulation
- Vibration: Stable operation, free from strong vibration & shock
Construction & Features
- Resin-cast insulation: Fully enclosed, moisture-proof, and pollution-resistant
- Pillar-type design: Compact, durable, and easy to install
- Primary current: Up to 500A (custom options available)
- Secondary: 5A standard output
- High insulation strength: Rated insulation level 40.5/95/185 kV
- Standards: Complies with IEC185 / GB1208-2006
Technical Parameters
| Current (A) | Combination | Rated Output (VA) | Current (ka/s) | Current (kA) |
|---|---|---|---|---|
| 5-100 | 0.2 | 10 | 10 | 15 |
| 150 | 0.2s | 18 | 45 | |
| 200 | 0.5 | 27 | 67.5 | |
| 300 | 0.5s | 30 | 75 | |
| 400 | 10p10 | 36 | 90 | |
| 500 | 10p15 | 40 | 1001In | |
| 600 | N/A | N/A | ||
| 750-1000 | N/A | N/A |
Partial discharge: Meets GB1208-2006 / IEC185 standards
Secondary current: 5A standard
Secondary current: 5A standard

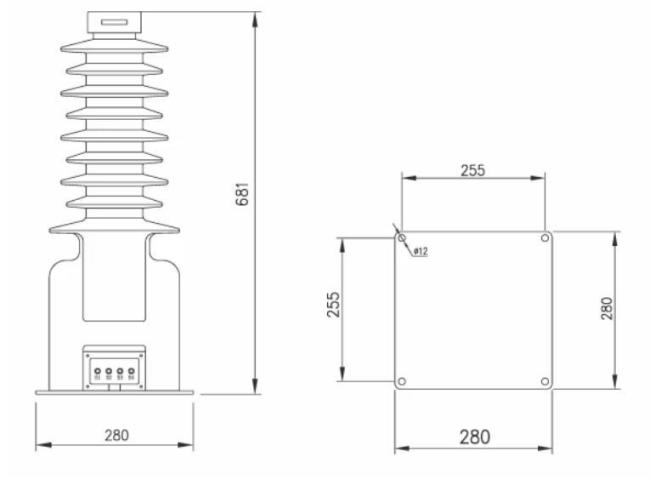

Outline & Dimensions
Compact design for easy outdoor installation. Standard mounting dimensions available. Outline drawings & installation guides provided on request.
