Solar Storage Lithium Li Ion 48V 600Ah UPS Inverter Battery 30 Kwh 320Kg

Price Negotiable
Price: Negotiable
MOQ: 10 unit
Delivery Time: 15-20 working days
Brand: CTS
Product Description

Standard 19 Inch UPS Inverter Rack Cabinet 48V 600Ah 30 Kwh Lithium Li Ion Module Battery



Features:

1. Most safe LFP battery technology

2. Long lifetimes - >5000 cycles @85% DOD

3. Capacity expandable, tailored for you.

4. Compact size for space saving

5. Highly compatible BMS, seamless connection with energy storage inverter

6. Multiple communication interfaces: RS485, RS232

7. Short circuit/ Over current/Over voltage/Over temperature protection

8. Multiple parallel machines, automatic address acquisition without manual operation

9. LED screen optional



Specifications:

MODEL

CTS48600

Cell Type - Chemistry

Prismatic- LiFePO4

Rated Capacity

600Ah

Rated Voltage

51.2V

Energy

28.8kWh

Cell Resistance

≤1.6m Ω

Self Discharge

<1.5% per month

Dimensions (L x W x H)

600*600*2000mm

Weight

320kgs

Discharge Cut-off Voltage

42V

Max Continuous Discharging Current

300A/customize

Charging Limited Voltage

54V

Max Charging Current

300A/customized

Charge Temperature Range

0~45℃

Discharge Temperature Range

-20~60℃

Recommended Operating Temperature

15~35℃

Recommended

15~35℃, 45~75%RH

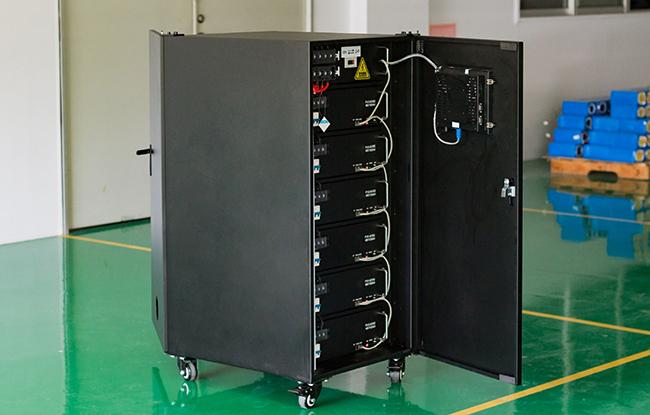

Pictures:



FAQ:



1): Are you manufacturer or simply trading company?

Re: We are manufacturer, and we sincerely welcome you to visit our factory!



2): Can I get a lower price if I order large quantities?

Re: Yes, cheaper prices with more bigger size orders.



3): Do you offer charger for battery?

Re: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.



4): How about your company intelligence?

Re: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, UN38.3, IEC62133, CB,etc certificated.



5): When you ship my order?

Re: Normally 5-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.



6): How about the quality guarantee period?

Re: Two year!
