China Customized 48V 100Ah 200Ah Energy Storage Battery Rechargeable Power Wall Lithium Ion Battery 5kWh 10kWh for Home Power Backup for sale

Customized 48V 100Ah 200Ah Energy Storage Battery Rechargeable Power Wall Lithium Ion Battery 5kWh 10kWh for Home Power Backup

Name: Customized 48V 100Ah 200Ah Energy Storage Battery Rechargeable Power Wall Lithium Ion Battery 5kWh 10kWh for Home Power Backup
Brand: Hunan CTS Technology Co,.ltd

Price Negotiable

Price: Negotiable

MOQ: 2

Delivery Time: 25 working daya

Brand: CTS

Product Description

48V 100Ah 200Ah Energy Storage Battery Rechargeable Power Wall Lithium Ion Battery 5kWh 10kWh for Home Power Backup

╣Product Details

Battery specification
Model	LW25200	LW51100AH	LW51100
Basic parameter
Battery Type	LiFePo4	LiFePo4	LiFePo4
Rated voltage	25.6V	51.2V	51.2V
Rated capacity	200AH	100AH	200AH
Energy(25°C, 0.5C)	5.12kwh	5.12kwh	10.24kwh
Size	520547182mm	520547182mm	820547182mm
weight	55kg	55kg	105kg
Electric parameter
Voltage range	22.4~28.8VDC	44.8~57.6VDC	44.8~57.6VDC
Float charge voltage	28V	56V	56V
Max continue discharge current	100A	100A	100A
Pluse discharge current	150A(1 Sec)	150A(1 Sec)	150A(1 Sec)
Recommend discharge current	≤100A	≤50A	≤100A
Max continue charge current	50A	50A	50A
Recommend charge current	≤60A	≤30A	≤60A
cycle life(25°C, 0.5C,90%DOD)	>6000 Cycles	>6000 Cycles	>6000 Cycles
Design life	>15years	>15years	>15years
Terminal	M8
IP level	IP20
Max parallel number	8pcs
Safety standard	IEC62619, UN38.3, MSDS
communication function	RS485/CAN(support inverter brand: Deye, Growatt, Luxpower,Solax, Victron, Goodwe, Sofar,SMA,Pylontec)
BMS protection	Over charge, over discharge, over temperature, over current,short circuit

1. Two Installation Methods: Wall-mounted & floor-mounted

2. Compatible with 95% Inverter Brands

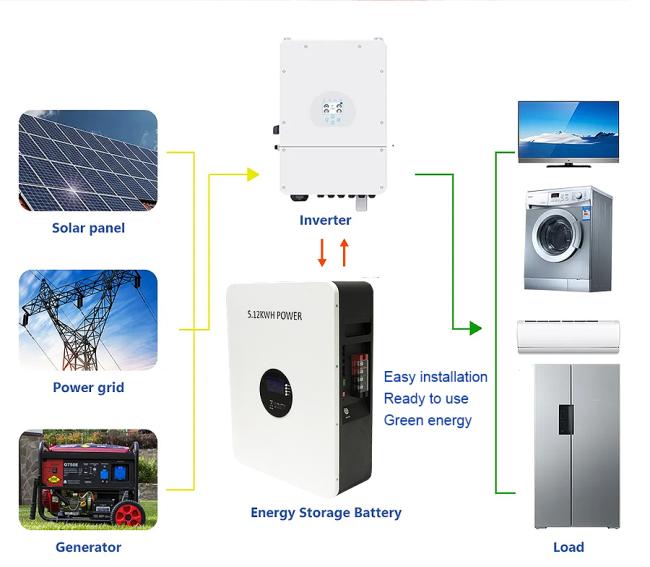

╣Battery Application

● Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
● 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
● One-stop customized service for 12V to 1000V battery system.
● 100% OQC testing with 25 detection contents.
● 14 years lithium battery designing and production experience.
● ISO9001 &IATF16949 certifications to ensure the quality of products.
● Cross-industry battery solution.
● 2 factories in battery manufacturing and R&D.
● Global on-site technical support.

Should you have any further inquiries, please do not hesitate to contact us for additional information.
