Deep Cycle Lifepo4 Battery Pack 12v 100Ah 206ah 300ah 400ah
12v 300ah 400ah lifepo4 battery pack,12v 100Ah lithium deep cycle battery, lifepo4 12v 206ah lithium ion battery
Features:
1. Use A grade LiFePO4 prismatic cell.
trolleys.
Specifications:
| 12.8V 206Ah lithium LiFePO4 battery pack | ||
| Mechanical | Cell & Method | LiFePO4, 4S1P |
| Dimension(L*W*H) | Customized | |
| Weight | 20KG | |
| Electrical Characteristics | Rated Capacity | 206Ah |
| Min Capacity | 206Ah | |
| High Rate Discharge Capacity | ＞ 90% Rated Capacity | |
| Discharge Capacity @ -20℃(-4℉) | ＞ 70% Rated Capacity | |
| Norminal Voltage | 12.8V | |
| Energy | 2637Wh | |
| Internal Impedance(@ 1000Hz.) | ≤20 mΩ | |
| Cycle Life | ＞3000 Cycles @ 1C 85% DOD | |
| Months Self Discharge | ≤ 5% @ 25℃(77℉) | |
| Efficiency of Charge | 100% @ 1/3C | |
| Efficiency of Disharge | 95% @1C | |
| Standard Charge | Max Charge Voltage | 14.6V |
| Charge Current | 1/2C, 100A | |
| Max Charge Current | 200A | |
| Standard Discharge | Standard discharge Current | 1C, 100A |
| Max Discharge Current | 200A | |
| Discharge Cut-off Voltage | 11.2V | |
| Environmental | Charge Temperature | 0 ℃ to 45℃(32℉ to 113℉) @ 65±20%Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
| Storage Temperature | ≤ 1 Month, -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
| ≤ 6 Month, -20℃ to 30℃(-4℉ to 80℉) @ 65±20%Relative Humidity | ||

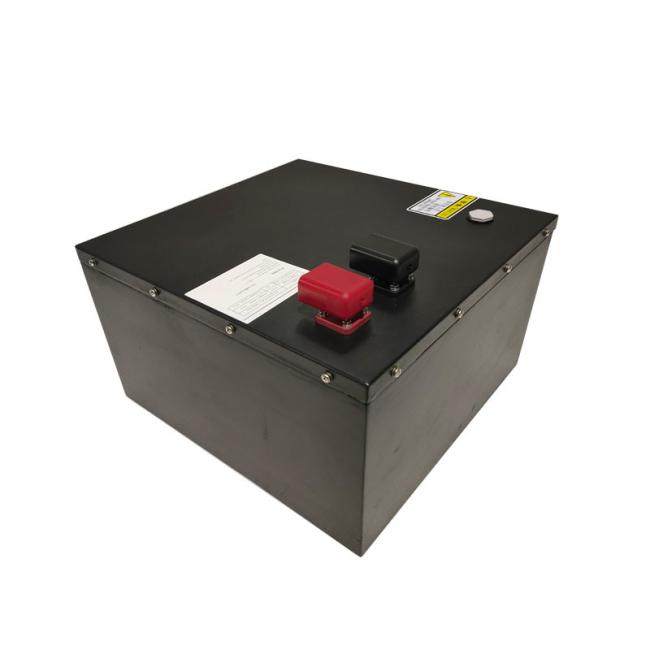

Pictures:
FAQ:
1): Are you manufacturer or simply trading company?
Re: We are manufacturer, and we sincerely welcome you to visit our factory!
2): Can I get a lower price if I order large quantities?
Re: Yes, cheaper prices with more bigger size orders.
3): Do you offer charger for battery?
Re: Yes, we do. If you also need charger, please mention it when sending inquiry, kindly note that our charger cost is not included in the battery cost.
4): How about your company intelligence?
Re: ISO9001 certification, China Hi-tech company, 10 million battery assurance, 8 patents, Almost all products are MSDS, UN38.3, IEC62133, CB,etc certificated.
5): When you ship my order?
Re: Normally 5-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
6): How about the quality guarantee period?
Re: Two year!
