Customized Max Charge Current 200kWh Heavy Duty Lithium Batteries for Yellow Iron Equipment High Energy Density
Price:
Negotiable
MOQ:
2 unit
Delivery Time:
40 working days
Brand:
CTS
Product Description
150kwh 200kwh Electric Car Battery Pack, Battery Lithium 600V 500V 400V 150 Kw For Heavy Duty Equipment Excavators ![]()
| MODEL | F128206 | F128230 | F153206 | F153230 |
| ELECTRICAL SPECIFICATIONS | ||||
| Cell Type - Chemistry | 3.2V 206ah | 3.2V 230ah | 3.2V 206ah | 3.2V 230ah |
| Rated Capacity | 206Ah | 230Ah | 206Ah | 230Ah |
| Rated Voltage | 128V | 128V | 153.6V | 153.6V |
| Energy | 26.386kWh | 29.44kWh | 31.16kWh | 35.328kWh |
| IP Proetction | IP67 | |||
| Cycle life | >3000cycles(90%DOD, 0.5C) | |||
| MECHANICAL SPECIFICATIONS | ||||
| Dimensions (L x W x H) | Within L1060*W630*H245mm | |||
| Weight | <=230Kg | |||
| DISCHARGE/CHARGE SPECIFICATIONS | ||||
| Discharge Cut-off Voltage | 100V | 100V | 120V | 120V |
| Max Continuous Discharging | 1C | |||
| Peak Discharge Current | 2C/30s; 3C/5s | |||
| Recommended Discharge Current | 0.5C | |||
| CHARGE SPECIFICATIONS | ||||
| Charging Limited Voltage | 146V | 146V | 175.2V | 175.2V |
| Max Charging Current | 1C | |||
| Recommended Charge Current | 0.5C | |||
| TEMPERATURE SPECIFICATIONS | ||||
| Self discharge rate | ≤ 3 %/month | |||
| Charge Temperature Range | 0~50ºC | |||
| Discharge Temperature Range | -20~60ºC | |||
| Recommended Operating Temp | 15~35ºC | |||
| Storage Temperature & Humidity | -20~35ºC, 45~75%RH | |||
| Range (Less than 1 month) | ||||
| Storage Temperature & Humidity | -10~35ºC, 45~75%RH | |||
| Range (Less than 3 months) | ||||
| Recommended Storage Temp. & Humidity Range | 15~35ºC, 45~75%RH | |||
| System cooling mode | Liquid cooling | |||
| MODEL | F96280 | F96302 | F115280 | F115302 |
| ELECTRICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | ||
| Cell Type | 3.2V 280ah | 3.2V 302h | 3.2V 280ah | 3.2V 302h |
| Rated Capacity | 280Ah | 302Ah | 280Ah | 302Ah |
| Rated Voltage | 96V | 96V | 115.2V | 115.2V |
| Energy | 26.88kWh | 28.99kWh | 32.256kWh | 34.79kWh |
| IP Proetction | IP67 | |||
| Cycle life | >3000cycles(90%DOD, 0.5C) | |||
| MECHANICAL SPECIFICATIONS | ||||
| Dimensions (L x W x H) | Within L1060*W630*H245mm | |||
| Weight | <=230Kg | |||
| DISCHARGE/CHARGE SPECIFICATIONS | ||||
| Discharge Cut-off Voltage | 75V | 75V | 90V | 90V |
| Max Continuous Discharging | 1C | |||
| Peak Discharge Current | 2C/30s; 3C/5s | |||
| Recommended Discharge Current | 0.5C | |||
| CHARGE SPECIFICATIONS | ||||
| Charging Limited Voltage | 109.5V | 109.5V | 131.4V | 131.4V |
| Max Charging Current | 1C | |||
| Recommended Charge Current | 0.5C | |||

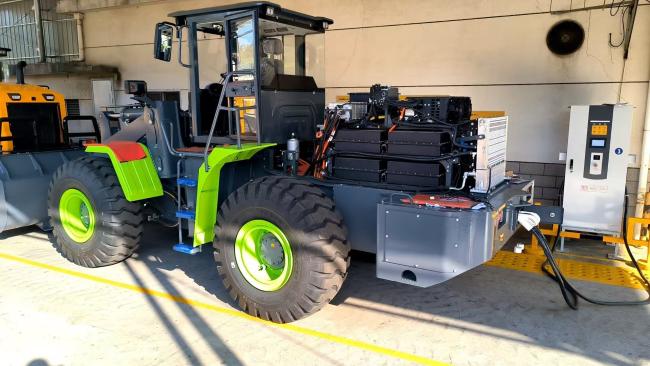

Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle,
large capacity AGV, kyline crane. We have extensive experience in different market.
lf you have any question,please contact us, we will provide the proper solution for you!
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle
batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries
and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah,
which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.
To realized full automation, we has introduced advanced foreign equipment and technology from Korea and
Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1
certifications. We stick to the company concept of human orientation and efficient innovation and we welcome
customization. So, lets join together to promote the development of renewable energy and friendly environment.
batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries
and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah,
which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,
E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.
To realized full automation, we has introduced advanced foreign equipment and technology from Korea and
Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1
certifications. We stick to the company concept of human orientation and efficient innovation and we welcome
customization. So, lets join together to promote the development of renewable energy and friendly environment.
