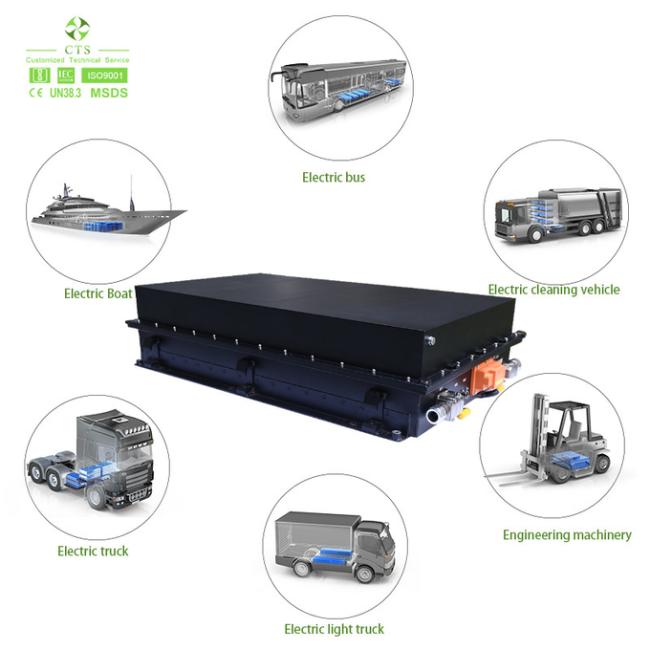

CTS Standard City Bus Battery 600V 650V 614.4V 690Ah 423KWH Lithium Battery System for full electric city bus Logistics vehicles
Price:
USD120-USD200/KWH
MOQ:
2 SETS
Delivery Time:
60-70 DAYS
Brand:
CTS Battery
Product Description
CTS Standard City Bus Battery 600V 650V 614.4V 690Ah 423KWH Lithium Battery System for full electric city bus Logistics vehicles
✅ 14+ Years battery experience.
✅ Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
✅ One-stop customized service for 12V to 1000V battery system.
✅ 30+ people R&D team, expert in custom product development .
✅ Cross-industry battery solution.
✅ 100% OQC testing with 25 detection contents.
✅ Clear Technical Documentation
✅ Clear Technical Documentation
What can we provided?
Battery Specification
3D Drawings of battery pack
Electrical Schematic Diagram
Communication Protocol
Quality Assurance Agreement
| Cell Type - Chemistry | Prismatic- LFP |
| Rated Capacity | 690Ah |
| Rated Voltage | 614.4V |
| Energy | 423.9kWh |
| Series-parallel Connection | 3P192S |
| IP Protection | IP67 |
| Cycle life | ≥3000cycles(90%DOD, 1C) |
| MECHANICAL SPECIFICATIONS | |
| Weight | ~2890±3kg |
| Dimension(L*W*H) | 12*(1200*630*240mm)+a PDU box(L500*W500*H300mm) |
| DISCHARGE/CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 480V |
| Max Continuous Discharging Current | 480A @25℃ with liquid cooling |
| Peak Discharge Current in 5 Seconds | 900A within 5s |
| CHARGE SPECIFICATIONS | |
| Charging Limited Voltage | 700.8V |
| Max Charging current | 200A@380VAC, @25℃, CCS2 DC charging |
| Recommended Charging current | 20A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~55℃ |
| Recommended Operating Temperature | 15~35℃ |
|
Storage Temperature & Humidity Range |
-20~35℃, 45~75%RH (Less than 1 month) |
| -10~35℃, 45~75%RH (Less than 3 months) | |
| 15~35℃, 45~75%RH (Recommended) | |
Standard EV Battery Module facts:

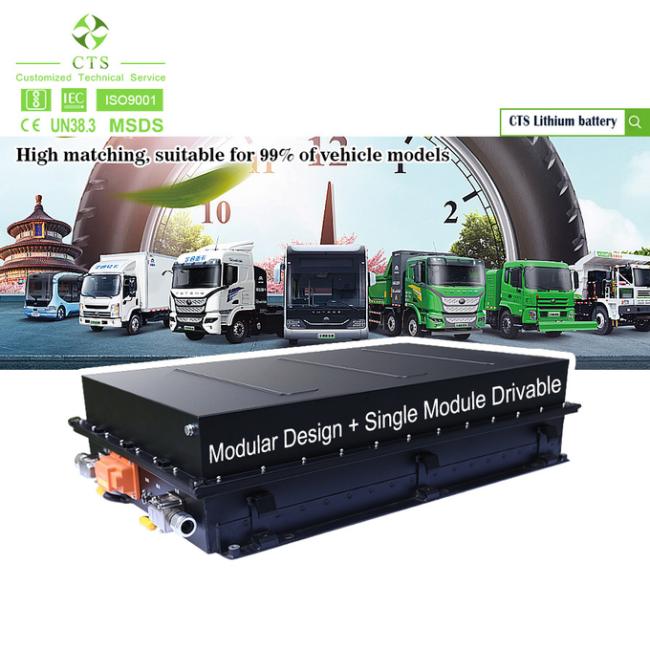

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.
Why choose this Standard EV Battery Module?
✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment
✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
