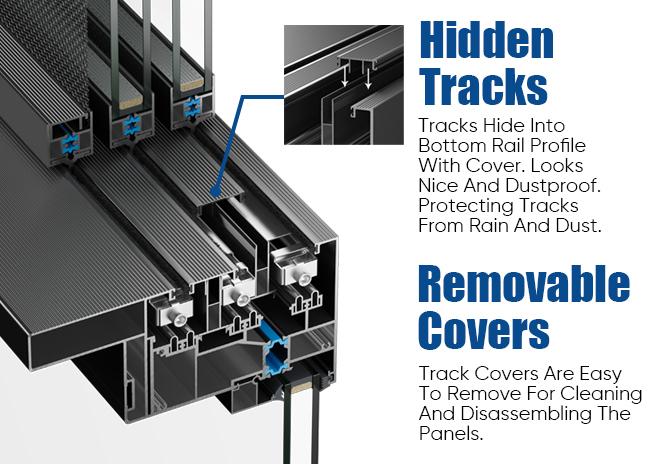

Hidden Six Tacks Exterior Alum Sliding Window Thermal Insulated

Price Negotiable
Price: USD100-125 Per Square Meters
MOQ: 4 Square Meters
Delivery Time: 25-35 Days
Brand: WEINAS
Product Description

Hidden Six Tacks Thermal Insulated Exterior Aluminium Sliding Window



Product Description:

Hidden six tacks thermal insulated exterior aluminium sliding window is a type of window designed for energy efficiency and comfort. It combines the strength and durability of aluminum with "thermal break" technology to prevent heat transfer.

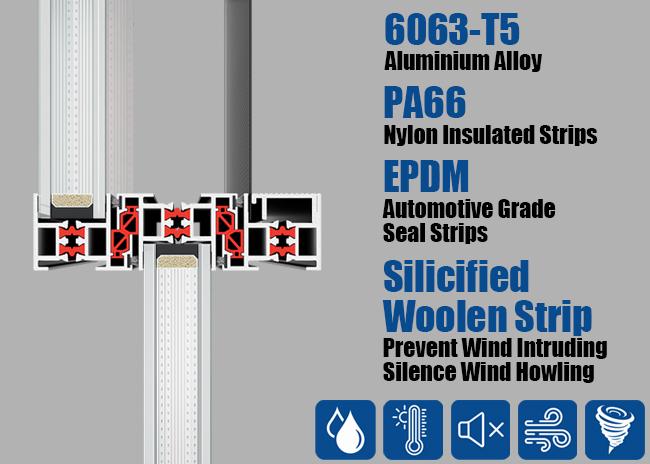

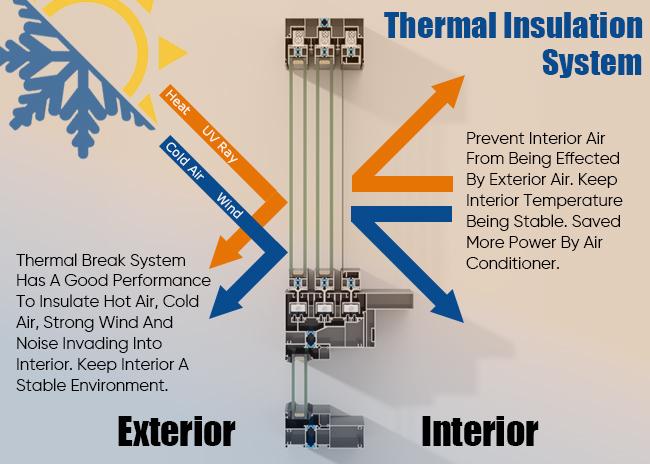

What is "Thermal Break" Technology? Traditionally, aluminum is a highly conductive material, meaning it easily transfers heat and cold. This can lead to significant energy loss and condensation on the window frame. A "thermal break" addresses this issue by introducing a non-metallic, insulating material (often a plastic like polyamide) between the interior and exterior sections of the aluminum frame. This material "breaks" the conductive path, significantly reducing the flow of thermal energy.



Key Benefits:

  1. Energy Efficiency: The primary benefit is reduced heat transfer, which helps maintain a stable indoor temperature. This can lead to a significant decrease in heating and cooling costs, with potential savings of 10% to 25% on energy bills.
  2. Reduced Condensation: By keeping the interior surface of the frame closer to the indoor air temperature, a thermal break minimizes the possibility of moisture condensing on the frame. This helps prevent the growth of mold and mildew.
  3. Enhanced Comfort: With less heat transfer, these windows eliminate cold spots and drafts, creating a more comfortable living environment year-round.
  4. Sound Insulation: The thermal break and other features, such as multi-chambered profiles and insulated glass, can significantly reduce noise from outside.
  5. Durability and Low Maintenance: Aluminum is inherently strong, resistant to rust, warping, and corrosion. The thermal break technology enhances this durability, leading to a long lifespan (often 40-50 years with proper care) and minimal maintenance.
  6. Aesthetic Versatility: Aluminum's strength allows for slim, modern frames that can hold larger panes of glass, maximizing natural light and views. They are available in a wide range of colors and finishes to suit any architectural style.



Specifications

Product Name:

Hidden Six Tacks Thermal Insulated Exterior Aluminium Sliding Window
Model: HIDDEN TRACKS 128

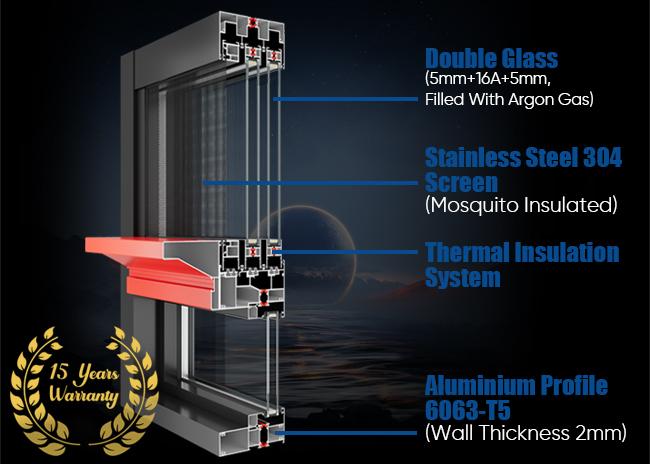

Material: 6063-T5 Aluminium, Glass
Profile Thickness: Panel: 2mm, Frame: 1.6mm, Upper Rail: 1.6mm, Lower Rail: 2mm
Glass: 5mm+16A+5mm Tempered Insulated Glass
Panel: 30mm(Visual Width), 30mm(Panel Thickness)
Wall Occupied: 128mm
Color: Black, Grey, Brown
Feature: Wide Aluminium Armrest
Advantages: Large Visual Area, Thermal Insulated
