Prefabricated Modern Metal Frame Building Construction For Industrial Warehouses Office House
Price:
USD 40-60 / sqm
MOQ:
1000 sqm
Delivery Time:
6 weeks after shop drawing get approval
Brand:
TSIN
Product Description

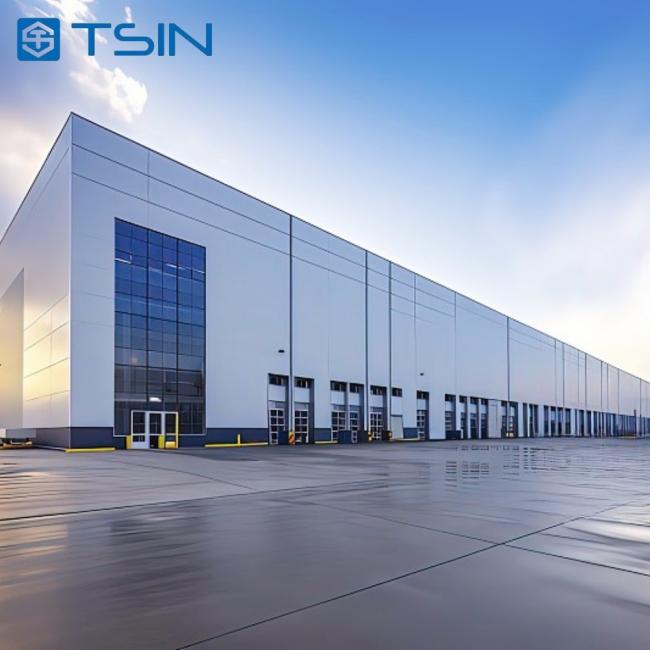

Modern Prefabricated Steel Structure Building Easy-Assemble Recyclable for Industrial Warehouses Office or House Use
Designed for easy assembly and recyclability, this prefabricated steel building is an excellent choice for industrial warehouses, offices, and residential use. Constructed from high-quality steel, it features a robust load-bearing main frame made up of beams and columns.
Key Attributes
| Attribute | Value |
|---|---|
| Warranty | 5 Years |
| Maintenance Costs | Reduced |
| Insulation | EPS, Glasswool, Rockwool, PU On Option |
| Thickness Of Panel | 50mm, 75mm, 100mm, 150mm, 200mm, 250mm |
| Using Life | 50 Years |
| Material Grade | Q355B, Q235B |
| Structure type | Portal frame |
| Design Load | Wind, Snow, Seismic |
| Design software | PKPM, Tekla structures, CAD |
| Sand blasting | Sa 2.5 |
Structural Components
This building includes a comprehensive bracing system to ensure stability and durability:
- Tie bars
- Knee bracing
- Stay bars
- Column bracing
- Horizontal bracing
These components work in conjunction with precision-engineered roof, wall, and floor systems to create a reliable metal structure.
Product Specifications
| Products | Steel Structure Warehouse |
|---|---|
| Frame type | Portal frame, multi-story frame |
| Main frame | Hot-rolled or Welded H beam and column, Q355B steel |
| Bracing components | Tie bar, staying bar, Horizontal bracing, Column bracing |
| Cladding system | Sandwich panel with glass wool, rock wool, PU insulation, Corrugated color steel sheet |
| Accessory | Ridge tile, trim, Gutter, Down pipe, skylight, clerestory |
| Door | Roll up door, industrial section door, swing door, Sliding door |
| Window | PVC window, aluminum window, metal louver |
Advantages Over Traditional Concrete Buildings
- Superior Strength: Utilizes steel plates or sectional steel for enhanced structural integrity and improved seismic resistance.
- Faster Construction: Prefabricated components allow for quick on-site assembly, significantly reducing construction time.
- Sustainability: Steel is both reusable and recyclable, minimizing construction waste and supporting environmental protection.
Key Benefits
- Easy to Assemble: Prefabricated components installed following detailed drawings for efficient construction
- Cost-Effectiveness: Lightweight steel reduces foundation costs and enables earlier project completion
- Simplified Construction: Factory-produced components drastically reduce build times (often completed within weeks)
- Energy-Efficient: Corrugated color steel sheets and sandwich panels enhance insulation and energy savings
- Eco-Friendly: Dry construction methods minimize dust and pollution with recyclable materials
Comparison to Concrete Buildings
- Shorter Construction Period: Minimal on-site welding results in significantly faster build times
- More Environmentally Friendly: Eliminates water use during assembly, reducing dust and pollution
- Better Cost Performance: Total expenses typically 20-30% lower than traditional concrete buildings
- Lighter Structure: Reduces foundation loads compared to brick or concrete alternatives
Frequently Asked Questions
What materials are used in your steel structure buildings?
Our steel structure buildings mainly use high-quality H-section steel, I-section steel, color steel plates and sandwich panels with reliable performance and durability.
What certifications do your steel structure buildings have?
Our products have passed ISO 9001 quality management system certification and CE certification to meet international standards and can be customized according to different market requirements.
How long is the construction period of a steel structure building?
The construction period depends on the size and complexity. Generally, a 4,000 square meter building can be completed in about 40 days due to prefabricated components.
Can steel structure buildings be customized according to needs?
Yes, we can customize the design, size, and configuration of steel structure buildings according to customers' specific usage scenarios and functional requirements.
Do you provide installation guidance for steel structure buildings?
We provide detailed installation drawings and instructions. For large projects, we can also send professional engineers to the site for guidance to ensure smooth installation.
