Q235B Q355B High Strength Prefab Steel Structure Modern Office Building

Q235B & Q355B High Strength Prefab Steel Structure Modern Office Building

1. Product Overview

The Q235B & Q355B High Strength Prefab Steel Structure is an advanced modular building system designed for modern office buildings, warehouses, factories, and commercial facilities. All steel components are prefabricated in the factory with precision cutting, drilling, and welding, then assembled on site with high-strength bolts. This prefabrication ensures fast erection, consistent quality, and reduced labor costs. The system provides excellent load-bearing capacity, durability, and design flexibility to meet various project requirements.

2. Steel Structure Types and Technical Knowledge

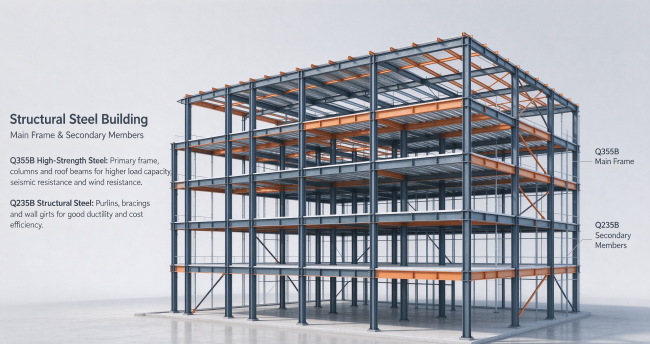

The main frame adopts two grades of structural steel, each serving a specific function:

1. Q355B High-Strength Steel: Used for the primary frame, columns, and roof beams. With a minimum yield strength of 355 MPa, it offers superior load capacity while reducing overall steel consumption. Ideal for multi-story office buildings, Q355B provides better seismic resistance and wind resistance performance.
2. Q235B Structural Steel: Applied to secondary members such as purlins, bracings, and wall girts. With a yield strength of 235 MPa, Q235B offers good ductility and cost efficiency, making it suitable for non-critical structural components.

Key technical features include hot-dip galvanized or painted surface treatment for corrosion protection, factory-welded joints for precision, and bolt-connected assembly for quick and easy installation.

3. Envelope and Cladding Systems

The building envelope protects the interior from weather and provides aesthetic value. Two cladding options are available:

1. Single Skin Panels: Color steel sheets with a protective coating. This is the most economical option, offering waterproofing and a clean appearance, though it provides no thermal insulation.

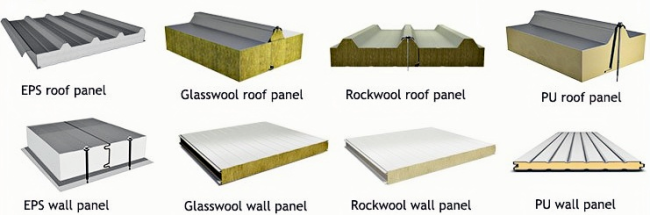

2. Sandwich Panels: Composite panels with insulation cores made of rock wool, polyurethane (PU), or glass wool with PU edge sealing. These panels provide excellent thermal insulation, fire resistance, and soundproofing, making them ideal for office buildings that require comfortable indoor temperatures.

The cladding system can be customized with different panel colors, profiles, and thicknesses to suit both functional needs and architectural aesthetics.

4. Ventilation System

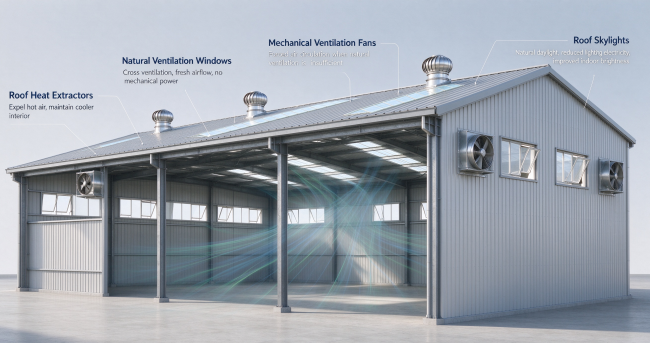

A proper ventilation system ensures fresh air circulation and comfortable working conditions. We offer multiple ventilation solutions:

1. Roof Heat Extractors: Automatically expel hot air that rises to the ceiling, maintaining a cooler interior.
2. Natural Ventilation Windows: Allow cross-ventilation and fresh airflow without mechanical power.
3. Mechanical Ventilation Fans: Provide forced air circulation when natural ventilation is insufficient.
4. Roof Skylights: Bring natural daylight into the building, reducing electricity consumption for lighting while improving indoor brightness.

The ventilation design can be customized based on the building size, local climate, and specific functional requirements.

5. Customization Service

Every project is unique, and our engineering team provides fully customized design services:

1. Building Dimensions: Length, width, eave height, and span are designed to match your site and space requirements.

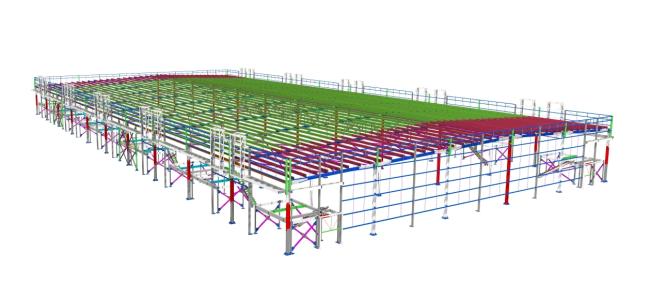

2. Structural Design: Our engineers perform complete structural calculations based on local wind speed, seismic PGA, and building code requirements to ensure safety and compliance.
3. Layout Configuration: Door and window positions, interior partitions, and mezzanine floors are arranged according to your operational needs.
4. Material Selection: Choose from different steel grades, cladding types, and panel colors to balance budget and performance.

We provide complete structural drawings, erection plans, and detailed installation guidance for every customized project.

6. After-Sales Support System

Our after-sales service ensures long-term satisfaction and building performance:

1. Installation Guidance: 24/7 online technical support and detailed erection drawings and installation manuals.
2. On-Site Supervision: Optional experienced engineers can be dispatched to supervise installation and train your construction crew.
3. Quality Warranty: The main steel structure is covered by a comprehensive warranty, with prompt response to any technical issues.
4. Spare Parts Supply: Long-term availability of spare parts and accessories for convenient maintenance and future expansion.
5. Technical Consultation: Continued engineering consultation throughout the building's service life.

7. Conclusion

The Q235B & Q355B prefab steel structure office building combines high-strength engineering, customizable design, efficient construction, and comprehensive after-sales support. Whether you need a cost-effective warehouse or a modern multi-story office, our system delivers durable, safe, and economical solutions. Contact us today for a detailed quotation tailored to your specific project.

8.Technical Specifications

9.Quality control system

Raw material quality control

Thickness tolerance <0.25mm

Yield point and tensile strength test

Supply traceable mill certificate

Third party inspection are welcomed

Structural steel fabrication quality control

Apply 100% dimension tolerance

Apply ultrasonic testing on welding line standard and procedure

Third party inspection are welcomed

 Anti-corrosion system quality control

Apply shot blasting to reach grade Sa 2.5 , Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um

Apply paint primer within 4 hours after shot blasting, Dry Film Thickness (DFT) >75μm or as per requirement.
