High Performance T45 Thread Alloy Steel Wear Resistant Shank Adapter For Ingersoll Rand Rock Drills
When it comes to demanding excavation in hard rock formations, the precision of your drilling tools determines your project's profitability. Our YH65-T45-500mm Shank Adapter is engineered to bridge the gap between high frequency impact and long term durability. Designed specifically for Ingersoll Rand rock drills, this component ensures seamless power transmission from the drifter to the drill string.
- Compatible Model: Ingersoll Rand YH65
- Total Length: 500mm
- Thread Configuration: T45 (Optimized for heavy-duty drilling)
- Material Composition: Premium 23CrNi3Mo Alloy Steel
- Precision Spline: 64.3mm Diameter / 85mm Length (Straight Type)
- Net Weight: 6.1kg
- Premium 23CrNi3Mo Steel: We utilize high-grade alloy steel combined with advanced heat treatment (carburizing) to ensure the shank can withstand the extreme stress of hard rock excavation without premature fatigue.
- Optimized Energy Transfer: The perfectly flat and smooth striking surface, coupled with a cross-section perpendicular to the axis, ensures maximum impact energy is delivered to the bit, significantly increasing penetration rates.
- Extended Service Life: Our mature processing technology minimizes wear on the rock drill's internal bushings, helping operators reduce maintenance costs and minimize downtime.
Beyond the YH65 series, our manufacturing facility provides high-quality shank adapters for a full range of Ingersoll Rand models, including:
- YH Series: YH30, YH50, YH65RP, YH70, YH70RP, YH80A, YH80RP, YH95
- VL Series: VL-140 and more
Our tools are the preferred choice for global partners in Open-pit Mining, Underground Quarrying, and Tunneling projects. Whether you are dealing with abrasive granite or complex geological layers, our shank adapters provide the stability your fleet needs.
| Model | Thread | Diameter | Length (mm) | Weight (Kg) | Flushing (mm) | HENGLONG P/N |
|---|---|---|---|---|---|---|
Ingersoll Rand:350 |
R32(1¼") | 32 | 380 | 2.1 | 9-11 | 4350-32R32-0380-23 |
| T38(1½") | 32 | 380 | 2.3 | 9-11 | 4350-32T38-0380-23 | |
Ingersoll Rand:Hydrastar200 |
R32(1¼") | 45 | 351 | 3.7 | - | 4Hydrastar200-45R32-0351-23 |
Ingersoll Rand: VL120, VL140 |
R32(1¼") | 44.3 | 381 | 3.4 | 14.3 | 4VL120-44.3R32-0381-23 |
| R38(1½") | 44.3 | 381 | 3.6 | 14.3 | 4VL120-44.3R38-0381-23 | |
| T38(1½") | 44.3 | 381 | 3.7 | 14.3 | 4VL120-44.3T38-0381-23 | |
| T45 (1¾") | 44.3 | 381 | 3.9 | 14.3 | 4VL120-44.3T45-0381-23 | |
Ingersoll Rand: VL120, VL140 |
T38(1½") | 44.3 | 446 | 4.0 | 14.3 | 4VL120-44.3T38-0446-23 |

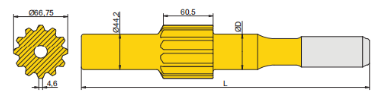

Ingersoll Rand: EVL130, VL140 |
T38(1½") | 44.2 | 350 | 3.9 | 14.3 | 4EVL130-44.2T38-0350-23 |
| T45 (1¾") | 44.2 | 350 | 4.2 | 14.3 | 4EVL130-44.2T45-0350-23 | |
Ingersoll Rand:YD90M |
R32(1¼") | 38 | 350 | 2.6 | 9-11 | 4YD90M-38R32-0350-23 |
| SR32(1¼") | 38 | 350 | 2.5 | 12.7 | 4YD90M-38SR32-0350-23 | |
Ingersoll Rand:YH45,YH50,YH55 |
T38(1½") | 38 | 440 | 3.8 | 16 | 4YH45-38T38-0440-23 |
Ingersoll Rand:YH50RP |
T38(1½") | 38 | 560 | 4.9 | 16 | 4YH50RP-38T38-0560-23 |
Ingersoll Rand:YH60A |
T45 (1¾") | 44.3 | 530 | 6.1 | 14.3 | 4YH60A-44.3T45-0530-23 |
Ingersoll Rand:YH65,YH70 |
T38(1½") | 45 | 500 | 5.2 | 19 | 4YH65-45T38-0500-23 |
| T45 (1¾") | 45 | 500 | 5.5 | 19 | 4YH65-45T45-0500-23 | |
Ingersoll Rand:YH65RP |
T38(1½") | 45 | 700 | 7.8 | 19 | 4YH65RP-45T38-0700-23 |
| T45 (1¾") | 45 | 700 | 7.9 | 19 | 4YH65RP-45T45-0700-23 | |
Ingersoll Rand:YH80A |
T38(1½") | 51 | 500 | 5.5 | 19 | 4YH80A-51T38-0500-23 |
| T45 (1¾") | 51 | 500 | 5.7 | 19 | 4YH80A-51T45-0500-23 | |
| T51 (2") | 51 | 500 | 6.4 | 19 | 4YH80A-51T51-0500-23 | |
Ingersoll Rand:YH80ARP |
T45 (1¾") | 51 | 700 | 8.8 | 19 | 4YH80ARP-51T45-0700-23 |
| T51 (2") | 51 | 700 | 9.3 | 19 | 4YH80ARP-51T51-0700-23 | |
Ingersoll Rand:YH95, YH100 |
T51 (2") | 51 | 625 | 8.2 | 23 | 4YH95-51T51-0625-23 |
Ingersoll Rand:YH95RP,YH100RP |
T51 (2") | 51 | 840 | 11.6 | 23 | 4YH95RP-51T51-0840-23 |
Ingersoll Rand: YH110VRP, Y135RP |
T51 (2") | 55 | 900 | 14.2 | - | 4YH110RP-55T51-0900-23 |
Ingersoll Rand: YH110V, YH135 |
T45 (1¾") | 55 | 728 | 11.4 | - | 4YH110V-55T45-0728-23 |
| T51 (2") | 55 | 728 | 11.7 | - | 4YH110V-55T45-0728-23 |
