High Quality Automation for Swing Gates Wall Mount Side Electric Rc System Singal Arm Swing Gate Opener

Price Negotiable

Price: 95-110USD

MOQ: 1

Delivery Time: 7-15days

Product Description

High Quality Automation for Swing Gates Wall Mount Side Electric Rc System Singal Arm Swing Gate Opener

Input Voltage: 24V	Power Supply: 45W
Control Interface: COM/NO dry contact	Remote Control Frequency: 430MHz
Static Power: ≈ 1W	Motor Speed: 1800RPM
Reduction Ratio: 1:200	Output Torque: 78N·m
Motor Shaft Diameter: 26mm	Motor Type: DC brushless motor
Bluetooth Specification: BLE low-power	Electric Lock Output: 1.2A (supports 2×280KG magnetic locks)
Working Temperature: -35℃ to 85℃	Access Control Output: 0.8A
Operating Humidity: 30% to 80% (no condensation)	Remote Control Distance: ≈ 15M (interference-free)
Opening/Closing Speed: Adjustable 3-6S	Durability: 1 million+ cycles
Waterproof Rating: IPX4 (splash proof)

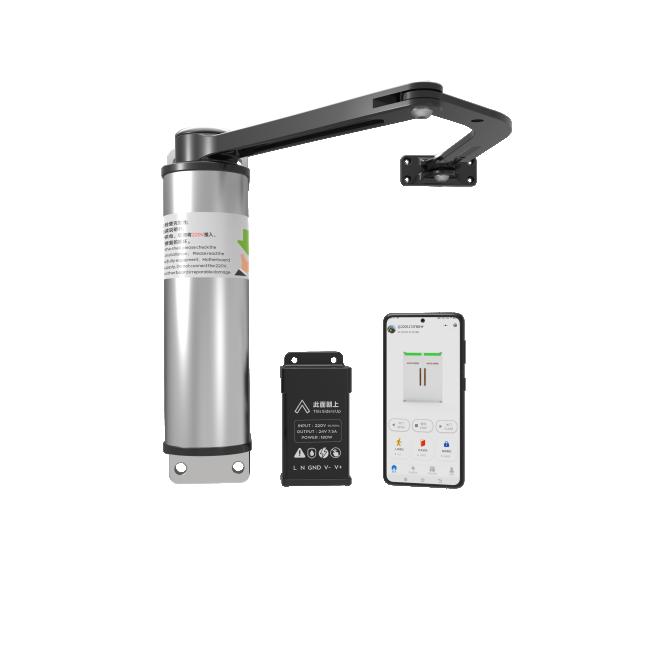

1. H3 Pro Side mounted Automatic Door Opener offers intelligent high performance door automation with seamless safe and flexible operation suitable for both commercial and residential spaces
2. Widely compatible with single double sliding doors KFC doors aluminum alloy doors fire doors wooden doors and all inward outward opening door types and can be paired with access control face recognition and mobile remote control systems for use in offices hospitals malls villas and more
3. Equipped with a robust 60W motor with 80N m high torque 220V input and 24V working voltage the compact opener with size 350 83 133mm and weight 8 6KG delivers powerful and stable performance to drive all conventional door bodies
4. Comes with multi spec installation accessories including expand chassis quick wire and dovetail wire packages fitting wooden doors cement walls metal brick structures and small size mounting positions for quick and hassle free installation with clear step by step guidance
5. Features full parameter adjustability to fine tune opening closing speed deceleration buffer angle acceleration braking time and low speed operation zones achieving smoothed and customized door movement and eliminating collision jitter and noise
6. Built in intelligent safety protections with customizable collision sensitivity 1 50 and anti collision force 10 255 enable instant obstacle response and safety auto reverse to prevent injury and damage a motor locking function secures the fully open door to avoid swaying
7. Provides humanized and versatile control with custom door hold time 0 255s for automatic closing delayed card swipe opening 1 20 0 1s for access control compatibility and one click left right opening direction switch
8. Supports single double and mother son door types for mother son doors it allows custom switch delay 0 100 0 1s and waiting angle 0 90 for precise main secondary door linkage without coordination errors
