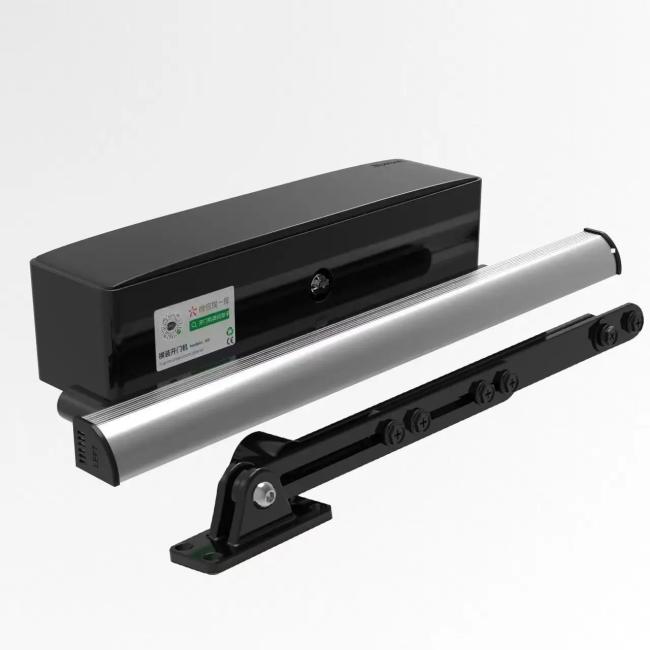

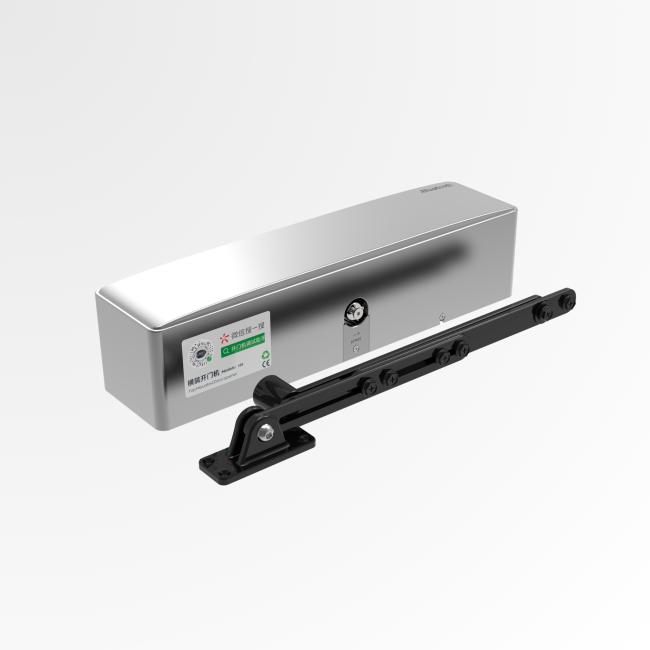

Safe Anti-pinch Swing Door Motor with External Remote Control for Hotel Entrance

Safe Anti-pinch Swing Door Motor with External Remote Control for Hotel Entrance

• 1. safety:24V DC power supply ensures personal safety
• 2. energy saving:static power less than 1 watt maximum operating power 60W
• 3. adjustable speed:independent adjustment of door opening and closing speed
• 4. smooth operation:multi stage speed design for linear and stable working state
• 5. quiet running:working noise below 50dB
• 6. multiple protections:motor overcurrent overload short circuit fault power reverse connection protection
• 7. pedestrian protection:obstruction rebound and collision prevention function
• 8. signal compatibility:supports relay signals and voltage signals input

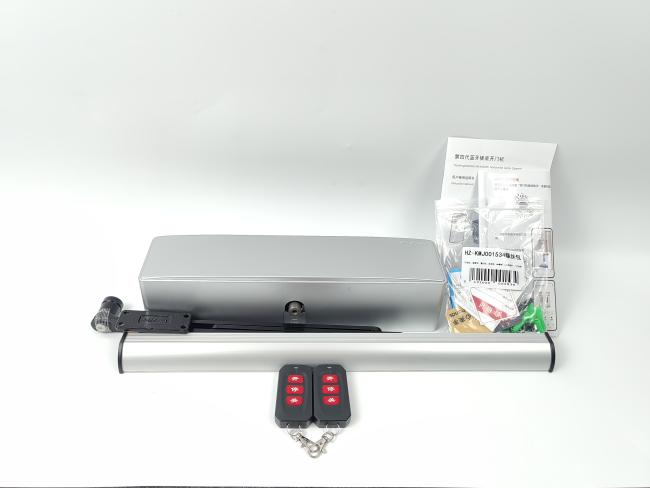

• 9. remote control support:430Mhz frequency 2 remote controls included with up to 60 learning capacity
• 10. multi door adaptation:supports single double mother and child door types
• 11. communication function:485 communication for simultaneous opening and closing of two doors
• 12. environmental adaptability:working temperature -35℃ to 85℃ IPX4 waterproof level
• 13. bluetooth function:built-in LBE bluetooth module with switchable setting
• 14. flexible parameter setting:rich F series parameters for personalized door running adjustment
• 15. convenient operation:four button control board with clear short long press functions
• 16. quick modes:remote control enabled normally open and human body induction cancellation mode
• 17. intelligent display:screen real-time shows motor and door working status
• 18. precise anti collision:adjustable anti collision sensitivity and strength
• 19. professional lock control:compatible with electromagnetic and mechanical lock adjustable magnetic lock force
• 20. port expansion:IN1 IN2 human induction ports with redefinition function
• 21. master slave control:adjustable delay and waiting angle for master slave door synchronous operation

• Parameter	Specification
  Input Voltage	24V
  Power Supply	30W
  Control Interface	COM/NO Dry Contact
  Remote Control Frequency	430MHz
  Static Power Consumption	≈ 1W
  Motor Speed	1800RPM
  Reduction Ratio	1:200
  Output Torque	80N·m
  Motor Shaft Diameter	φ 16mm
  Motor Type	DC Brushless Motor
  Bluetooth Specification	BLE Low-Power Bluetooth
  Electric Lock Port Output Current	1.2A (supports 2×280KG magnetic locks)
  Working Temperature	-35℃ to 85℃
  Access Control Port Output Current	0.8A (face recognition device requires separate power supply)
  Operating Humidity	30% to 80% (no condensation)
  Remote Control Distance	≈ 15M (interference-free state)
  Door Opening/Closing Speed	Adjustable from 3-6 seconds
  Durability	1 million+ cycles
  Waterproof Rating	IPX4 (waterproof and splash proof)
