Hybrid Solar Storage Inverter Touchable Screen 6.2KW 6200W Dual AC 2.0 Peak Power Support Single Phase 220vac Parallel
Price:
Negotiable
MOQ:
Low MOQ
Delivery Time:
Negotiable
Brand:
JUNEXT
Product Description

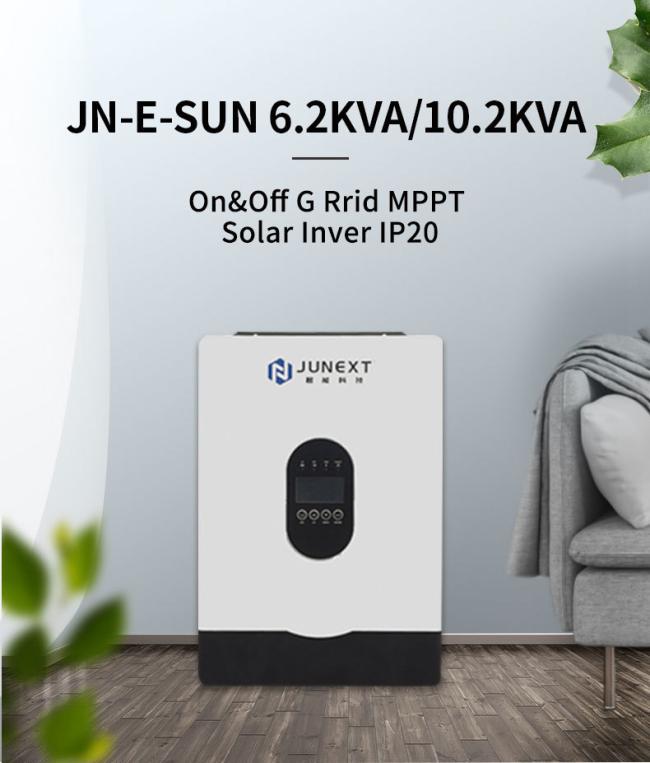

Hybrid Solar Storage Inverter Touchable Screen 6.2KW 6200W Dual AC 2.0 Peak Power Support Single Phase 220vac Parallel

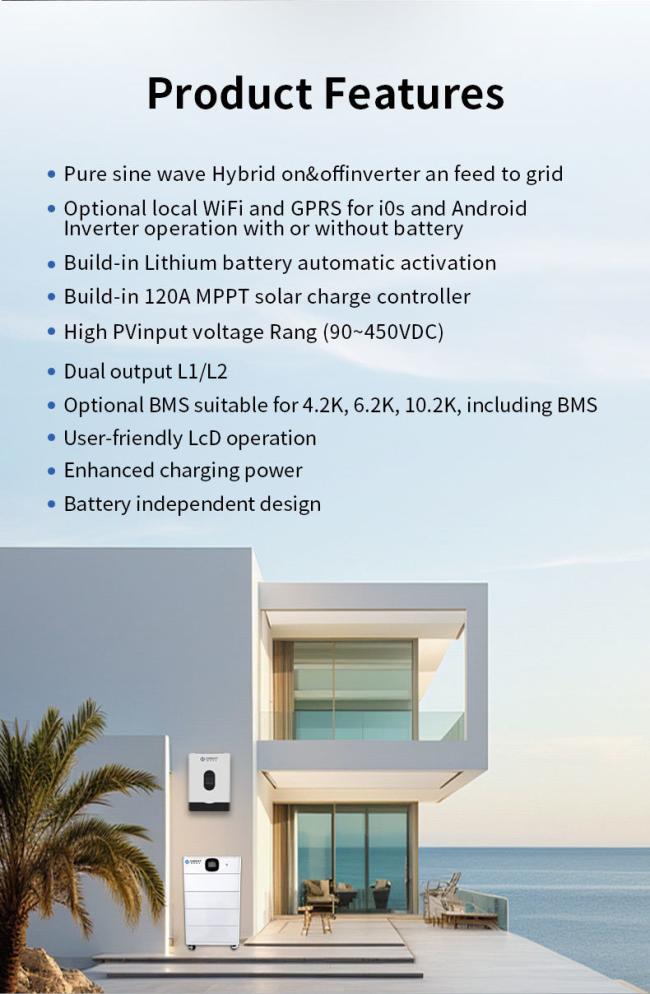

Pure sine wave Hybrid on&offinverter an feed to grid
Optional local WiFi and GPRS for i0s and AndroidInverteroperation with or without battery
Build-in Lithium battery automatic activation
Build-in 120A MPPT solar charge controller
High PVinput voltage Rang (90~450VDC)
Dual output L1/L2
Optional BMS suitable for 4.2K,6.2K,10.2K,including BMS
User-friendly LcD operation
Enhanced charging power
Batteryindependent design
Product Parameters
|
New Model |
JN-E-SUN 6.2KVA/48V |
| Max.PV Power | 6500W |
| Rated Power | 6200VA |
| Max.Charge Current | 100A |
| Battery | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Overcharge Protection | 63VDC |
| Battery Type |
Compatible With GEL,AGM,Lithium battery |
|
Grid Input |
|
| Voltage |
230VAC |
| Selectable Voltage Range |
170-280VAC(For Personal Computers),90-280 VAC (For Home Appliances) |
| Frequency Range |
50 Hz/60 Hz (Auto sensing) |
| Efficiency(AC Mode) |
98% |
|
Ac Output |
|
| AC Voltage Regulation(Batt.Mode) |
230 VAC 士 5% |
| Surge Power |
12400VA |
| Efficiency (Peak) |
90%-94% |
| Transfer Time |
10 ms(For Personal Computers);20 ms (For Home Appliances) |
| Waveform |
Pure sine mave |
|
Dual Loads Acoutput |
|
| Full Load |
6200VA |
| Maximum Main Load |
6200VA |
| Maximum Second Load(Battery Mode) |
2100W |
| Main Load Cut Off Voltage |
44VCD |
| Main Load Retum Voltage |
54VCD |
|
Solar Charger&Ac Charger |
|
| Solar ChargerType |
MPPT |
| Maximum PV Array Power |
6500W |
| Max. input Current |
27A |
| MPPT Range @ Operating Voltage |
90-450VDC |
| Maximum PV Aray Open Circuit Vollage |
500 VDC |
| Maximum Solar Charge Current |
100A |
| Maximum Ac Charge Curent |
100A |
| Maximum Charge Curent |
100A |
| Physical | |

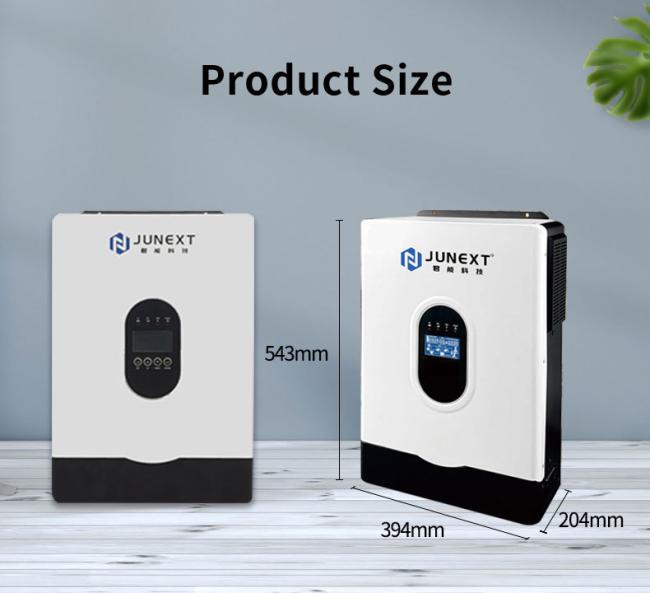

| Packing Dimension,D*W*H(mm) |
543*394*204 |
| Net Weight (kg) |
10.5 |
| Communication interface |
USBIRS232/WIFI/GPRS |
|
Operating Environment |
|
| Humidity |
5% to 95%6 Relative Humidity(Non-condensing |
| Operaling Temperature |
-10℃ to 50℃ |
| Storage Temperature |
-10℃ to 50℃ |
