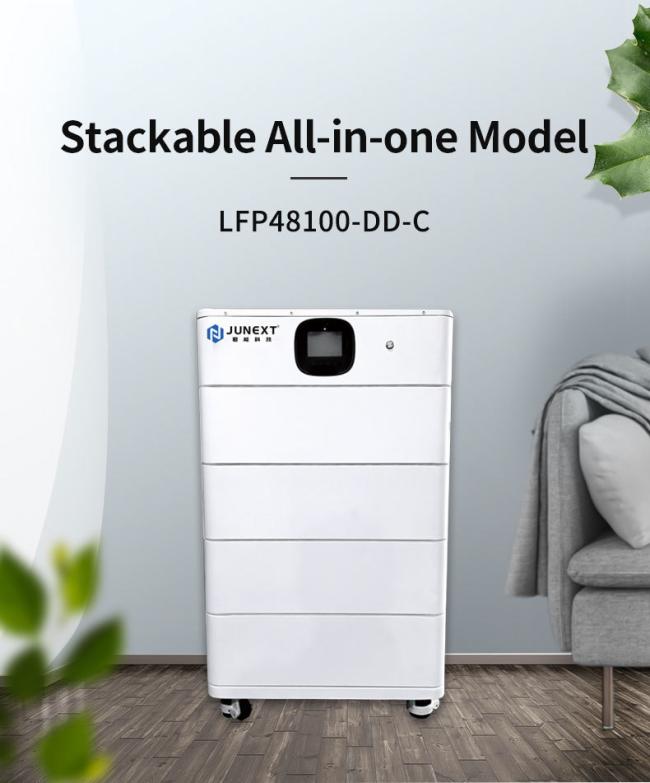

LP 10kwh Wall-Mounted 51.2 V 200AH Grade a LiFePO4 Battery
| Battery Energy Storage | ||||
| Battery Energy Storage | 1Modules | 2Modules | 3Modules | 4Modules |
| Battery Chemistry | LiFePO4 | |||
| Default Volage(V) | 51.2V | |||
| Cell Capacity(Ah) | 100Ah | 200Ah | 300Ah | 400Ah |
| Capacity | 5.12KWh | 10.24KWh | 15.36KWh | 20.48KWh |
| Max.Charging Voltagy(V) | 58.4V | |||
| Discharge Cut-off(V) | 43.2V | |||
| Standard Charging Current(A) | 50A | |||
| Standard Discharging Current(A) | 50A | |||
| Max.Operation Current(A) | 100A | |||
|

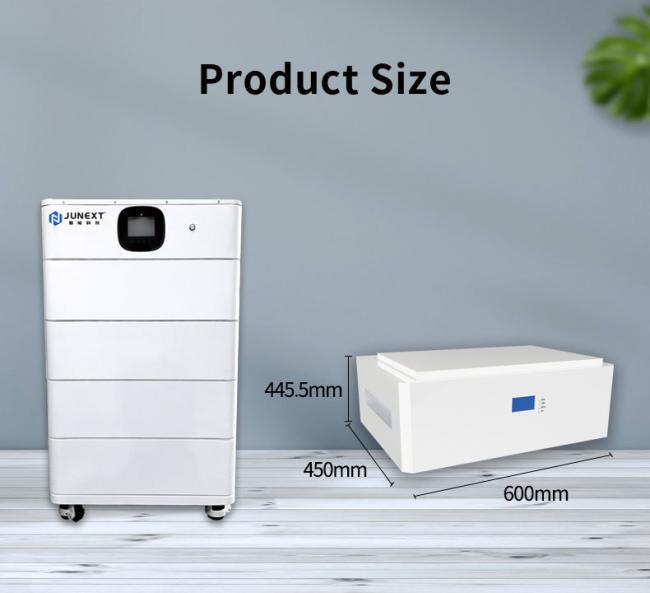

Dimensions(W*D*H) |
600*450*445.5 |
600*450*627 |
600*450*808.5 |
600*450*990 |
|
Package Dimension(W*D*H) |
650*500*270 | |||
|
Net Weight Gross Weight |
50KG 52KG |
100KG 104KG |
150KG 156KG |
200KG 208KG |
|
General Parameters |
||||
| Scalability |
Max.15 systems in paeallel |
|||
| Storage Conditions |
10℃~45℃(0℃~45℃ Recommended)up to 90%RH,non-condensing Inital SOC:30% |
|||
| Operating Temperature |
Chare:0℃~45℃ Discharge:-10℃~45℃ |
|||
| Cooling | Natural Cooling | |||
| Cycle Life | 6000 Cycles | |||
| Communication | CAN,RS485,RS232 | |||
| System Characteristic | ||||
| Battery Compliances | IEC62619:2017,EN IEC6100-6 | |||
| Transportation Certification | UN38.3,MSDS,CE | |||
| Installation Method | Floor Mounting | |||
| IP Rating | IP30 | |||

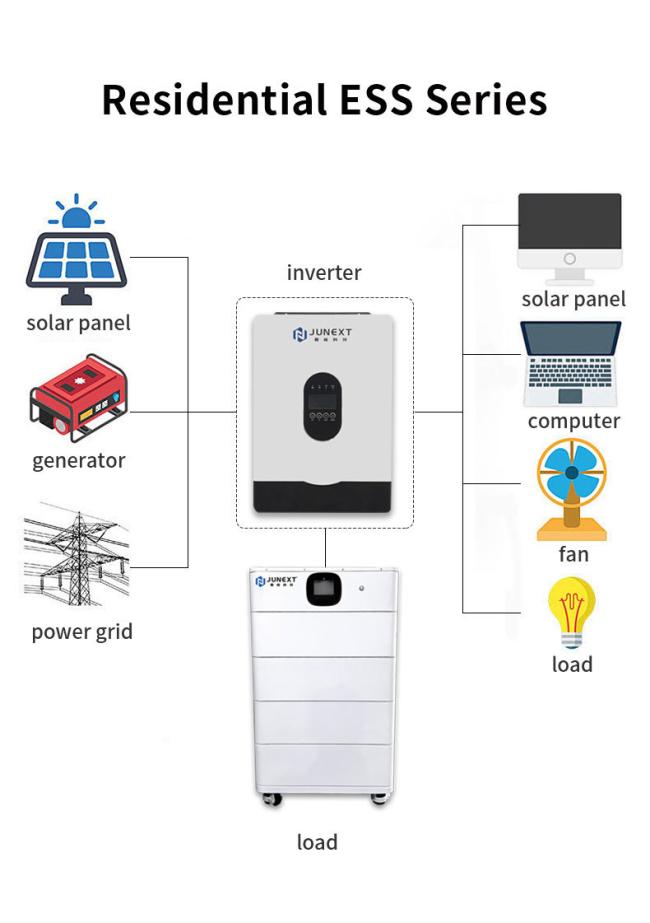

Boasting an IP30 protection rating, this Floor-Standing Lithium Battery delivers strong dust and moisture resistance, ensuring top performance and a long service life even in harsh environments. Ideal for storing solar panel surplus energy or serving as a reliable backup power source, it meets diverse residential energy needs with a 5.12KWh nominal energy capacity, cutting grid reliance and maximizing solar benefits. Powered by LiFePO4 chemistry, it offers superior safety, stability and efficiency, plus long cycle life, fast charging and high energy density—perfect for home energy storage. Equipped with CAN, RS485, RS232 protocols, it integrates seamlessly with inverters and monitors for real-time energy system control. Its natural cooling system regulates cell temperature, ensuring stable operation and extended lifespan even during peak demand. A comprehensive solution for floor mounted home/solar battery needs, it’s a smart investment for homeowners pursuing solar energy benefits and energy independence.

Brand Name: Junext
Place of Origin: Shenzhen
Certification: ISO, UN38.3, CE, MSDS
Minimum Order Quantity: Low MOQ
Delivery Time: 30-60 days
Payment Terms: T/T
Supply Ability: 200pcs/day
Transportation Certification: UN38.3, MSDS, CE
Battery Compliances: IEC62619:2017, ENIEC61000-6
Default Voltage: 51.2V
Storage Conditions: -10°C to 45°C
Cycle Life: 6000 Cycles
Keywords: Floor Mounted Home Lithium Battery, Home energy storage on wheels, Floor Mounted Solar Battery
FAQ:
A: The brand name is Junext.
Q: Where is the Floor-Standing Lithium Battery manufactured?
A: The product is manufactured in Shenzhen.
Q: What certifications does the Floor-Standing Lithium Battery have?
A: The product is certified with ISO, UN38.3, CE, and MSDS.
Q: What is the minimum order quantity for the Floor-Standing Lithium Battery?
A: The product has a low MOQ.
Q: What are the payment terms for purchasing the Floor-Standing Lithium Battery?
A: The payment terms are T/T.
