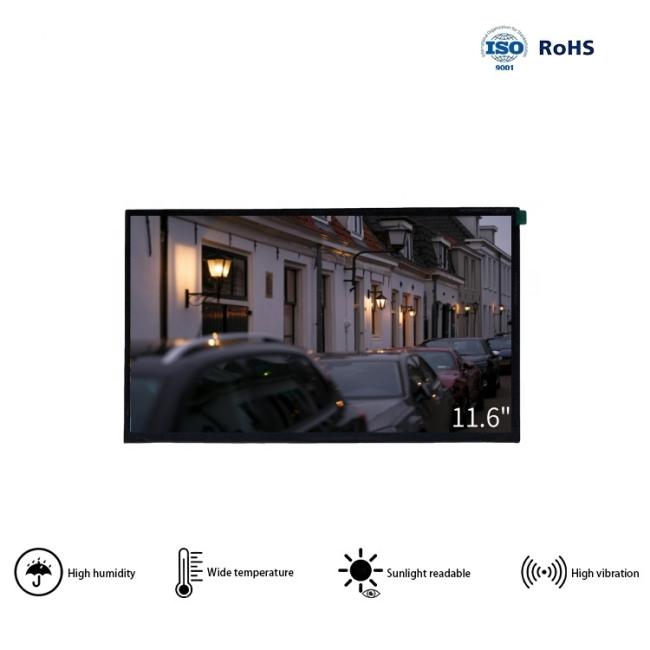

11.6 Inch TFT HD Screen 30 PIN EDP LCD Screen 220nits Industrial
Price:
US $ 19.85
MOQ:
1000
Delivery Time:
31-35 work days
Product Description
11.6 Inch 1920×1080 Resolution 220nits FT LCD Display Module with 30 PIN EDP
Technical Specifications
| Display Size | 11.6" TFT |
| Dimensions | 263.4 × 157.3 × 2.55 mm |
| Display Area | 256.32 × 144.18 mm |
| Resolution | 1920 × 1080 pixels |
| Brightness | 220 cd/㎡ |
| Interface | 30 PIN EDP |
| Viewing Angle | IPS |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Product Overview
This high-performance 11.6-inch TFT-LCD module features Full HD resolution (1920×1080 pixels), 220 nits brightness, and a 30-pin eDP interface. Engineered for superior visual performance and reliable operation, it offers excellent luminance adaptability in various lighting conditions. The compact form factor and robust construction make it ideal for integration into mobile computing devices, semi-outdoor applications, and educational terminal systems.
Key Features
- Full HD 1920×1080 resolution for crisp, detailed images
- 220 nits brightness for clear visibility in various lighting
- 30-pin eDP interface for reliable signal transmission
- IPS technology for wide viewing angles
- Compact and lightweight design (2.55mm thickness)
- Wide operating temperature range (-20°C to 70°C)
- Ideal for industrial, educational, and mobile applications
-
![]()
![]()
