High Efficiency PCB Soldering Machine 0.4-0.8Mpa Multifunctional 500mm/S Cutting Performance
High Efficient PCB Hot Bar Soldering Machine for CCD HD display Exported Vietnam
|
Motor drive system |
Servo / stepper motor |
|
Pressure of indenter |
0.02-0.8Mpa Adjustable pressure accuracy, ± 0.05Mpa |
|
Cutting performance |
500mm/s |
|
Hold time |
1-100S |
|
Cutting speed Resolution |
±0.01mm |
|
Configuration |
X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality) |
|
Each piece of warm-up time |
1-2 sec / segment |
|
PCB positioning fixture load/unload |
Manual |
|
PCB thickness |
0.4-4mm |
|
Working area |
650*450mm |
|
Working Size |
150mm x 200mm |
|
Spindle motor speed |
50000r/m |
|
Spindle motor cooling |
Air-cooled |
|
Machine dimension |
980*580*615mm |
|
Weight |
135KG |
|
Security settings |
emergency stop switch |
1.Japan high-speed temperature controlling system Pulse heating, easy set soldering parameter, can be set to different multi-zone temperature control sensor detected by the system.
2.Microcomputer control system used to keep the equipment stability.
3. High quality titanium alloy pressure of indenter and imported temperature sensor, to ensure accurate heating temperature.
4.High quality shaft system allows the system to quickly ramp, reduce the period of time, Improve productivity, maintaining high
precision
5.Use high-quality hardware to ensure high rigidity and highperformance All screws are protected from dust and dirt from entering to improve the life and performance of the shaft.
6.Use high-quality hardware to ensure high rigidity and high performance

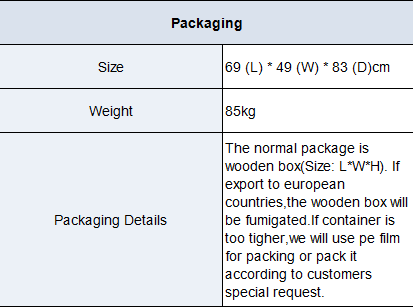

Packing & Delivery
