17W UV Laser Depaneling Machine Water Cooling For FPC FR4 Materials
Price:
USD 2000-9999
MOQ:
1 Set
Delivery Time:
3 work days
Brand:
ChuangWei
Product Description
Laser PCB Depaneling Machine 17W 2.0mm PCB Thick Groove V Cut Machine
Product Specifications
| PCB thickness | 0.1-2.0mm |
| PCB material | FPC/FR4 |
| Data input formats | Gerber, X-Gerber, DXF |
| Cooling | Water |
| Weight | 1500kgs |
| Name | UV Laser PCB Separator |
Product Description
17W UV Laser PCB Separator for Precision Cutting of Complex Contours
PCB depaneling (singulation) laser machines have become increasingly popular as boards become smaller, thinner, and more complex. Traditional mechanical methods like routing and die cutting create mechanical stress that can damage delicate circuits, especially in flexible PCBs. Our UV laser solution provides a precise, non-contact depaneling method that eliminates these risks while maintaining high throughput.
Technical Specifications
| Laser class | 1 |
| Max. working area (X x Y x Z) | 300 mm x 300 mm x 11 mm |
| Max. recognition area (X x Y) | 300 mm x 300 mm |
| Max. material size (X x Y) | 350 mm x 350 mm |
| Data input formats | Gerber, X-Gerber, DXF, HPGL |
| Positioning accuracy | ± 25 μm (1 Mil) |
| Diameter of focused laser beam | 20 μm (0.8 Mil) |
| Laser wavelength | 355 nm |
| System dimensions (W x H x D) | 1000mm*940mm*1520 mm |
| Weight | ~ 450 kg (990 lbs) |
| Power supply | 230 VAC, 50-60 Hz, 3 kVA |
| Cooling | Air-cooled (internal water-air cooling) |
| Ambient temperature | 22 °C ± 2 °C @ ± 25 μm / 22 °C ± 6 °C @ ± 50 μm |
| Humidity | < 60 % (non-condensing) |
| Required accessories | Exhaust unit |
Our Advantages
- Global Technical Support: Engineers available for overseas machinery training and technical assistance
- Comprehensive Warranty: One year warranty for machines (excluding accessories) with free replacement parts (customer covers freight)
- Responsive Service: Dedicated customer support team providing prompt solutions and value creation
- Proven Expertise: 12 years of manufacturing experience with continuous R&D improvements to meet market demands

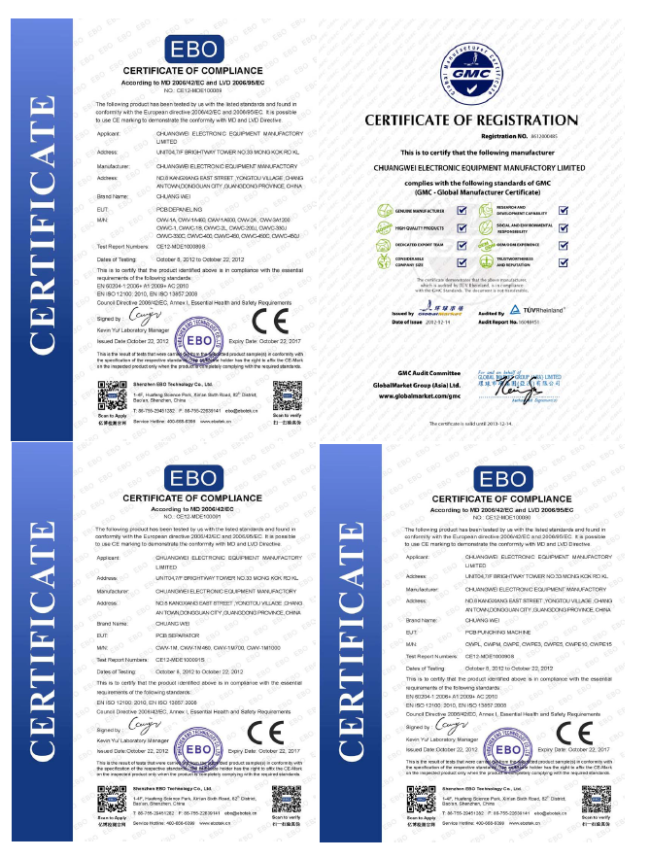

Certifications
