Outdoor Naked Eye 3D Display Dustproof Waterproof and Easy to Install HD LED Commercial Video Wall Customization
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Hivac
Product Description
| LED outdoor display series(HV-HR series)parameter | |||||
| Model | HV-HR4 | HV-HR5 | HV-HR6 | HV-HR8 | HV-HR10 |
| Pixel Pitch | 4 (mm) | 5 (mm) | 6 (mm) | 8 (mm) | 10 (mm) |
| Module size | 320×160 (mm) | 320×160 (mm) | 192×192 (mm) | 320×160 (mm) | 320×160 (mm) |
| Module pixel | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Physical pixel | 62500 (dot/m²) | 4000 (dot/m²) | 27777 (dot/m²) | 15625 (dot/m²) | 10000 (dot/m²) |
| LED | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3535 | SMD 3535 |
| luminance | 4500-7500 (cd/m²) | 4500-7500 (cd/m²) | 4500-7500 (cd/m²) | 4500-7500 (cd/m²) | 4500-7500 (cd/m²) |
| refresh rate | 1920 (Hz) | 1920 (Hz) | 1920 (Hz) | 1920 (Hz) | 1920 (Hz) |
| scan | 1/10S | 1/8S | 1/8S | 1/5S | 1/4S |
| Module thickness | 15.6 (mm) | 15.6 (mm) | 15.6 (mm) | 15.6 (mm) | 15.6 (mm) |
| case size | 960×960 (mm) | 960×960 (mm) | 960×960 (mm) | 960×960 (mm) | 960×960 (mm) |
| Box pixel | 240×240 | 192×192 | 160×160 | 120×120 | 96×96 |
| Casing thickness | 90-110 (mm) | ||||
| operating life | ≥100,000 hours | ||||
| contrast ratio | ≥5000:1 | ||||
| color temperature | 2000-9500K adjustable | ||||
| gray level | 14bit | ||||
| maximum power | 1000-1200 (w/m²) | ||||
| average power | 400-600 (w/m²) | ||||
| input voltage | AC100~240V 50/60Hz | ||||
| Module voltage | DC4.7~5V±0.2V | ||||
| Temperature and humidity | Temperature-10~40℃ Humidity/10%-90% | ||||

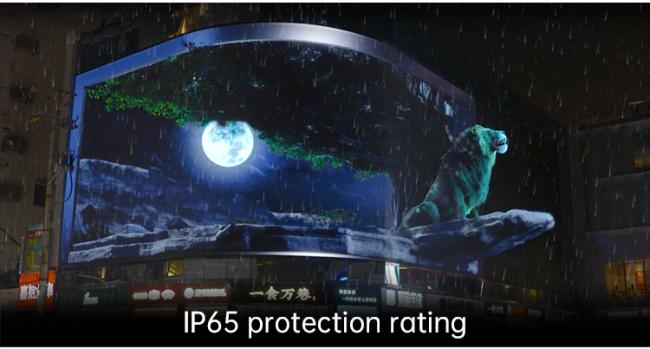

| level of protection | IP65 | ||||
| Box material | Die cast aluminum, sheet metal | ||||
| maintenance mode | Front and rear maintenance | ||||
| way to install | Box mounting | ||||
