500*500 Waterproof Outdoor LED Screen LED Display P1.95 P2.6 P2.9 P3.9 Event Rental Led Screen Indoor LED Screen LED Video Wall
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UHLED
Product Description
Technical Parameter
Indoor & Outdoor LED Video Wall（sliver series） | ||||||||
Pixel Pitch（mm） | 1.95mm | 2.604mm | 2.976mm | 3.91mm | ||||
LED Configuration | SMD1515 | SMD1515 SMD1415 | SMD1515 SMD1415 | SMD2020 SMD1921 | ||||
Cabinet Density ( dots /㎡) | 262177 | 147475 | 112910 | 65410 | ||||
Module Size ( mm) | 250×250mm | 250×250mm | 250×250mm | 250×250mm | ||||
Cabinet Size ( mm) | 500×500/500×1000mm | |||||||
Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | ||||
Cabinet Weight ( Per Panel/ kg) | 7.5kg/15kg | 7.5kg/15kg | 7.5kg/15kg | 7.5kg/15kg | ||||
Color Depth（Bit） | 14-16 | 14-16 | 14-16 | 14-16 | ||||
Gray Scale | 65536 | 65536 | 65536 | 65536 | ||||
Refresh Rate（Hz） | 3840-7680 | 3840-7680 | 3840-7680 | 3840-7680 | ||||
Brightness（nit） | 800-4000 | 800-4000 | 800-4000 | 800-4000 | ||||
Viewing Voltage（V) | 140/120° | 140/120° | 140/120° | 140/120° | ||||
Storage Temperature (℃) | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | ||||
Working Temperature(℃) | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | -20 ~ 40 | ||||
Installation Type | Hanging /Stacking | Hanging /Stacking | Hanging /Stacking | Hanging /Stacking | ||||
Maintenance Type | Front and Rear | Front and Rear | Front and Rear | Front and Rear | ||||
Rental LED Display
Features Of Sliver Series
1.The connection line is all integrated in the box in the installation does not need to be connected, only need
to plug the box in accordance with the interface can reduce the bondage of the line,installation is also faster,
the beauty increased a lot
2.The cabinet is light and thin, can be quickly installed and easily maintained
3.Energy saving and environmental protection, low power consumption

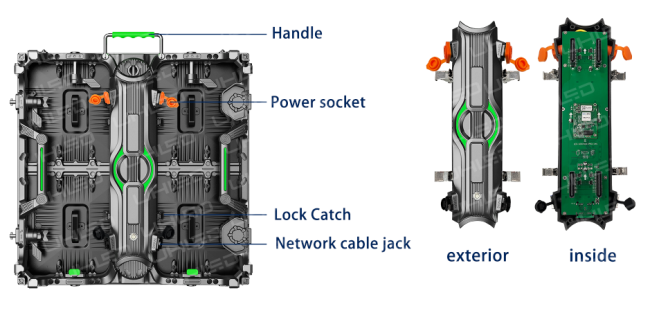

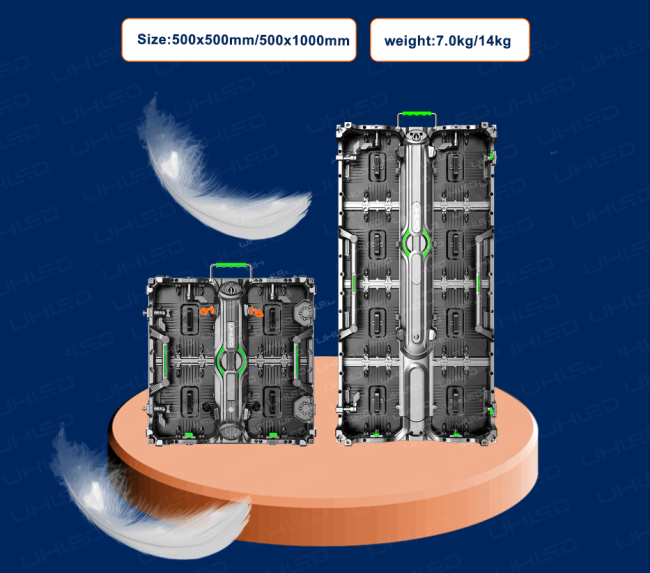

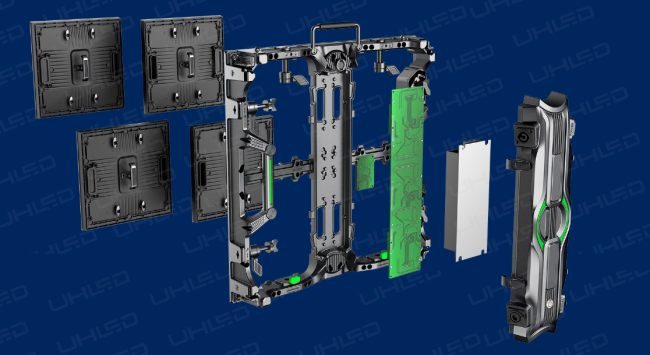

Cabinet Details

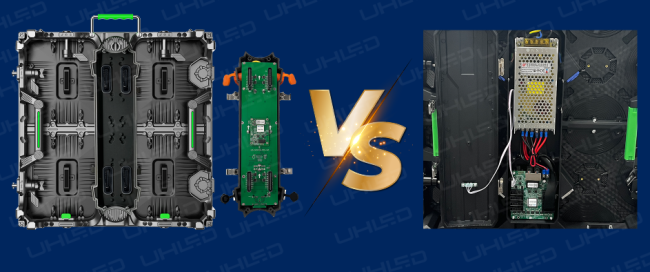

Power Box Removable
Independent Electric Supply Box
Private Mode Cabinet and Industrial Public Mode Cabinet
Independent Power Box and Power Box

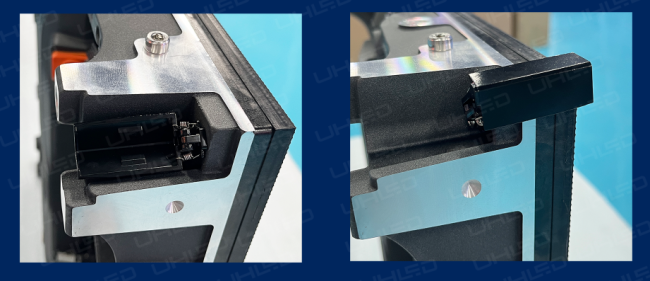

Corner Protector Design
Protecting all the pixels damaged from falling-down
during transportation & installation

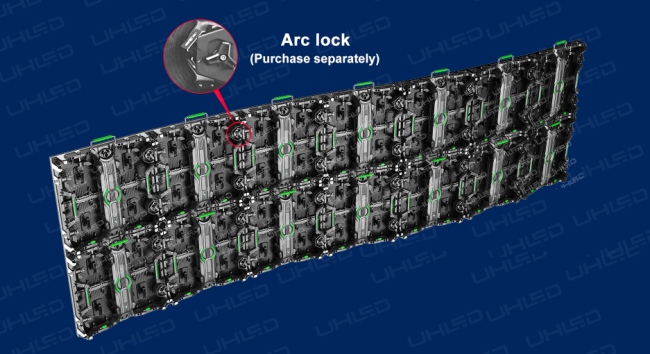

Support Arc Customization
Whether indoors or outdoors, installing LED curved displays that fit the contours of buildings can effectively reduce space waste and reduce installation costs.

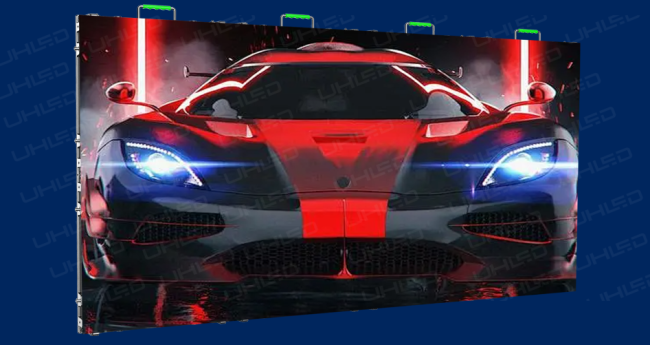

Seamless Stitching
Seamless LED displays that use LEDs directly as pixel units not only bring unparalleled brightness and contrast advantages, but also break the size limitations of existing display technologies when combined with different backplane technologies to create infinitely large ultra-large display screens.
High Refresh
Maintenance Method
Both front and rear can be maintained

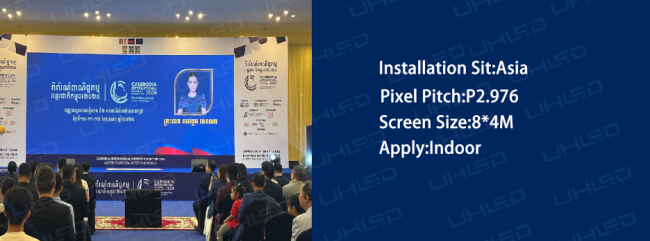

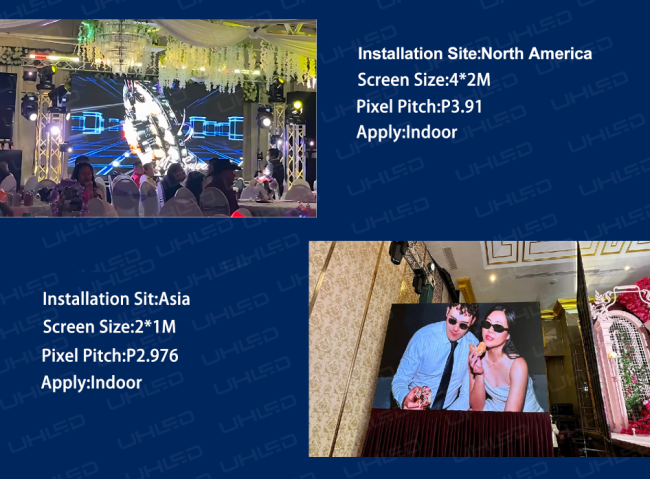

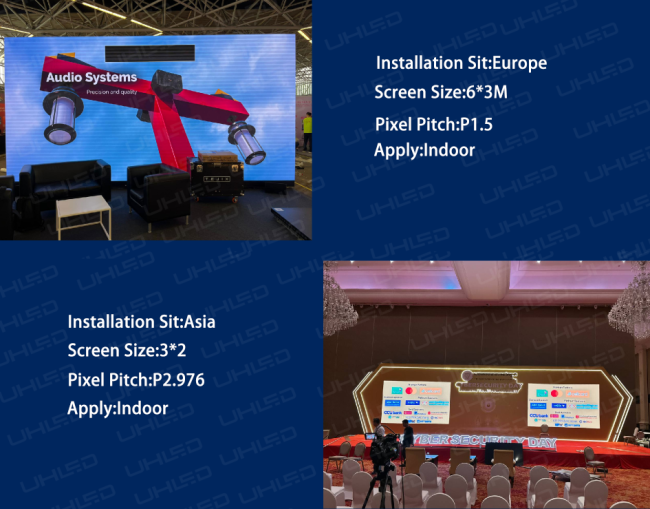

Actual Project Cases
Factory Introduction
