High Brightness Outdoor LED Display for Digital Signage Waterproof Billboard LED Screen
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UHLED
Product Description
Specification | ||||||||
Pixel Pitch： | P5.7 | P6.66 | P8 | P10 | ||||
LED Configuration： | SMD2727 | SMD2727 | SMD2727 | SMD2727 | ||||
Pixel Density | 30625dot/m2 | 22500dot/m2 | 15625dot/m | 10000dot/m | ||||
Module size： | 480*320mm | 480*320mm | 480*320mm | 480*320mm | ||||
Module Resolution： | 84*56 dot | 72*48 dot | 60*40 dot | 48*32dot | ||||
Cabinet Size： | 960*960*77mm | 960*960*77mm | 960*960*77mm | 960*960*77mm | ||||
Cabinet Resolution： | 168*168dot | 144*144dot | 120*120dot | 96*96dot | ||||
Cabinet Weight： | 24.5kg | 24.5kg | 24.5kg | 24.5kg | ||||
IP Rating ( front/back)： | IP66 | IP66 | IP66 | IP66 | ||||
Brightness Intensity： | >6500 CD/m2 | >6500 CD/m2 | >6500 CD/m2 | >6500 CD/m2 | ||||
Viewing Angle (H/V)： | 140°/140 | 140°/140 | 140°/140 | 140°/140 | ||||
View Distance： | ＞5m | ＞5m | ＞5m | ＞5m | ||||
Gray Scale: | 14bit | 14bit | 14bit | 14bit | ||||
Display Scale: | 16.7M | 16.7M | 16.7M | 16.7M | ||||
Brightness Adjustment: | 0-100 levels adjustable | 0-100 levels adjustable | 0-100 levels adjustable | 0-100 levels adjustable | ||||
Max.Power Consumption: | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | ||||
Ave.Power Consumption: | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | ||||
Drive Mode: | 1/7S | 1/6S | 1/4S | 1/2S | ||||
Refresh Frequency: | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ||||
Gamma Correction: | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | -5.0~+5.0 | ||||
Environmental: | OUTDOOR | OUTDOOR | OUTDOOR | OUTDOOR | ||||
Control Mode: | Synchronous display with control PC by DVI | Synchronous display with control PC by DVI | Synchronous display with control PC by DVI | Synchronous display with control PC by DVI | ||||
Support Input: | Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI | Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI | Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI | Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI | ||||
Operation Power: | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | AC100~240 50/60HZ | ||||
Operating Temperature: | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | ||||
Operating Humidity: | 10~95% RH | 10~95% RH | 10~95% RH | 10~95% RH | ||||
Operating Life: | 100,000hours | 100,000hours | 100,000hours | 100,000hours | ||||
Full Aluminum Energy Outdoor LED Display
Module
Module Size：480x320mm Pixel Pitch: P4.4/P5.7/P6.66/P8/P10
Waterproof rating: IP66 Brightness: ≥6500CD
Product Details
Linear design,Concise style Grain design,perfect hierarchy
With partial power design,lower-power consumption,Max.is 650w/m²

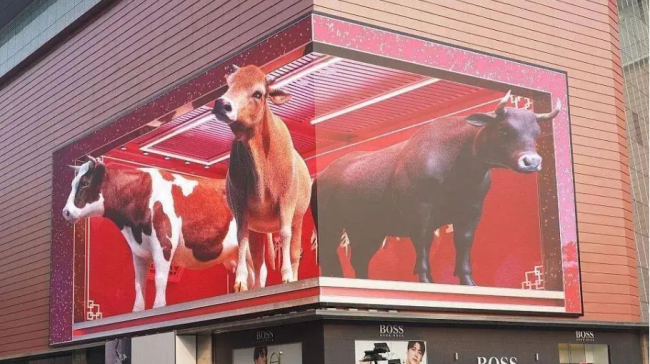

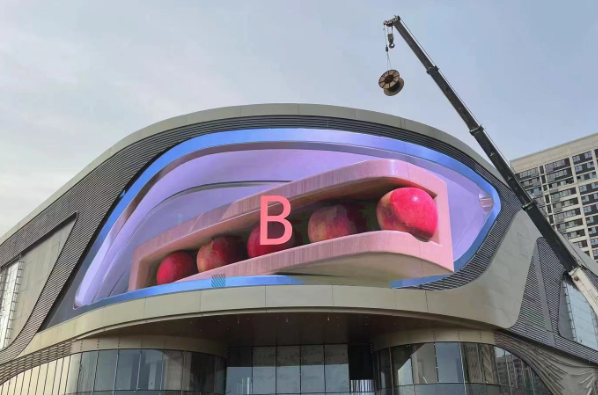

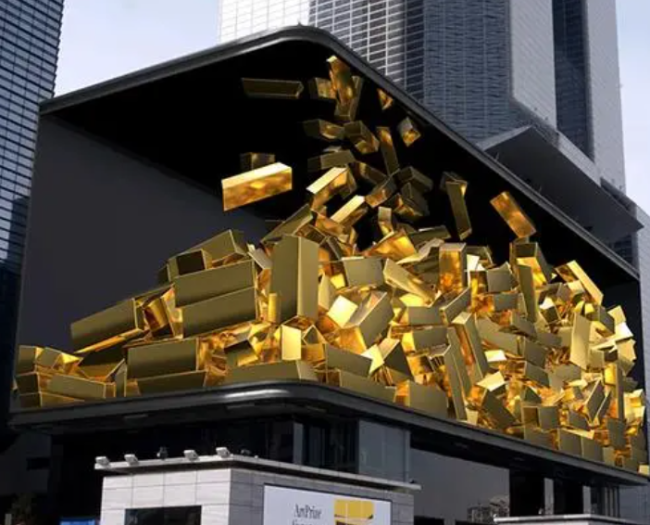

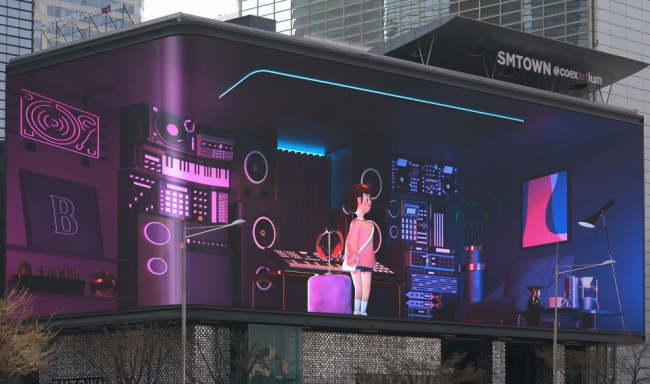

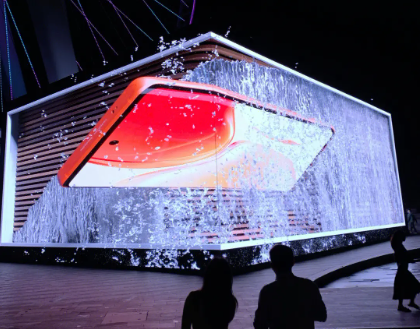

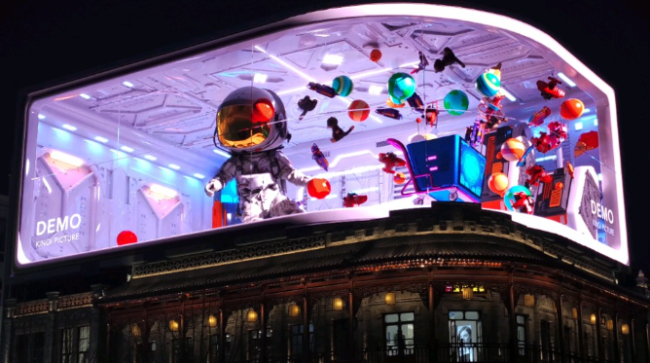

Naked Eye 3D

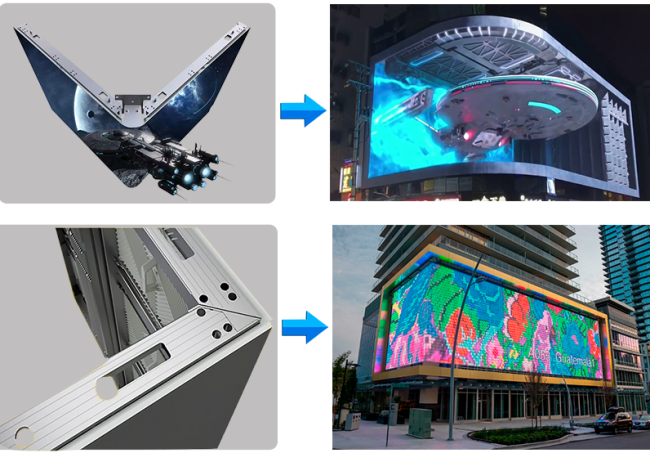

Curved module design, make right angle splicing Support arc &right angle splicing
Product Characteristics

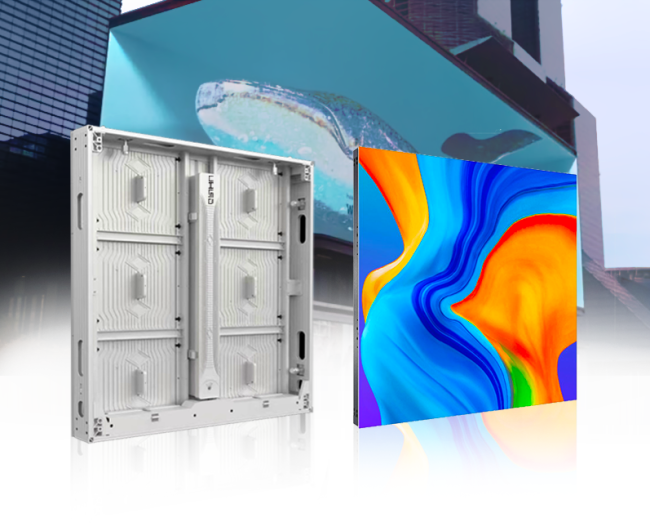

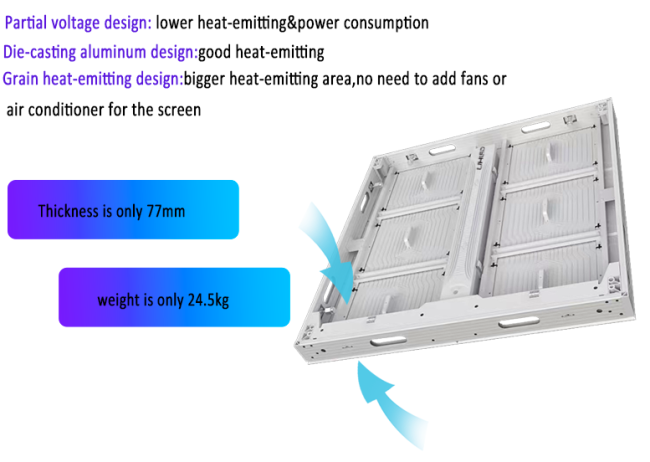

Aluminum Profile Cabinet

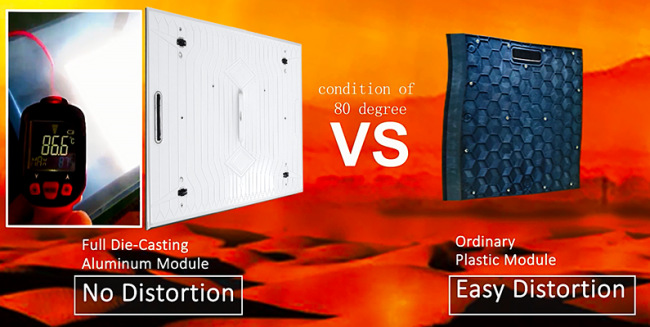

Aluminum cabinet, light weight, safe and reliable, no deformation.
The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.

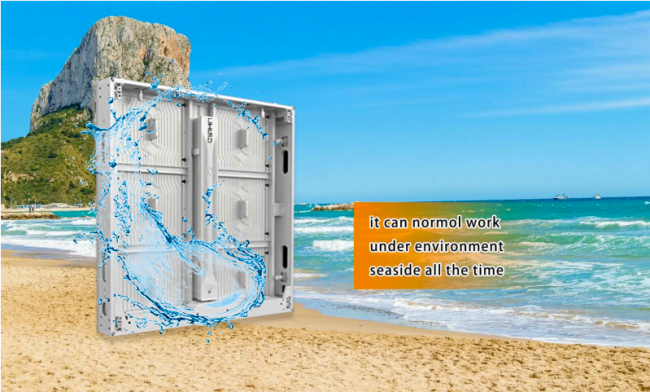

IP66 waterproof
IP66 waterproof No need wrapping strucre suround the screen,lower-cost
Low temperature resistance can work normally at -40℃

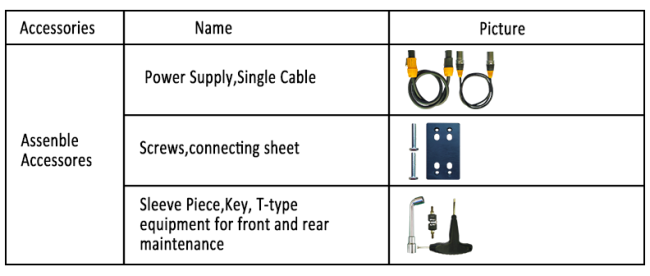

Accessories

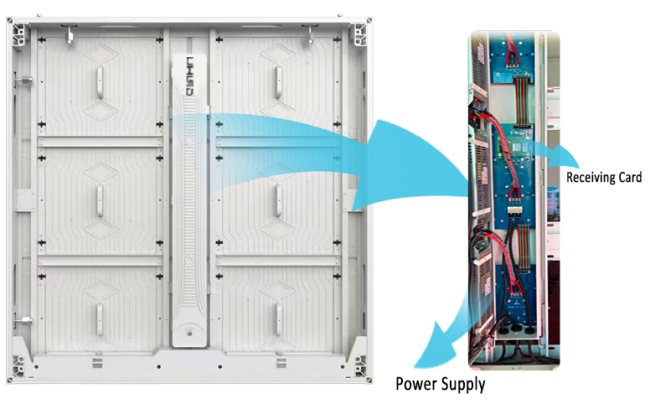

Maintenance Mode

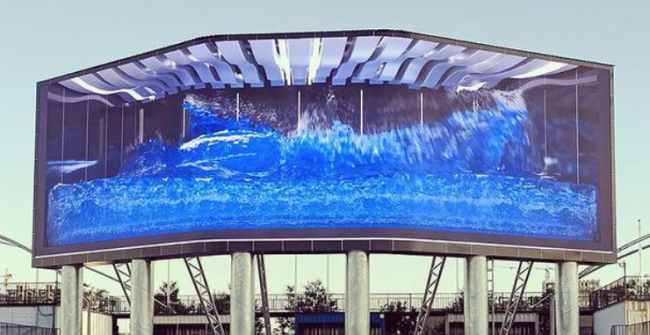

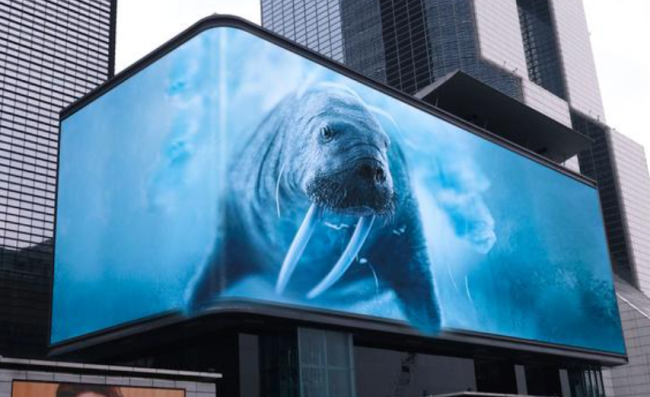

Actual Project
Factory Introduction
