Product Description
CNLINKO M20 12 pin connector male female round power cable plug socket waterproof lightning cable connector
Product Description

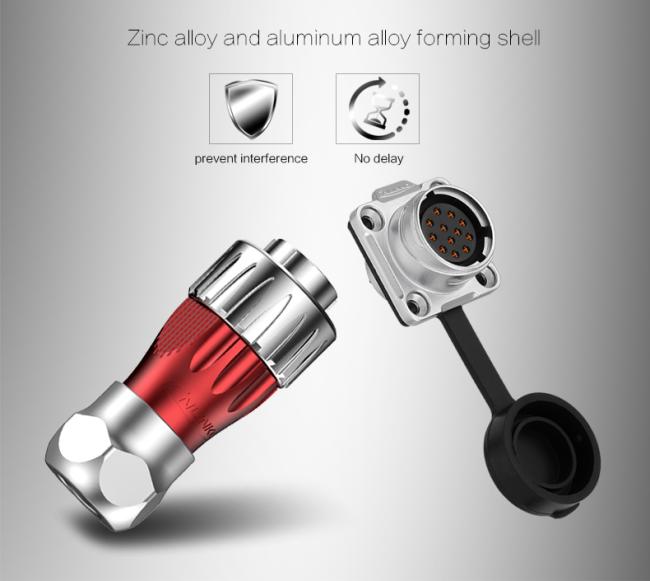

The use of alloy external protective materials effectively reduces electromagnetic and signal RF interference generated by external high currents.

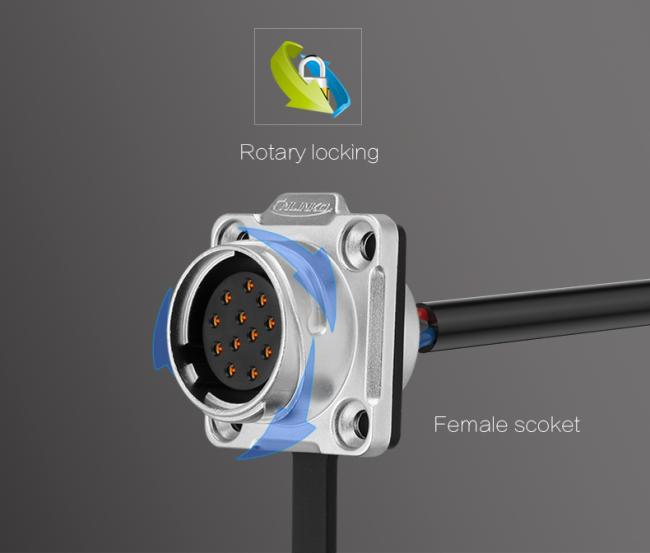

High-standard three-point screw lock.
Optional shell color to meet different environmental requirements.
Optional metal and silicone dust cover for different application requirements.
2-7PIN power supply, 9-12PIN signal is optional.
Rated current: 5A/12A/20A rms.
The product is connected to IP65/IP67 protection.
Specifications
| Specifications | |
| Connecting mode | Latching Lock connect |
| Protection level | IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty | Φ1.0×12 |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 400V |
| Withstand voltage(AC.V)1min | 1500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |

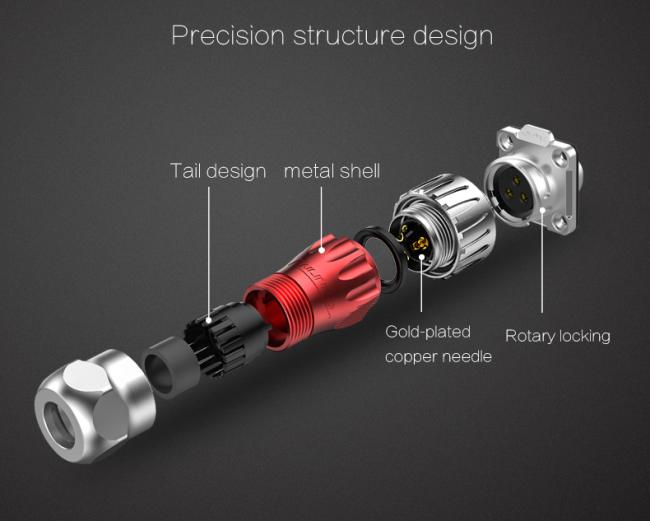

| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| 1/4 bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
