Factory M24 Round USB Connector Plastic Waterproof Panel Mount USB Connector
Price:
$9.60-11.20
MOQ:
10
Delivery Time:
Negotiable
Brand:
CNLINKO
Product Description
CNLINKO BD24 Plastic USB Panel Mount Connector IP67 Waterproof USB 3.0 Data Connector
Features:
1. Multi-purpose design (power, signal, data) for a wide range of application needs;
2. Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;

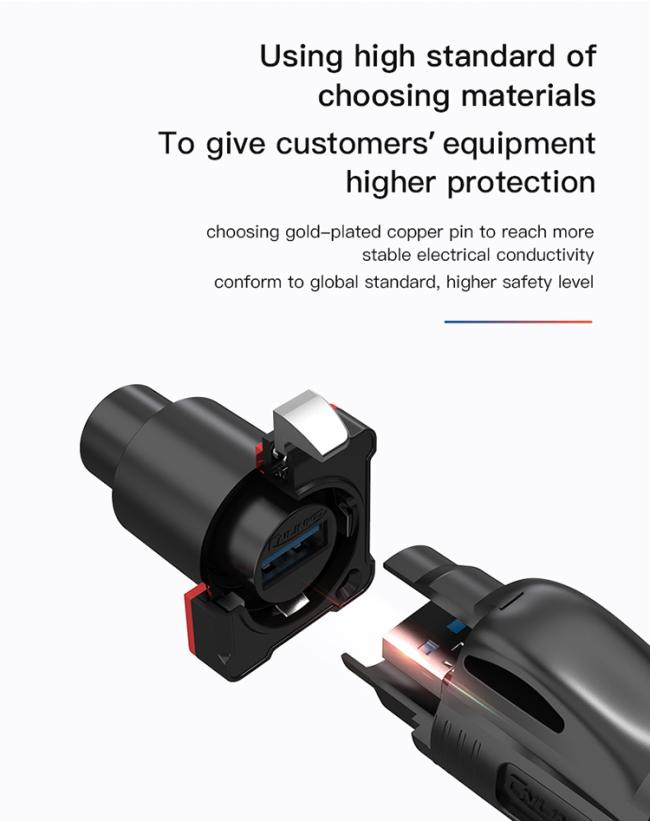

3. Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
4. Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
5. IP67 protection level in connection state;
6. One-piece streamlined design.
Product Description
Specifications
| Specifications | |

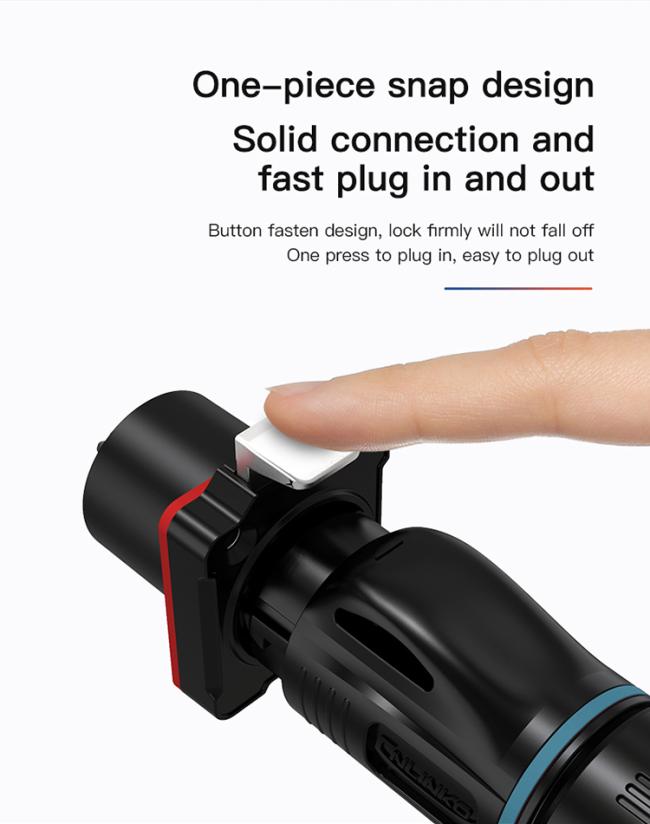

| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 0.15mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range | Φ5mm ~Φ6.5mm |
| Contact diameter×Qty | 9PIN(3.0)&4PIN(2.0) |
| Current rating(A) | 1.5A |
| Temperature rise | / |
| Withstanding voltage(AC.V)1min | 1000V |
| Contact resistance | <30mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |
| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Insulated parts | High performance engineering plastics |

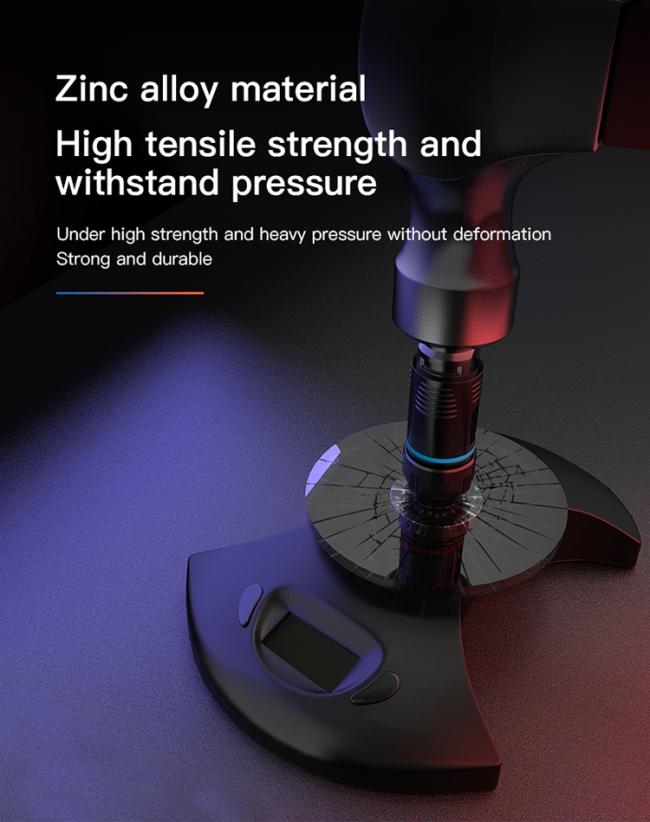

| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |

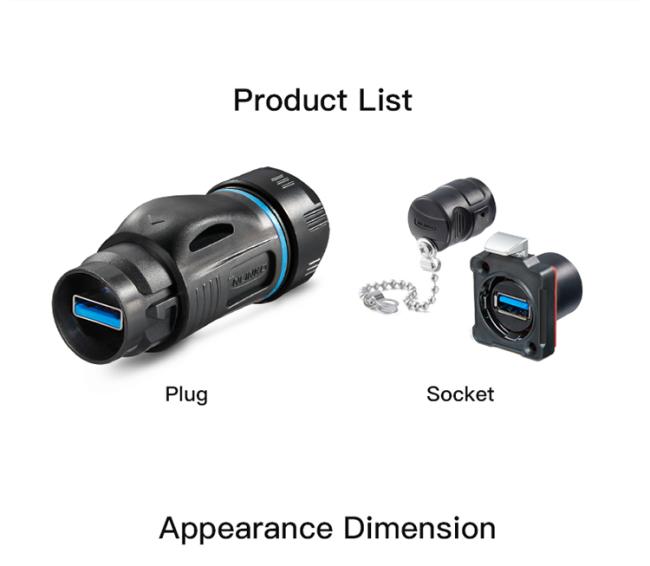

| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
