CNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable Type

Price Negotiable

Price: $3.52-4.10

MOQ: 2

Delivery Time: Negotiable

Brand: CNLINKO

Product Description

CNLINKO 3 pin male connector IP68 Waterproof M20 Female DC Power plug

Product Description

multi-pins(2-12 PINGS) for condition industrial demands

PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

gold-plated contact, high performance of corrosion resistance and electrical Conductivity effective deal with temperature rise.

1/4 mount connector, easy operation and installation

dustproof cover design under off-working condition

rated current is 20A rms

protection level: IP65/67

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range	Φ8mm ~Φ12mm
Contact diameter×Qty	Φ2.7×3
Current rating(A)	20A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	2500V
Contact resistance	<1mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel

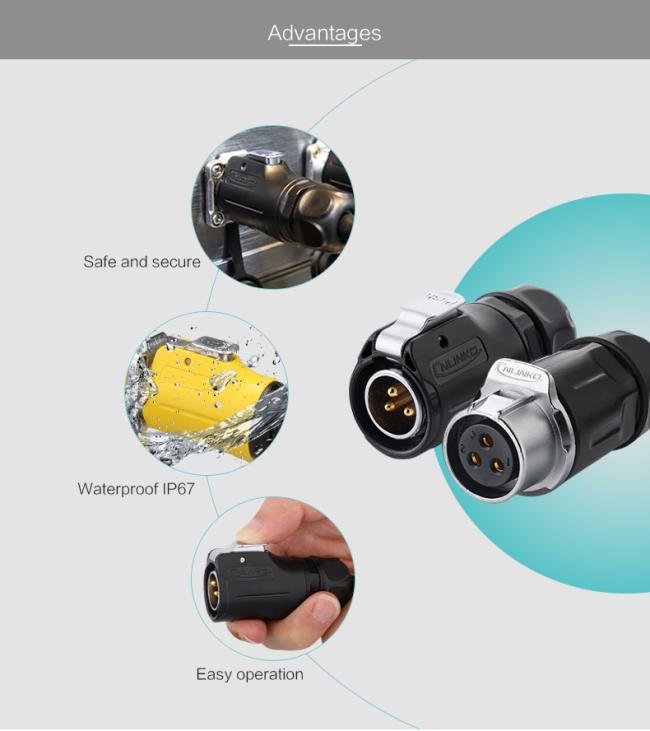

Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
