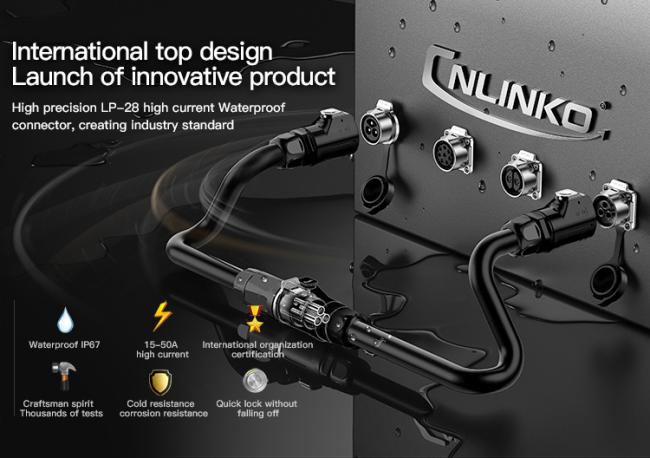

CNLINKO 3 Pin Male Female Industry Application Power Waterproof Connectors 3 Phase Plug System Connector
CNLINKO 3 pin male female Industry application power waterproof connectors 3 phase plug system connector
Features:
With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5 pin for power connector,7/9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated

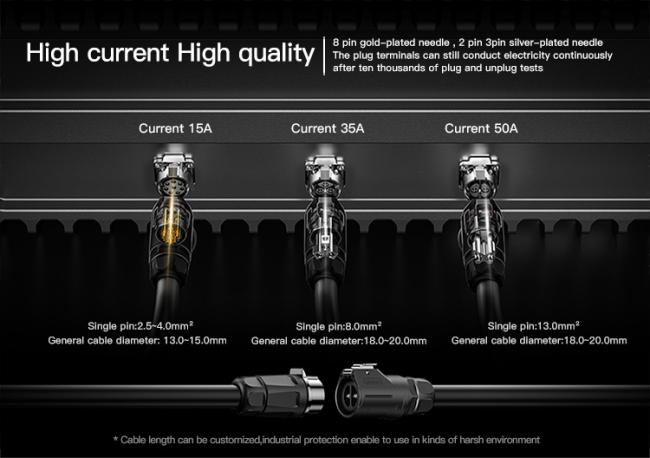

Current rating:5A/12A/20A 30A 50A rms
Please indicate if you need the protection level more high
| Specifications | |

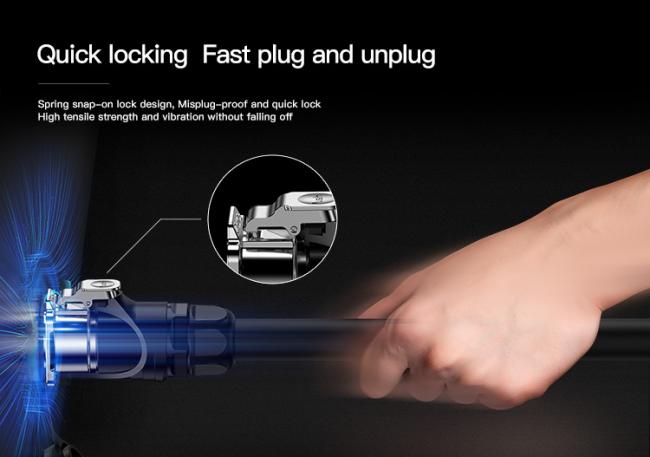

| Connecting mode | Latching Lock connect |
| Protection level | IP65/IP67 |
| Cable specification | 8mm2 /8AWG |

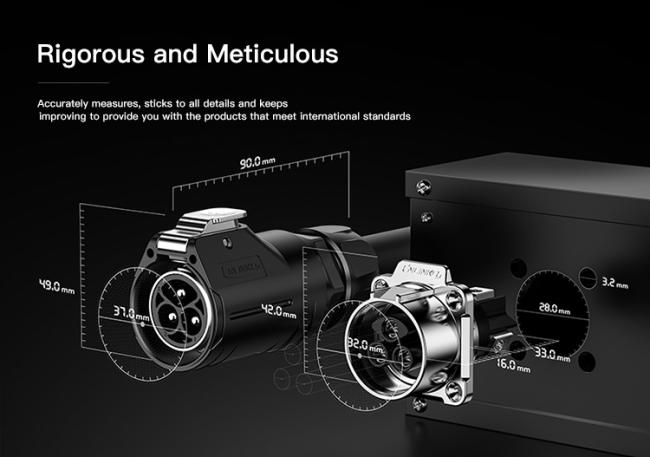

| Diameter range | Φ18mm ~Φ20mm |
| Contact diameter×Qty | Φ4.0×3 |
| Current rating(A) | 35A |
| Temperature rise |
20A contact temperature below 30℃ 25A contact temperature below 40℃ 30A contact temperature below 50℃ |
| Operating voltage(AC.V.rms) | 500V |
| Withstanding voltage(AC.V)1min | 2500V |
| Contact resistance | <1mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~80°C |

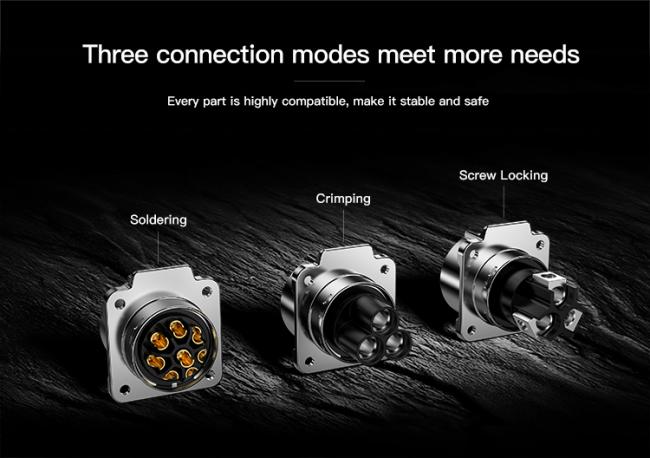

| Method of connecting cable | Soldering |
| Prevent the combustion level | UL94-V0 |

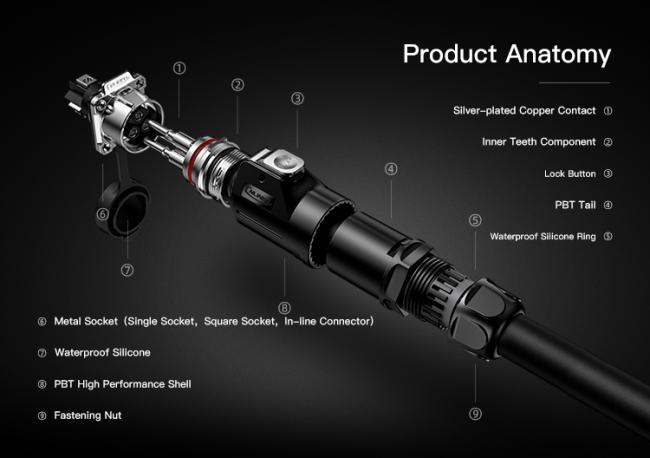

| Material | |
| shell & Insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated 4U) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Ship equipment | |

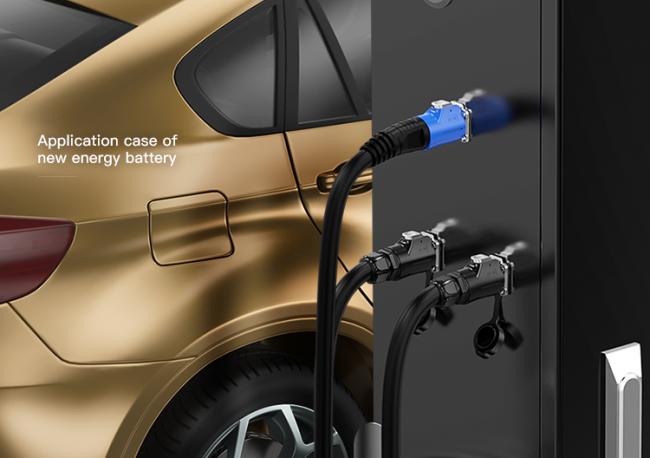

| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
