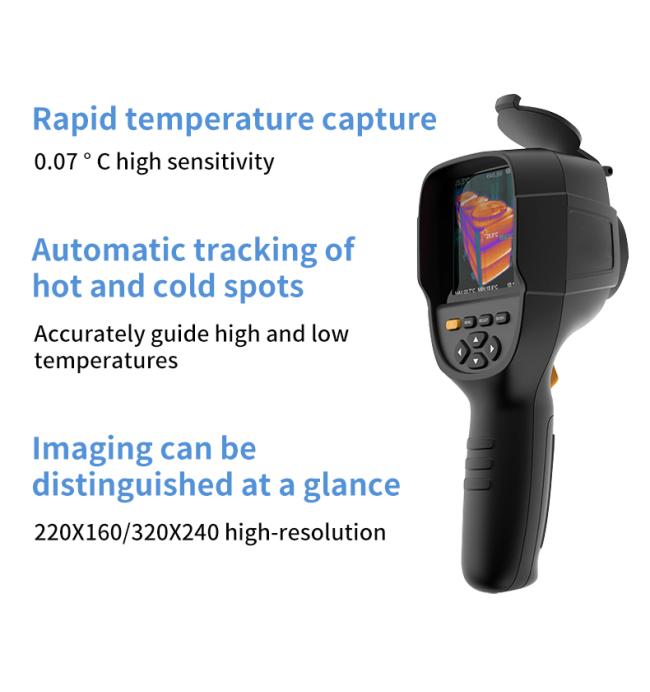

High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
LSJ
Product Description
Product Paramenters
Model | LSJ-E310 |
Displayscreen | 3.2"full angle TFT displayscreen |
Infraredimage resolution | 256×192 |
LCD resolution | 640×480 |
Field angle/focus length | 56°×42°/3.2mm |
IFOV | 3.75mrad |
Pixelspacing | 12μm |
Frame rate | 25Hz |
Focusing mode | Manualfocus |
NETD | ≤50mK@25℃F#1.0 |
Wavelengthcoverage | 8~14μm |
Emissivity | Adjustablefrom 0.01 to 1.0 |
Colorpalette | Rainbow,iron oxide red,cold color,white hot,black hot |
WIFI | Support |
Measuring range | -20℃~550℃(-4°F~1022°F) |
Accuracy | ±3% |
Setting | Unit、Language、Date、Time、Information |
Language | Chinese、English、German、Italian |
Storage capacity | Built-in 4G eMMC |
File format | JPG |
Powerinterface | Micro USB 2.0 |
Products Description
Wide FOV
The E320 also features a wide 56° field of view (FOV), allowing users to easily capture more objects within the frame. This expansive FOV enhances the efficiency of thermal inspections by covering larger areas without the need to adjust the focal length, providing a more convenient and streamlined user experience.

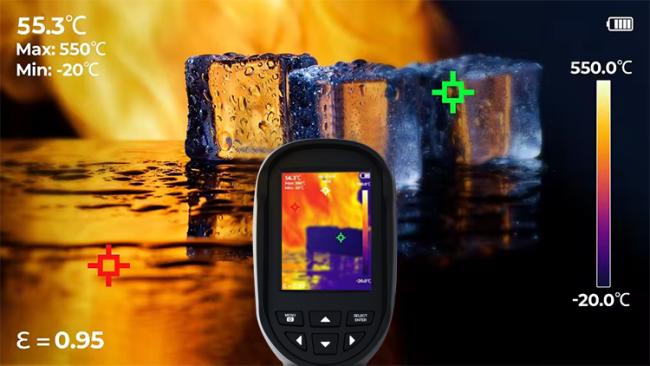

Wide Measurement Range & Accuracy
The E320 features a wide temperature measurement range of -20℃ to +550℃, making it suitable for a broad spectrum of applications. It can measure temperatures with an accuracy of ±2℃, ensuring precise temperature readings.
The high-precision infrared sensor of the E310 boasts a NETD (Noise Equivalent Temperature Difference) of less than 50mK, a measurement accuracy of 0.1 degrees, and an error margin of less than 2%. These specifications guarantee the utmost accuracy in thermal readings, allowing users to trust the reliability of their measurements in critical applications.
Built-in Fill LED Light
The E320 is equipped with a built-in LED light, enabling users to record thermal readings without the need for an additional light source. This feature ensures that the target area is well-illuminated, improving visibility and accuracy in various lighting conditions, and enhancing the overall user experience.
Built to Last
The E320 is designed with durability in mind, featuring an IP66 rating for protection against water and dust. Additionally, it is built to withstand drops from up to 2 meters, allowing you to use the device with confidence and peace of mind in various challenging environments. This robust construction ensures the E310 remains reliable and functional, even under tough conditions.
