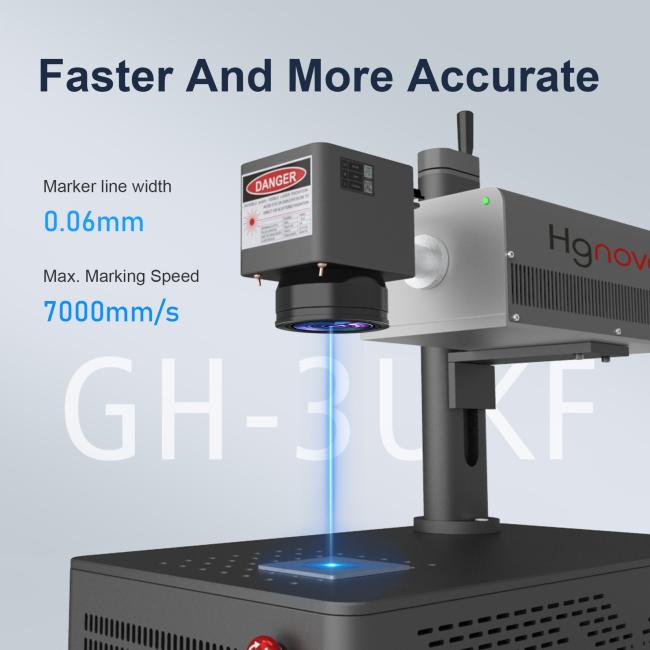

Desktop UV Laser Marking Machine for Engraving Plastics Glass Metal 3W 5W Portable Laser Engraving Machine With Rotary Axis
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Specification
Laser Power | 3W | 5W | |
Laser Wavelength | 355nm | ||
Pulse Repetition Frequency (PRF) | >3w@30kHz | ||
Scanning Speed | 10k~150kHz | ||
F-Theta Lens | F=170mm,≤7000 mm/s | ||
Working Area | 100*100mm/150*150mm(optional)/175*175mm(optional) | ||
Standard Marking Line Width | 0.02mm (Material Dependent) @ f=170mm | ||
Minimum Character Height | 0.1mm @ f=170mm | ||
Cooling Method | Air Cooling | ||
Height Adjustment | Manual Z-Axis Adjustment, Travel: 500mm | ||
Total Power Consumption | 600W | ||
Power Supply | 2.0kW / AC 220V (±10%) / 50 Hz | ||
Supported File Formats | PLT, DXF, BMP... | ||
User Interface Languages | Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese | ||
Operating Temperature Range | 15°C ~ 35°C. Air conditioning is required if used outside this range. | ||
Operating Humidity Range | 30% ≤ RH ≤ 80%. Risk of condensation exists if operated outside this humidity range. | ||
Machine Dimensions | 500mm x 330mm x 580mm | ||
Machine Weight | * Net Weight: 20kg * Gross Weight: 22kg | ||
