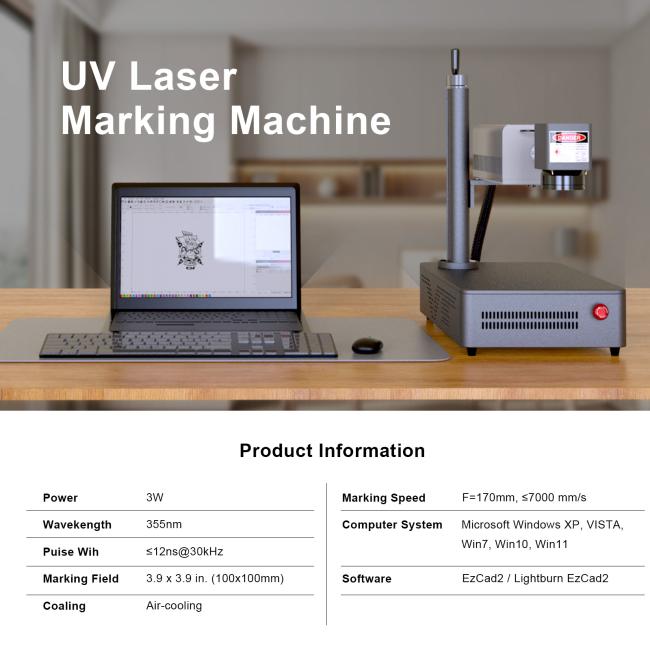

Desktop UV Laser Marking Machine 3W Air Cooling Laser Engraving Machine for Plastics Glass Metal
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Specification
Laser Power | 3W |
Laser Wavelength | 355nm |
Pulse Repetition Frequency (PRF) | >3w@30kHz |
Scanning Speed | 10k~150kHz |
F-Theta Lens | F=170mm,≤7000 mm/s
|
Working Area | 100*100mm/150*150mm(optional)/175*175mm(optional) |
Standard Marking Line Width | 0.02mm (Material Dependent) @ f=170mm |
Minimum Character Height | 0.1mm @ f=170mm |
Cooling Method | Air Cooling |
Height Adjustment | Manual Z-Axis Adjustment, Travel: 500mm |
Total Power Consumption | 600W |
Power Supply | 2.0kW / AC 220V (±10%) / 50 Hz |
Supported File Formats | PLT, DXF, BMP |
User Interface Languages | Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Arabic, Russian, Portuguese |
Operating Temperature Range | 15°C ~ 35°C. Air conditioning is required if used outside this range. |
Operating Humidity Range | 30% ≤ RH ≤ 80%. Risk of condensation exists if operated outside this humidity range. |
Machine Dimensions | 500mm x 330mm x 580mm |
Machine Weight | * Net Weight: 20kg * Gross Weight: 22kg |
