90 Degree Rotating Pneumatic Actuator Corrosion Resistant Rack Pinion Pneumatic Actuator
Price:
10-2000USD
MOQ:
1pcs
Delivery Time:
3-7 days
Brand:
OEM
Product Description

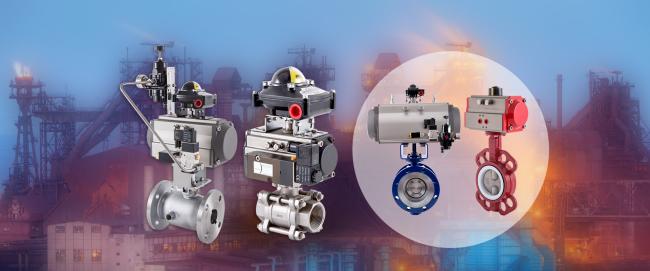

90 Degree Rotating Pneumatic Actuator - Corrosion Resistant Rack Pinion Design
Product Overview
The 90 Degree Rotation Pneumatic Valve Rack and Pinion Actuator features a durable extruded aluminum alloy construction with hard anodized surface treatment for superior corrosion resistance. This precision actuator offers reliable performance in various industrial applications.
Key Specifications
| Material | Extruded Aluminum alloy |
|---|---|
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature | Normal: -20ºC(-4°F) to 80ºC (+176°F) High: -15ºC(+5°F) to 150ºC (+302°F) Low: -40ºC(-104°F) to 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Endcap Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for easy mounting of accessories like limit switch boxes and positioners
- Pinion: High-precision nickel alloy steel construction compliant with ISO5211, DIN3337, and NAMUR standards
- Actuator Body: Extruded aluminum alloy ASTM6005 with hard anodized, powder polyester painted, or PTFE/nickel plated options
- End Caps: Die-casting aluminum with powder polyester paint in various colors
- Pistons: Twin rack pistons with symmetric mounting for long cycle life and fast operation
- Travel Adjustment: External stop adjustment bolts allow precise 5° adjustment in both directions
- Springs: Preloaded coating springs made from high-quality corrosion-resistant materials
- Bearings & Guides: Low-friction, long-life compound materials for easy maintenance
- O-rings: NBR rubber for standard temperatures, with viton or silicone options for extreme conditions
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2" |
Product Applications
The AT Series Pneumatic Actuator is designed for dual pistons driven by racks and pinions, available in both Dual Acting and Spring Return models. Suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Ideal for auto-control applications in:
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas processing
- Water treatment systems
- Chemical processing plants
- Food and pharmaceutical production
- Electric power plants
- Petrochemical facilities
- Metallurgy operations
- Oil and gas processing
- Water treatment systems
- Chemical processing plants
- Food and pharmaceutical production
