OEM Rack And Pinion Pneumatic Actuator Low Temperature Silicone Sealing 90 Degree Actuator
Price:
10-2000USD
MOQ:
1pcs
Delivery Time:
3-7 days
Brand:
OEM
Product Description

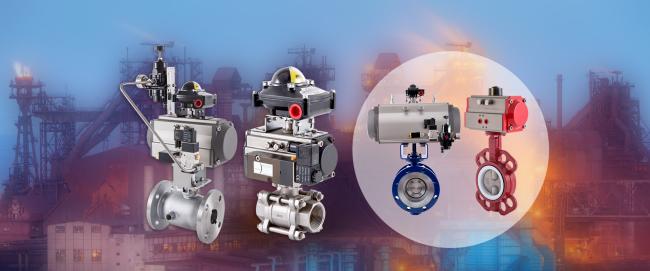

Low Temperature Silicone Sealing Rack And Pinion Pneumatic Actuator
This 90° rotation pneumatic valve actuator features low-temperature silicone sealing and is designed for precise control in demanding industrial applications.
Key Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature | Normal: -20ºC(-4°F) ~ 80ºC (+176°F) High: -15ºC(+5°F) ~ 150ºC (+302°F) Low: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Endcap Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for convenient mounting of accessories
- Pinion: High-precision nickel alloy steel, customizable dimensions available
- Actuator Body: Extruded aluminum alloy with various treatment options
- End Caps: Die-casting aluminum with powder polyester paint in multiple colors
- Pistons: Twin rack pistons with symmetric mounting for long cycle life
- Travel Adjustment: External stop adjustment bolts for precise 5° adjustment
- Springs: Preloaded coating springs for corrosion resistance and customizable torque
- Bearings & Guides: Low-friction, long-life compound material for easy maintenance
- O-rings: NBR rubber for standard temperatures, viton or silicone for extreme conditions
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2" |
Product Applications
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions, available in Dual Acting and Spring Return models. Designed for use in various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions.
Ideal for auto-control applications in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
