Aluminum Rack And Pinion Pneumatic Actuator Double Action Pneumatic Actuator For Ball / Butterfly Valve
Price:
10-2000USD
MOQ:
1pcs
Delivery Time:
3-7 days
Brand:
OEM
Product Description
AT Series Rack And Pinion Aluminum Pneumatic Actuator For Ball / Butterfly Valve ISO5211 Ce Ex
Pneumatic Actuator
The AT series Pneumatic Actuator features dual pistons driven by racks and pinions. Available in two models: Dual Acting and Spring Return, suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.

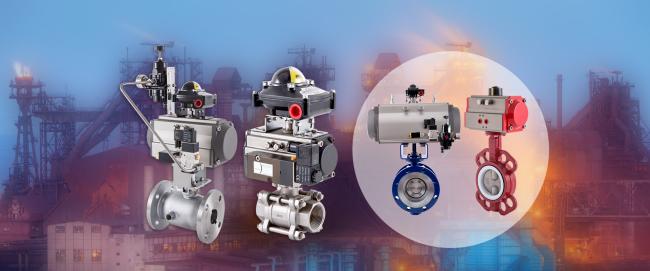

Applications
Ideal for auto-control in electric power, petrochemical, metallurgy, petroleum, gas, construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree ±5° |
| Structure | Rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | Hard anodizing |
| Working Temperature | Normal: -20ºC(-4°F) ~ 80ºC (+176°F) High: -15ºC(+5°F) ~ 150ºC (+302°F) Low: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | Ball valve, butterfly valve, and rotary machine |
| Endcap Color | Grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for easy mounting of accessories like limit switch boxes and positioners.
- Pinion: High-precision, integrative nickel alloy steel pinion, compliant with ISO5211, DIN3337, and NAMUR standards. Customizable dimensions with stainless steel options.
- Actuator Body: Extruded aluminum alloy ASTM6005, available with hard anodized, powder polyester painted (various colors), PTFE, or nickel-plated finishes.
- End Caps: Die-casting aluminum with powder polyester paint, PTFE, or nickel-plated options.
- Pistons: Twin rack pistons made from die-casting aluminum (hard anodized) or cast steel (galvanized). Symmetric mounting, long cycle life, and fast operation.
- Travel Adjustment: Two independent external travel stop adjustment bolts for precise 5° adjustments in both open and close directions.
- High Performance Springs: Preloaded coating springs made from high-quality corrosion-resistant materials, easily demountable for torque adjustments.
- Bearings & Guides: Low-friction, long-life compound material to prevent direct metal contact, ensuring easy maintenance and replacement.
- O-rings: NBR rubber for standard temperatures; viton or silicone for high/low temperature ranges.
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2" |
