OEM Single Action Pneumatic Actuator Ball Valve Butterfly Valve Air Torque Pneumatic Actuators
Price:
10-2000USD
MOQ:
1pcs
Delivery Time:
3-7 days
Brand:
OEM
Product Description

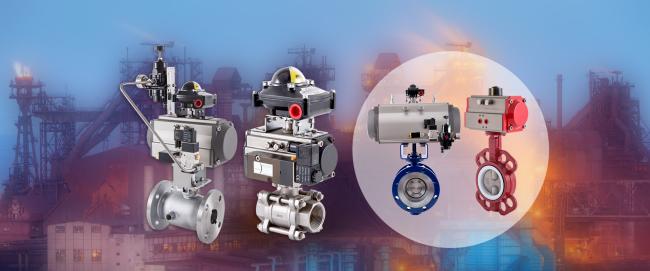

Single Action Ball Valve Butterfly Valve Air Torque Pneumatic Actuator
Pneumatic Actuator Specifications
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F) High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F) Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F) |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
AT Series Pneumatic Actuators Features
- Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR specifications
- Extruded high-intensity aluminum body with hard anodized coating for durability
- Low friction coefficient and swift performance
- Compact construction with multiple specifications for economic selection
- High-quality bearings for low friction, high cycle life, and quiet operation
- External stroke adjustment bolts (±5° adjustment in both directions)
- Available in double acting and single acting (Spring-Return) models
- Multi-function indicator with NAMUR for easy accessory mounting
- Pre-compressed load spring for safe mounting and tear down
- Die-casting aluminum pistons and end caps for strength and light weight
- Various O-ring materials available for different temperature requirements
- Easy solenoid valve mounting without connecting plank
Main Features
- Widely used in ball valves and butterfly valves
- Cost-effective with compact design and long working life
- Available in single acting (spring return) or double acting models
- Standard colors: orange, blue, black, dark gray (OEM colors available)
- Working pressure: 0.3~0.8MPa
- Bottom connection: ISO 5211
- Solenoid valve standard: Namur
- Compatible accessories: limit switch box, solenoid valve, positioner
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8 " | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4 " |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4 " |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4 " |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4 " |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4 " |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4 " | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4 " | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4 " | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2 " | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2 " |
Product Applications
AT series Pneumatic Actuators are made of dual pistons driven by racks and pinions. Available in Dual Acting and Spring Return models, suitable for various environments including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions, both indoor and outdoor.
Applications include auto-control in electric power, petrochemical, metallurgy, petroleum, gas, town construction, drainage, chemical industry, oil refining, mining, power plants, architecture, medicine, food, gas, and scientific research.
