OEM Scotch Yoke Pneumatic Actuator Dual Action Single Action Custom Pneumatic Cylinder

Price Negotiable

Price: 10-2000USD

MOQ: 1pcs

Delivery Time: 3-7 days

Brand: OEM

Product Description

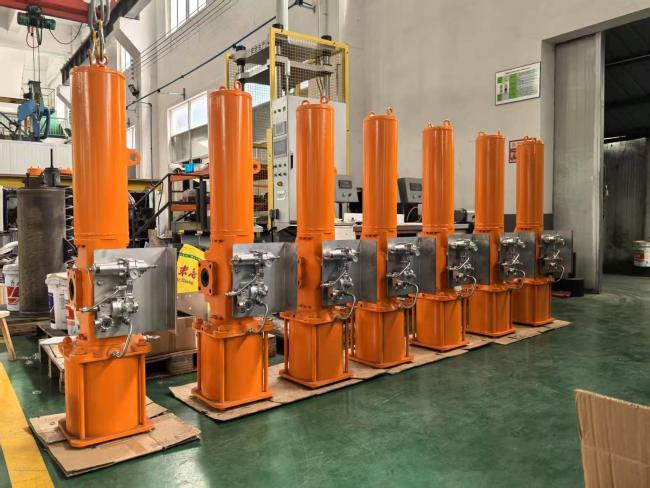

OEM Scotch Yoke Pneumatic Actuator

HPY Scotch Yoke Pneumatic Cylinder available in both Dual Action and Single Action configurations with custom options.

Product Specifications

Our high-performance pneumatic actuator features a scotch yoke mechanism designed for big output torque applications.

Attribute	Value
Type	Double Action / Single Action
Material	Aluminum Alloy
Structure	Scotch yoke
Application	Automatic control valve
Power	Pneumatic
Temperature Range	Normal Temperature, Low Temperature, High Temperature
Media	Hydraulic oil or water
Color Options	Blue, gray, or customized to customer requirements

Key Features

Rotary Angle: 0~90 degree
Working Pressure: 2~8bar
Surface Treatment: Hard anodizing for enhanced durability
Multiple temperature ranges available:
- Normal Temperature: -20°C to +80°C
- High Temperature: -15°C to +150°C
- Low Temperature: -40°C to +80°C
Standard connections: NAMUR, ISO5211 and DIN3337
Available in multiple colors: grey, black, sky blue, dark blue, red, orange
External stroke adjustment bolts for precise ±5° adjustment
Available in both double acting and spring return configurations

Technical Advantages

Our AT series pneumatic actuators incorporate the latest technology and innovative design features:

Full conformance to ISO5211, DIN3337, VDINDE-3854, and NAMUR standards
Honed internal surface with hard anodized coating for long service life
High-quality bearings for low friction and quiet operation
Pre-compressed load spring for safe mounting and disassembly
Multiple O-ring materials available for different temperature requirements
Easy mounting of solenoid valves without additional connecting planks

Applications

Our pneumatic actuators are suitable for various demanding environments including flammable, corrosive, dusty, and high-vibration conditions. Ideal for use in:

Electric power plants
Petrochemical facilities
Oil and gas operations
Water treatment plants
Chemical processing
Mining operations
Food and pharmaceutical production

Dimensions

Model	50x90	80x90	4-M8x15	4-M8x15	80	30	30	290
B06/C06	50x90	80x90	4-M8x15	4-M8x15	80	30	30	290
B08/C08	50x90	80x90	4-M12x18	4-M12x18	80	30	30	372
B1/C1	80x125	80x125	4-M12x18	4-M12x18	80/130	30	30	426
B2/C2	80x125	100x160	4-M12x18	4-M12x18	80/130	30	30	480
B3/C3	80x180	120x210	4-M12x18	4-M12x18	80/130	30	30	583
B4/C4	80x180	120x230	4-M12x18	4-M12x18	130	30	30	680
B5/C5	80x220	140x300	4-M12x18	4-M12x18	130	30	30	810
B6/C6	80x220	180x400	4-M12x18	4-M12x18	130	30	30	1060
