Atmospheric Positive Ion Monitor For Field Forestry Research
Atmospheric Negative Oxygen Ion Monitor-ONETEST-500XP It Is Used For Field Forestry Research And Other Purposes
1. Product profile
ONETEST-500XP Atmospheric negative oxygen ion monitor in accordance with the Japanese JIS air ion density determination pointer draft of the most accurate coaxial binary cylinder manufacturing design, compared with the general market plate made ion detector, accuracy, and can use special computer record analysis software record analysis and print measured data, suitable for forestry, meteorology, ecological, third party testing institutions, living environment assessment and the same goods.
2. Product features
1. Have the positive and negative ion measurement function; users can switch by themselves

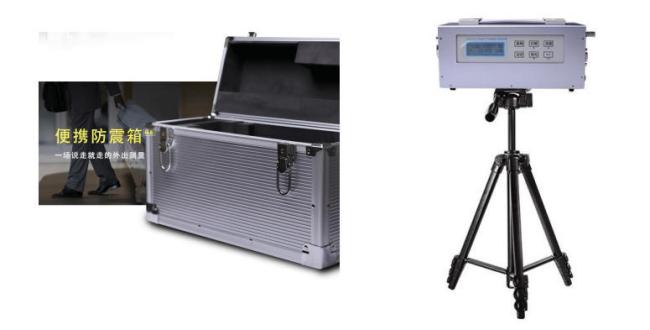

2. The bottom of the reserved tripod installation hole outside the measurement is very convenient
3.High measurement accuracy, sensitive response, strong anti-interference ability;
4.With RS232 data output optional data management platform
5.Strong environmental adaptability can fully adapt to the high humidity environment work
6.It is easy to operate and can be measured quickly without training
3,Technical indicators
|
Product color: |
wathet |
||
|
Size: |
Length 28.5 (including protrusion) width 10 height 11.5 (cm) |
||
|
Weight: |
About 2.5 Kg |
||
|
Detection ion: |
Positive and negative ions, temperature, humidity in air |
||
|
measuring principle: |

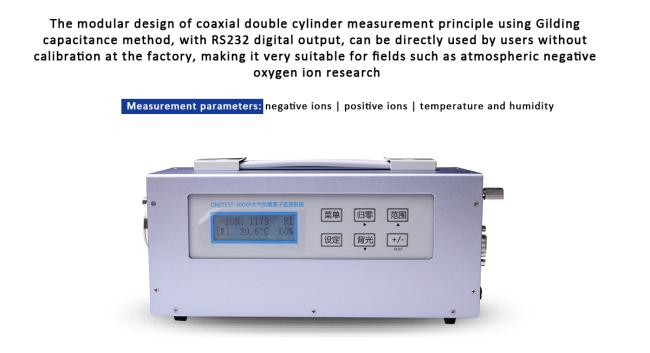

Coaxial binary cylinder type of the Gildine capacitor method |
||
|
measurement range:
resolution ratio: |
anion |
temperature |
humidity |
|
0-5 million PCs / cm3 |
-20～60℃ |
0-99%RH |
|
|
1 with one / cm3 |
1℃ |
5%RH |
|
|
mobility: |
0.7c m2/V.S e c |
||
|
numeric output: |
Serial Communication Output (RS-232) |
||
|
sampling time: |
10 Times / second |
||
|
Measurement display time: |
Three times / second |
||
|
Determination accuracy: |
±5% |
||
|
zero adjustment: |
The software adjusts the system and can remotely adjust the zero |
||
|
apparent show: |
Two rows of 16-bit STN LCD for indication display. Lighting control device with a backlight. |
||
|
memory function: |
It can store 300 million data, and download the stored data containing the time and date. |
||
|
Calibration function: |
The instrument can be calibrated using software or remotely |
||
|
soft piece: |
Dedicated computer software, real-time curve and average export data |
||
|
work environment: |
Temperature: -20~60℃ Humidity: 0-95% RH (no condensation) |
||
|
electricity source: |
DC12V Battery and charger, AC100-240V@DC12V power supply |
||
4. Packing list
Include: portable box, host machine, charger, software CD, cleaning cotton swab, instruction manual, calibration report, ground wire, qualification certificate, warranty card.(Tritripod is optional)
